SV55G-BWSEK (2000)

Toyota Vista/Vista Ardeo

Production Apr 2000 - Apr 2002
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0004-0204)SV5#

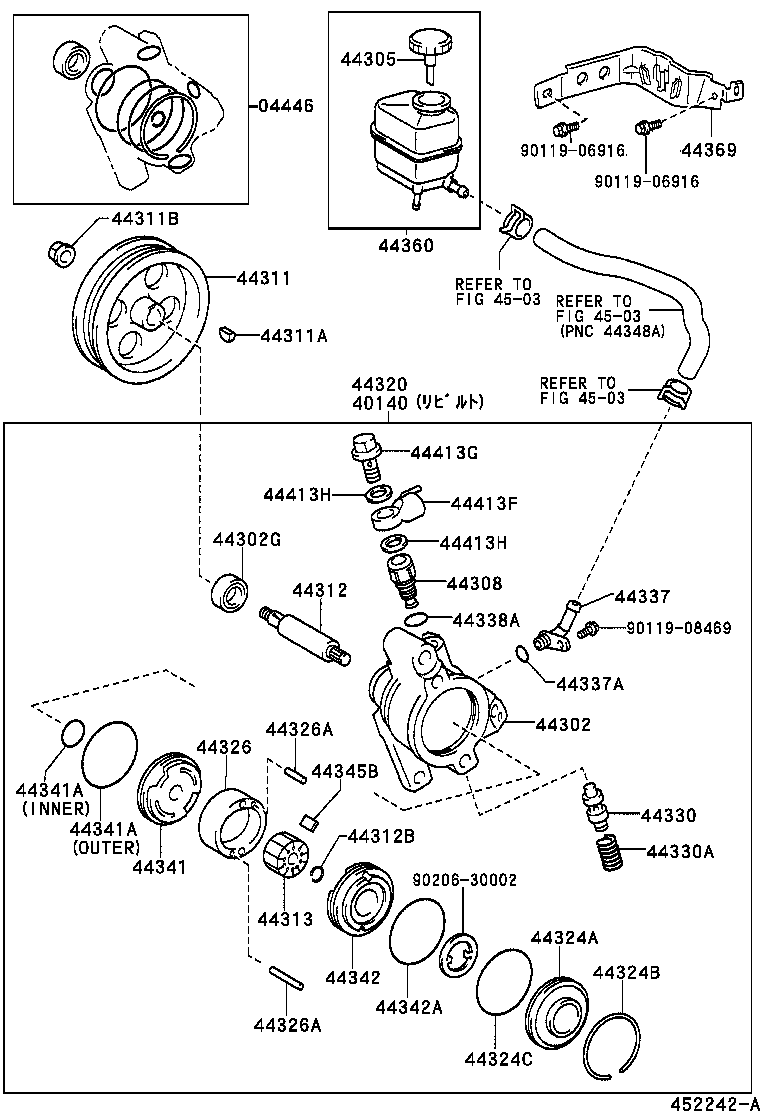

Click highlighted areas on diagram

diagram 04446 40140 44302 44302G 44305 44308 44311 44311A 44311B 44312 44312B 44313 44320 44324A 44324B 44324C 44326 44326A 44326A 44330 44330A 44337 44337A 44338A 44341 44341A 44341A 44342 44342A 44345B 44360 44369 44413F 44413G 44413H 44413H 4503 4503 4503 9011906916 9011906916 9011908469 9020630002
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-32060

SV5#

 1
40140 - PUMP ASSY,VANE REBUILT
40140-32270

SV5#

TOYODA KOKI

 1
44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT
44302-20100

SV5#

 1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90311-18007

SV5#

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-20041

AZV5#,SV5#,ZZV50

 1
44308 - UNION SUB-ASSY, PRESSURE PORT
44308-20020

SV5#

 1
44311 - PULLEY, VANE PUMP
44311-32020

SV5#

 1
44311A - KEY, VANE PUMP PULLEY
90280-05008

SV5#

 1
44311B - NUT(FOR VANE PUMP PULLEY)
90178-12003

SV5#

 1
44312 - SHAFT, VANE PUMP
44312-12030

SV5#

 1
44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
90520-10003

AZV5#,SV5#,ZZV50

 1
44313 - ROTOR, VANE PUMP
44313-22060

SV5#

ﾏｰｸ 2

 1
44313-22080

SV5#

ﾏｰｸ 4

 1
44313-22070

SV5#

ﾏｰｸ 3

 1
44313-22050

SV5#

ﾏｰｸ 1

 1
44313-22040

SV5#

ﾏｰｸ無し

 1
44320 - PUMP ASSY, VANE
44320-32270

SV5#

 1
44324A - HOUSING, PUMP, REAR
44324-12031

SV5#

 1
44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR)
90521-62002

SV5#

 1
44324C - RING, O(FOR PUMP HOUSING REAR)
90301-53006

SV5#

 1
44326 - RING, CAM(FOR VANE PUMP)
44325-12120

SV5#

ﾏｰｸ 1

 1
44325-12110

SV5#

ﾏｰｸ無し

 1
44325-12150

SV5#

ﾏｰｸ 4

 1
44325-12140

SV5#

ﾏｰｸ 3

 1
44325-12130

SV5#

ﾏｰｸ 2

 1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-04047

SV5#

長さ=28,外径=4.0

 1
90250-04049

SV5#

長さ=43,外径=4.0

 1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-04047

SV5#

長さ=28,外径=4.0

 1
90250-04049

SV5#

長さ=43,外径=4.0

 1
44330 - VALVE ASSY, FLOW CONTROL
44330-20130

SV5#

ﾏｰｸ A

 1
44330-20140

SV5#

ﾏｰｸ B

 1
44330-20170

SV5#

ﾏｰｸ E

 1
44330-20150

SV5#

ﾏｰｸ C

 1
44330-20180

SV5#

ﾏｰｸ F

 1
44330-20160

SV5#

ﾏｰｸ D

 1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-12103

AZV5#,SV5#,ZZV50

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-32100

SV5#

 1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90301-11016

SV5#

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-19013

SV5#

内径=19.2,外径=22.3

 1
44341 - PLATE, VANE PUMP SIDE, FRONT
44341-20010

SV5#

 1
44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE)
90301-25008

SV5#

内側

 1
90301-53004

SV5#

外側

 1
44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE)
90301-25008

SV5#

内側

 1
90301-53004

SV5#

外側

 1
44342 - PLATE, VANE PUMP SIDE, REAR
44342-20010

SV5#

 1
44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR)
90301-53004

SV5#

 1
44345B - PLATE, VANE PUMP
44345-12030

SV5#

長さ=14.993

 10
44345-12020

SV5#

長さ=14.995

 10
44345-12040

SV5#

長さ=14.991

 10
44345-12050

SV5#

長さ=14.989

 10
44345-12010

SV5#

長さ=14.997

 10
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-20150

AZV5#,SV5#,ZZV50

 1
44369 - BRACKET, OIL RESERVOIR, NO.1
44390-32010

SV5#,ZZV50

 1
44390-32020

AZV5#,SV5#,ZZV50

 1
44413F - TUBE, PRESSURE FEED, NO.2
44413-12150

SV5#

 1
44413G - BOLT, UNION(FOR PRESSURE FEED TUBE NO.2)
96341-41603

SV5#

 1
44413H - GASKET(FOR PRESSURE FEED TUBE NO.2)
90430-16242

SV5#

 2
44413H - GASKET(FOR PRESSURE FEED TUBE NO.2)
90430-16242

SV5#

 2
Common parts
90119-06916
90119-08469
90206-30002
Linked diagrams
4503
