SV55-BESMK (1998)

Toyota Vista/Vista Ardeo

Production Jun 1998 - Apr 2002
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9806- )SED

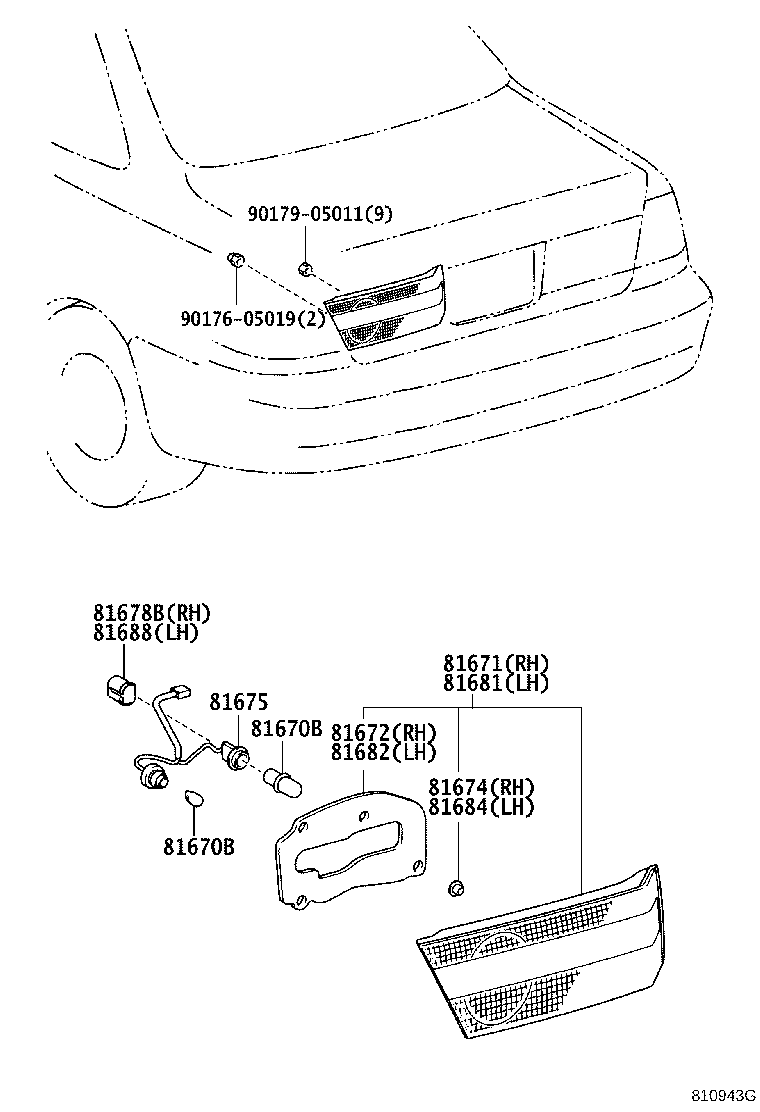

Click highlighted areas on diagram

diagram 81670B 81670B 81671 81672 81674 81675 81678B 81681 81682 81684 81688 9017605019 9017905011
Part # Description Qty Price
81670B - BULB(FOR BACK-UP LAMP)
99132-12050

AZV5#,SV5#,ZZV50

12V 5W

 2
90981-11039

SV5#,ZZV50

12V 16W

 2
90981-11059

AZV5#,SV5#,ZZV50

12V 16W

 2
81670B - BULB(FOR BACK-UP LAMP)
99132-12050

AZV5#,SV5#,ZZV50

12V 5W

 2
90981-11039

SV5#,ZZV50

12V 16W

 2
90981-11059

AZV5#,SV5#,ZZV50

12V 16W

 2
81671 - LENS, BACK-UP LAMP, RH
81671-32140

SV5#,ZZV50..SED

TECS=ｱｸﾃｲﾌﾞ ｽﾎﾟ-ﾂ

 1
81671-32150

AZV5#,SV5#,ZZV50..SED

 1
81671-32130

SV5#,ZZV50..SED

 1
81672 - GASKET, BACK-UP LAMP LENS, RH
81672-32130

AZV5#,SV5#,ZZV50..SED

 1
81674 - GASKET, BACK-UP LAMP BODY, RH
81554-32150

AZV5#,SV5#,ZZV50..SED

 3
81675 - SOCKET & WIRE, BACK-UP LAMP
81675-32130

AZV5#,SV5#,ZZV50..SED

 2
81678B - PROTECTOR, BACK UP LAMP, RH
81678-32130

AZV5#,SV5#,ZZV50..SED

 1
81681 - LENS, BACK-UP LAMP, LH
81681-32130

SV5#,ZZV50..SED

 1
81681-32080

AZV5#,SV5#,ZZV50..SED

 1
81681-32070

SV5#,ZZV50..SED

TECS=ｱｸﾃｲﾌﾞ ｽﾎﾟ-ﾂ

 1
81682 - GASKET, BACK UP LAMP LENS, LH
81672-32130

AZV5#,SV5#,ZZV50..SED

 1
81684 - GASKET, BACK UP LAMP BODY, LH
81554-32150

AZV5#,SV5#,ZZV50..SED

 2
81688 - PROTECTOR, BACK UP LAMP, LH
81678-32130

AZV5#,SV5#,ZZV50..SED

 1
Common parts
90176-05019
90179-05011
