SV55-BESGK (2000)

Toyota Vista/Vista Ardeo

Production Apr 2000 - Apr 2002
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9806-0204)SV55

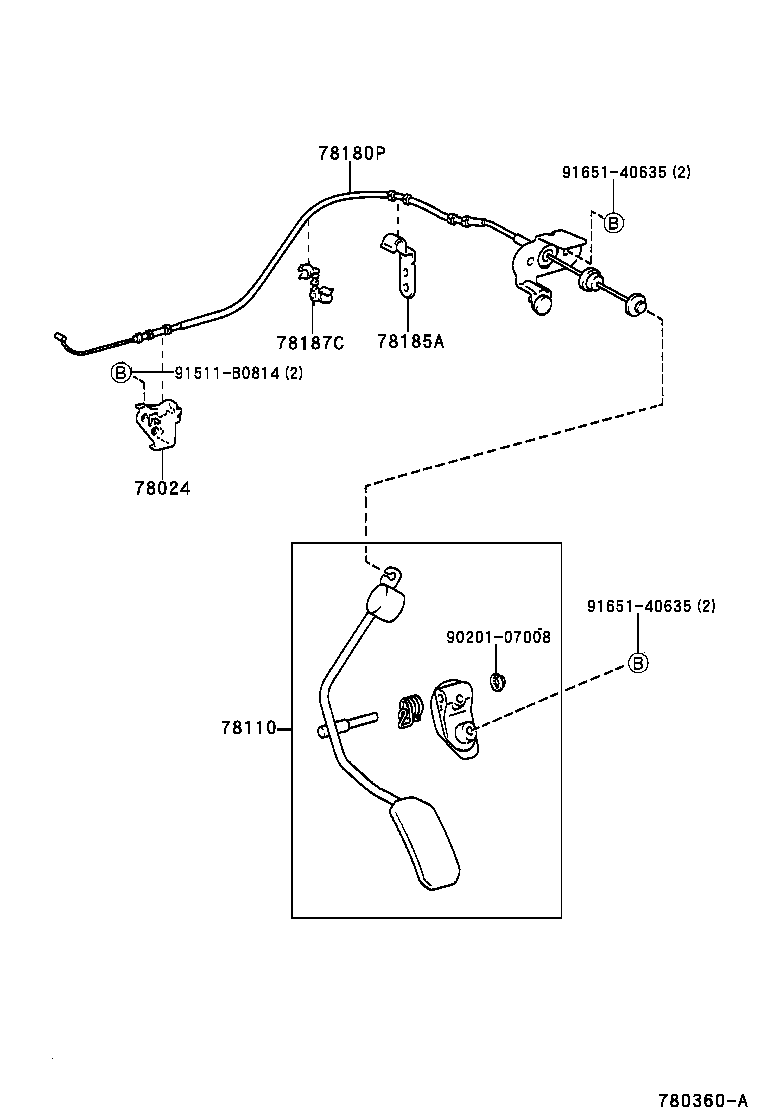

Click highlighted areas on diagram

diagram 78024 78110 78180P 78185A 78187C 9020107008 91511B0814 9165140635 9165140635
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-44020

SV55

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-32160

SV55

 1
78120-32160

SV55,ZZV50

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-32470

SV55

 1
78185A - CLAMP, ACCELERATOR CONTROL CABLE, NO.2
78185-32060

SV5#

 1
78185-32060

SV5#,ZZV50

 1
78187C - CLAMP, ACCELERATOR CONTROL CABLE, NO.4
78187-32020

SV55

 1
Common parts
90201-07008
91511-B0814
91651-40635
