AZV55G-BWSSH (2002)
Toyota Vista/Vista Ardeo
Production
Apr 2002
-
Jul 2003
Engine
1AZFSE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

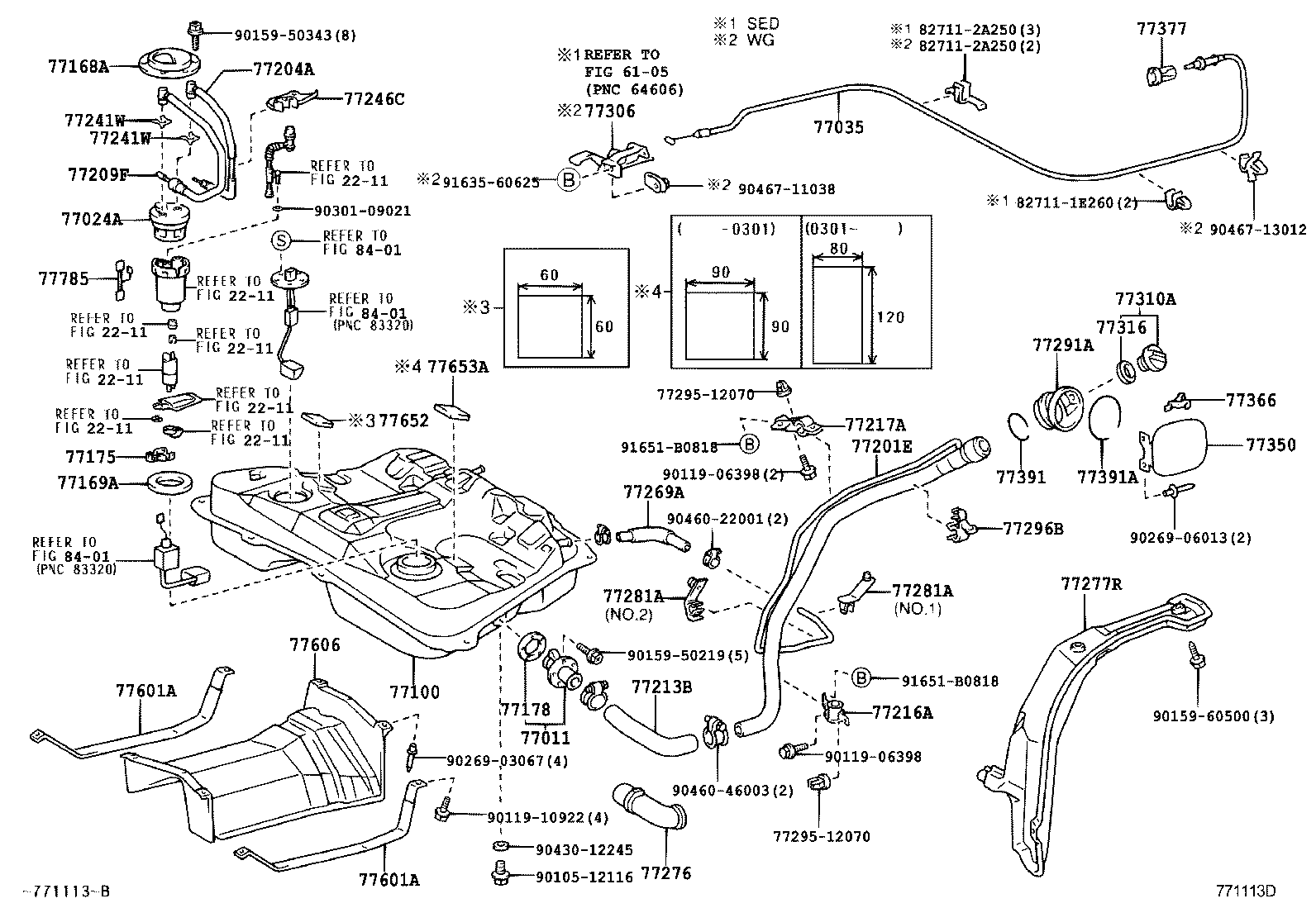

ILLUST NO. 1 OF 2(0204- )AZV55
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-42010 |
AZV55 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-32200 |
AZV5#,SV5#,ZZV50..WG |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-32140 |
AZV55,SV55 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33020 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
AZV55,SV55 |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-21100 |
AZV55 |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-32030 |
AZV55,SV55 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-32060 |
AZV55 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-32050 |
AZV55 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-32060 |
AZV5#,SV50 |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-32060 |
AZV5#,SV50 |
2 | ||
| 77246C - SUPPORT, FUEL MAIN TUBE | ||||
| 77246-21010 |
AZV55 |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-32010 |
AZV55,SV55 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-32060 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-32020 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-21010 |
AZV5#,SV5#,ZZV50..WG |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-48010 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-21010 |
AZV5#,ZZV50 |
1 | ||
| 77360-35010 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-20030 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-32110 |
AZV55,SV55 |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-32110 |
AZV55,SV55 |
2 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-32040 |
AZV55,SV55 |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
AZV55,SV55 |
6 | ||
| 77651-20090 |
AZV55 |
5 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-60060 |
AZV55 |
2 | ||
| 77653-60020 |
AZV55,SV55 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-32010 |
AZV5#,SV5#,ZZV50 |
1 | ||
| Common parts | ||||
| 77295-12070 | ||||
| 82711-1E260 | ||||
| 82711-2A250 | ||||
| 90105-12116 | ||||
| 90119-06398 | ||||
| 90119-10922 | ||||
| 90159-50219 | ||||
| 90159-50343 | ||||
| 90159-60500 | ||||
| 90269-03067 | ||||
| 90269-06013 | ||||
| 90301-09021 | ||||
| 90430-12245 | ||||
| 90460-22001 | ||||
| 90460-46003 | ||||
| 90467-11038 | ||||
| 90467-13012 | ||||
| 91635-60625 | ||||
| 91651-B0818 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 6105 | ||||
| 8401 | ||||

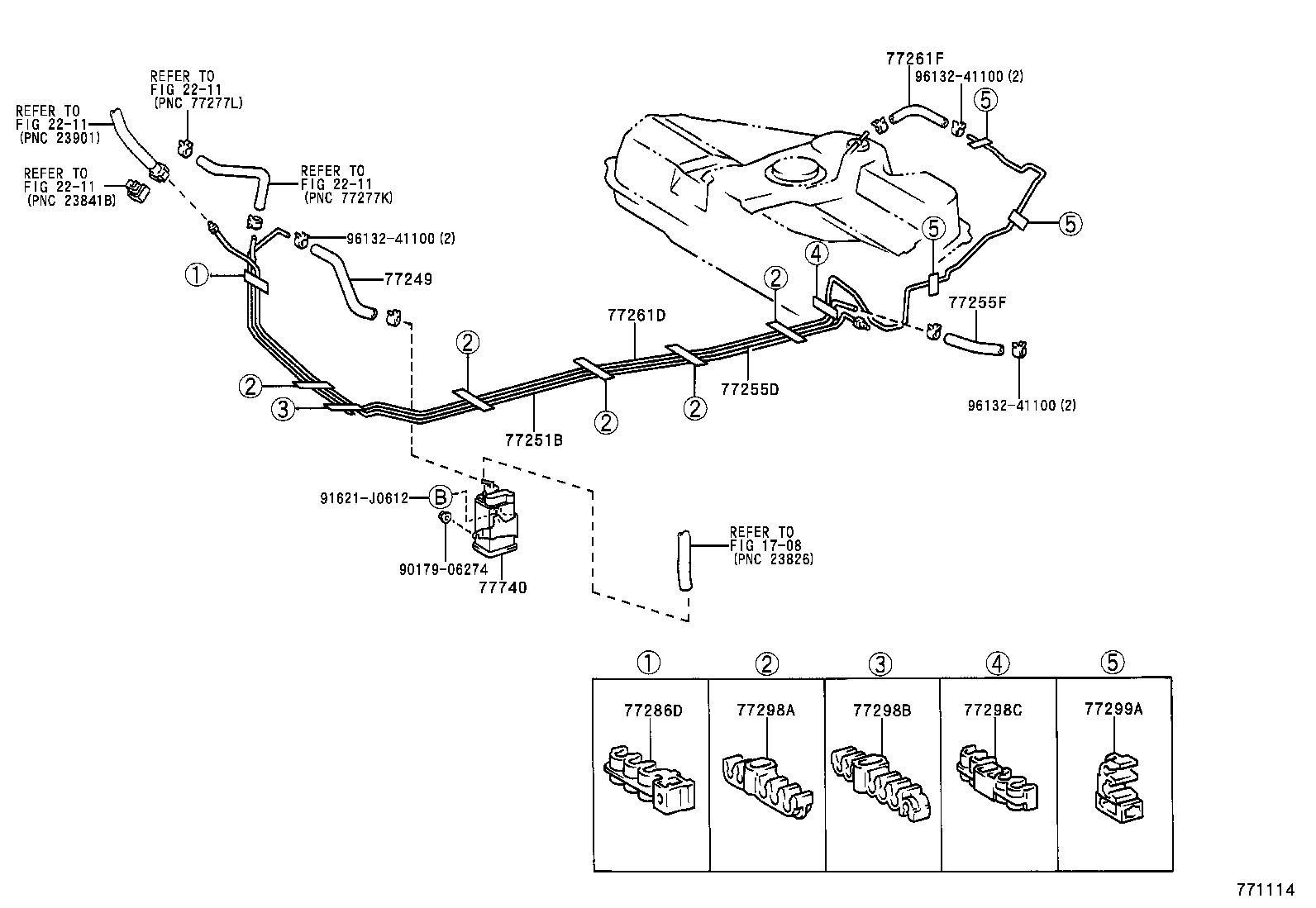

ILLUST NO. 2 OF 2(0204- )AZV55
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-32060 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-32030 |
AZV5#,SV5#,ZZV50 |
5 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-32060 |
AZV55,SV55 |
1 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-32020 |
AZV5#,SV5#,ZZV50 |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 91621-J0612 | ||||
| 96132-41100 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
