AZV55G-BWSSH (2002)

Toyota Vista/Vista Ardeo

Production Apr 2002 - Jul 2003
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0204- )AZV55

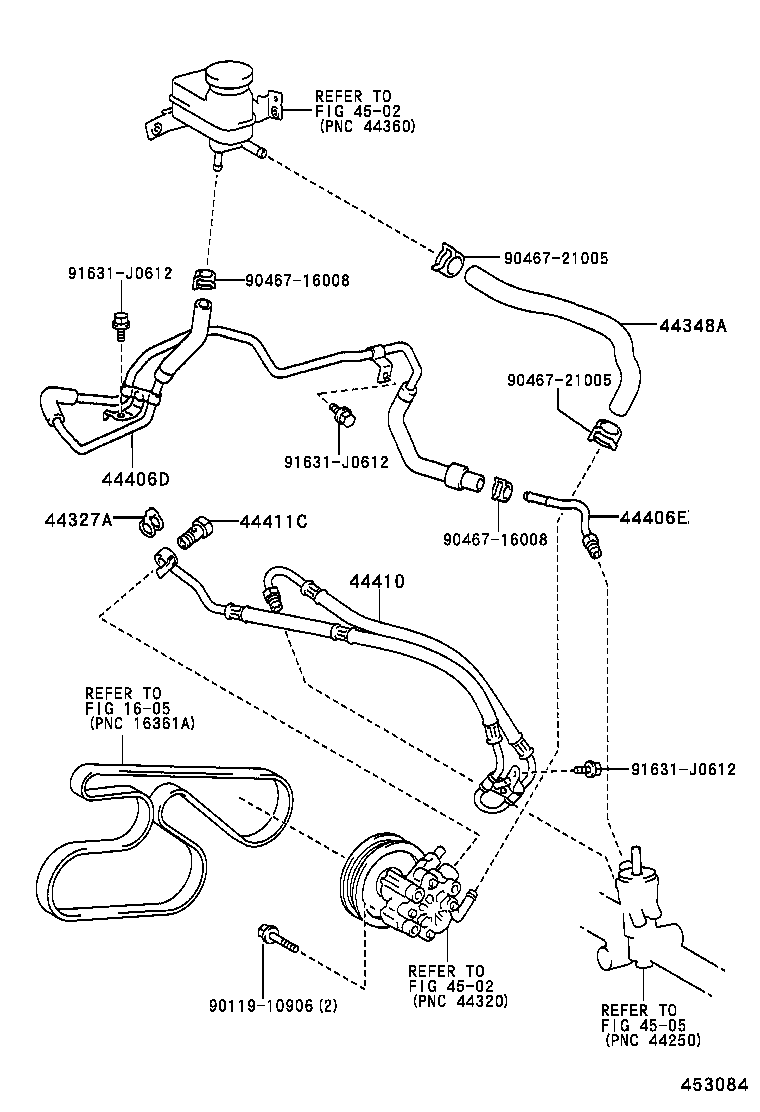

Click highlighted areas on diagram

diagram 1605 44327A 44348A 44406D 44406E 44410 44411C 4502 4502 4505 9011910906 9046716008 9046716008 9046721005 9046721005 91631J0612 91631J0612 91631J0612
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

AZV5#,SV5#

 1
44406E - TUBE SUB-ASSY, RETURN, NO.2
44416-32080

AZV55,SV55

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-32590

AZV55

 1
Common parts
90119-10906
90467-16008
90467-21005
91631-J0612
Linked diagrams
1605
4502
4505
