AZV55G-BWSSH (2002)

Toyota Vista/Vista Ardeo

Production Apr 2002 - Jul 2003
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0204- )AZV5#

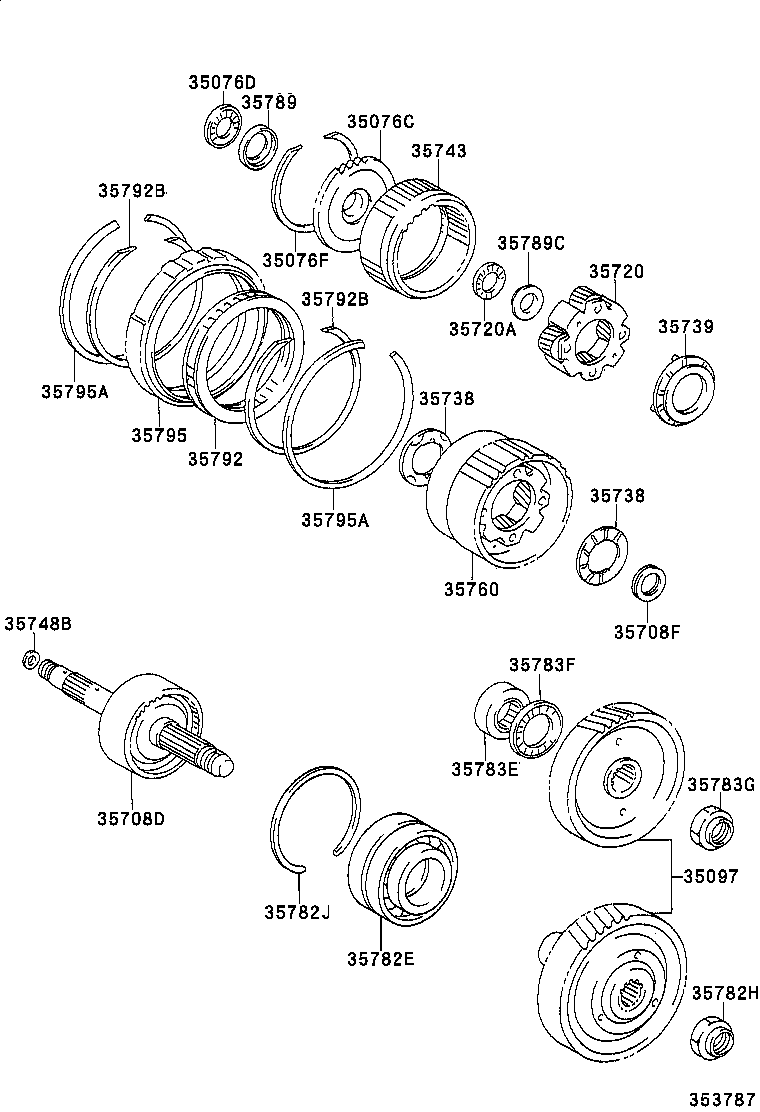

Click highlighted areas on diagram

A248F

diagram 35076C 35076D 35076F 35097 35708D 35708F 35720 35720A 35738 35738 35739 35743 35748B 35760 35782E 35782H 35782J 35783E 35783F 35783G 35789 35789C 35792 35792B 35792B 35795 35795A 35795A
Part # Description Qty Price
35760 - GEAR ASSY, REAR PLANETARY
35760-32030

AZV5#

 1
35782E - BEARING(FOR COUNTER DRIVE GEAR)
90363-40070

AZV5#

 1
35782J - RING, SNAP
90520-75003

AZV5#

 1
