AZV50G-BWSSH (2001)

Toyota Vista/Vista Ardeo

Production Aug 2001 - Jul 2003
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )AZV5#

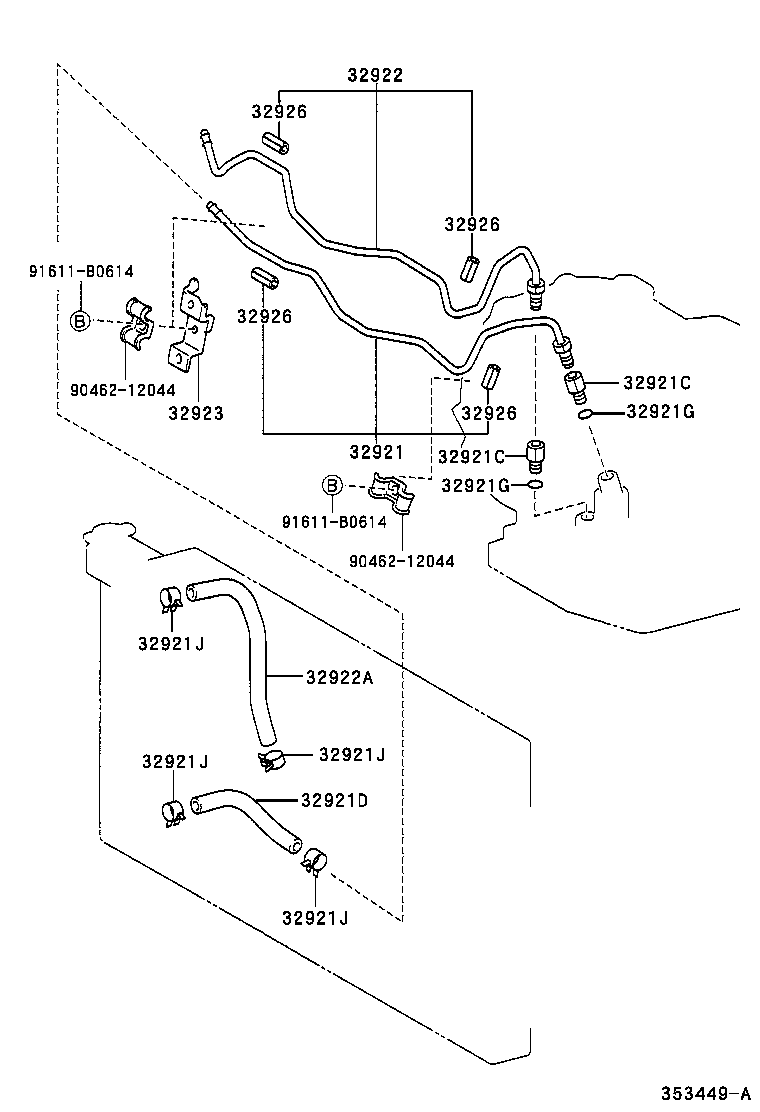

Click highlighted areas on diagram

A247E,A248F

diagram 32921 32921C 32921C 32921D 32921G 32921G 32921J 32921J 32921J 32921J 32922 32922A 32923 32926 32926 32926 32926 9046212044 9046212044 91611B0614 91611B0614
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-32250

AZV5#

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-16032

AZV5#

 2
32921C - UNION(FOR OIL COOLER TUBE)
90404-16032

AZV5#

 2
32921D - HOSE(FOR OIL COOLER INLET)
90445-17117

AZV5#

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

AZV5#

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

AZV5#

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

AZV50,SV5#,ZZV50

 4
90467-16022

AZV5#,ZZV50

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

AZV50,SV5#,ZZV50

 4
90467-16022

AZV5#,ZZV50

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

AZV50,SV5#,ZZV50

 4
90467-16022

AZV5#,ZZV50

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

AZV50,SV5#,ZZV50

 4
90467-16022

AZV5#,ZZV50

 4
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-32180

AZV5#

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
32943-32060

AZV5#

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923-63010

AZV5#

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

AZV5#,SV5#,ZZV50

長さ=35,内径=10

 4
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

AZV5#,SV5#,ZZV50

長さ=35,内径=10

 4
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

AZV5#,SV5#,ZZV50

長さ=35,内径=10

 4
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

AZV5#,SV5#,ZZV50

長さ=35,内径=10

 4
Common parts
90462-12044
91611-B0614
