AZV50G-BWSGH (2001)

Toyota Vista/Vista Ardeo

Production Aug 2001 - Jul 2003
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )1AZFSE

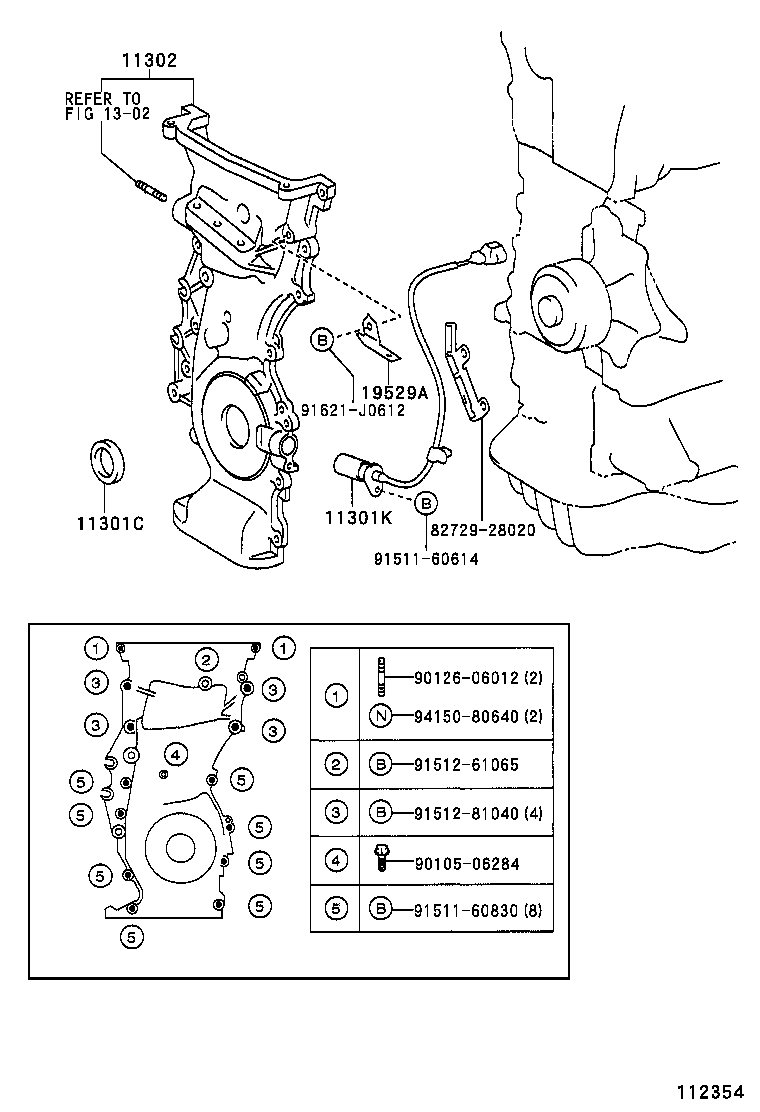

Click highlighted areas on diagram

diagram 11301C 11301K 11302 1302 19529A 8272928020 9010506284 9012606012 9151160614 9151160830 9151261065 9151281040 91621J0612 9415080640
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-38084

1AZFSE..AZV5#

NOK

 1
90311-38089

1AZFSE..AZV5#

 1
90311-38078

1AZFSE..AZV5#

 1
90311-38088

1AZFSE..AZV5#

KOYO

 1
90311-38084

1AZFSE..AZV5#

 1
11301K - SENSOR, CRANK POSITION
90919-05047

1AZFSE..AZV5#

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-28080

1AZFSE..AZV5#

 1
11310-28081

1AZFSE..AZV5#

 1
19529A - CLAMP
19529-28010

1AZFSE..AZV5#

 1
Common parts
82729-28020
90105-06284
90126-06012
91511-60614
91511-60830
91512-61065
91512-81040
91621-J0612
94150-80640
Linked diagrams
1302
