AZV50-BESMH (2001)

Toyota Vista/Vista Ardeo

Production Aug 2001 - Jul 2003
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )AZV5#

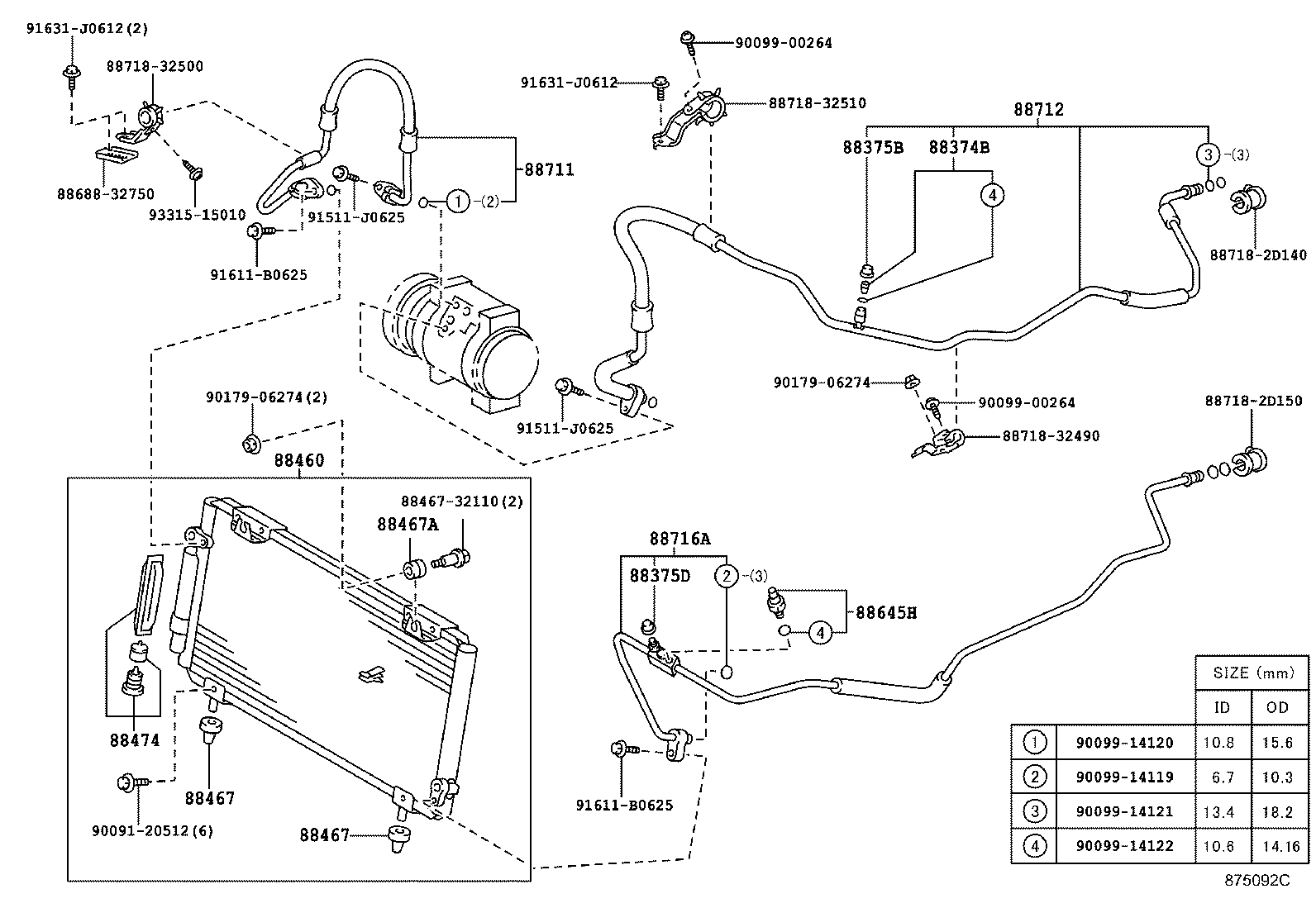

Click highlighted areas on diagram

diagram 88374B 88375B 88375D 88460 88467 88467 8846732110 88467A 88474 88645H 8868832750 88711 88712 88716A 887182D140 887182D150 8871832490 8871832500 8871832510 9009120512 9009900264 9009900264 9009914119 9009914120 9009914121 9009914122 9017906274 9017906274 91511J0625 91511J0625 91611B0625 91611B0625 91631J0612 91631J0612 9331515010
Part # Description Qty Price
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

AZV5#,SV5#,ZZV50

 1
88460 - CONDENSER ASSY, COOLER
88460-32230

AZV5#,SV5#,ZZV50

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-32020

AZV5#,SV5#,ZZV50

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-32020

AZV5#,SV5#,ZZV50

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-16020

AZV5#,SV5#,ZZV50

 2
88474 - DRYER, COOLER
88474-47010

AZV5#,SV5#,ZZV50

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

AZV5#,SV5#,ZZV50

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-32240

AZV5#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-32500

AZV5#

 1
Common parts
88467-32110
88688-32750
88718-2D140
88718-2D150
88718-32490
88718-32500
88718-32510
90091-20512
90099-00264
90099-14119
90099-14120
90099-14121
90099-14122
90179-06274
91511-J0625
91611-B0625
91631-J0612
93315-15010
