AZV50-BESMH (2001)

Toyota Vista/Vista Ardeo

Production Aug 2001 - Jul 2003
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )1AZFSE

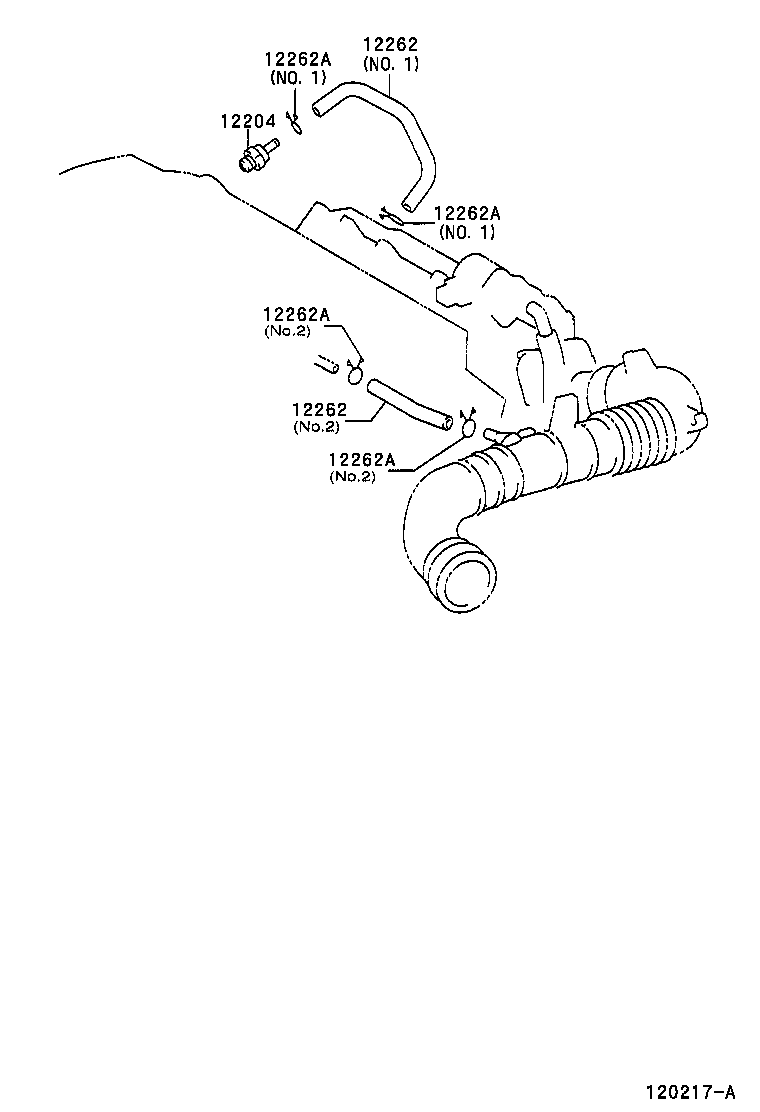

Click highlighted areas on diagram

diagram 12204 12262 12262 12262A 12262A 12262A 12262A
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-28020

1AZFSE..AZV5#

 1
12262 - HOSE, VENTILATION, NO.2
12262-28030

1AZFSE..AZV5#

NO.1

 1
12262-28070

1AZFSE..AZV5#

NO.2

 1
12262 - HOSE, VENTILATION, NO.2
12262-28030

1AZFSE..AZV5#

NO.1

 1
12262-28070

1AZFSE..AZV5#

NO.2

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-13103

1AZFSE..AZV5#

NO.1

 2
90467-19003

1AZFSE..AZV5#

NO.2

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-13103

1AZFSE..AZV5#

NO.1

 2
90467-19003

1AZFSE..AZV5#

NO.2

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-13103

1AZFSE..AZV5#

NO.1

 2
90467-19003

1AZFSE..AZV5#

NO.2

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-13103

1AZFSE..AZV5#

NO.1

 2
90467-19003

1AZFSE..AZV5#

NO.2

 2
