AZV50-BESLH (2001)
Toyota Vista/Vista Ardeo
Production
Aug 2001
-
Jul 2003
Engine
1AZFSE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0108- )1AZFSE

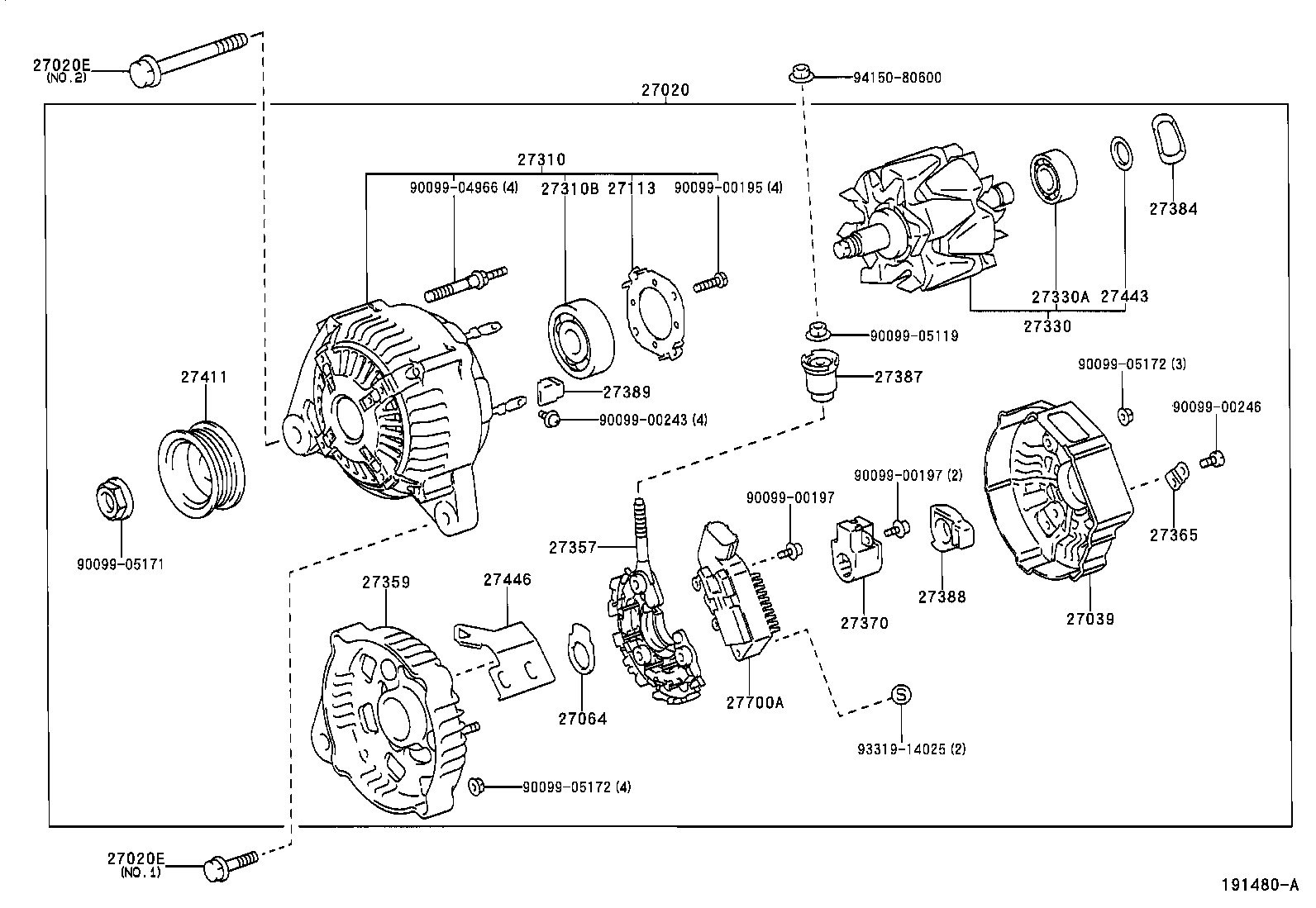

Click highlighted areas on diagram
12V 90A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-28210 |
1AZFSE..AZV5# 12V 90A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 91511-60840 |
1AZFSE..AZV5# NO.1 |
1 | ||
| 91512-81085 |
1AZFSE..AZV5# NO.2 |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 91511-60840 |
1AZFSE..AZV5# NO.1 |
1 | ||
| 91512-81085 |
1AZFSE..AZV5# NO.2 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-21100 |
1AZFSE..AZV5# |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
1AZFSE,3SF#,1ZZFE..AZV5#,SV5#,ZZV50 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-28090 |
1AZFSE..AZV5# |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
1AZFSE,3SF#,1ZZFE..AZV5#,SV5#,ZZV50 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-22070 |
1AZFSE..AZV5# |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-28090 |
1AZFSE..AZV5# |
1 | ||
| 27365 - PLATE, TERMINAL | ||||
| 27365-55080 |
1AZFSE,3SF#,1ZZFE..AZV5#,SV5#,ZZV50 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
1AZFSE,3SF#,1ZZFE..AZV5#,SV5#,ZZV50 |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
1AZFSE,3SF#,1ZZFE..AZV5#,SV5#,ZZV50 |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42021 |
1AZFSE,3SF#,1ZZFE..AZV5#,SV5#,ZZV50 |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
1AZFSE,3SF#,1ZZFE..AZV5#,SV5#,ZZV50 |
1 | ||
| 27389 - INSULATOR, TERMINAL | ||||
| 27389-42010 |
1AZFSE,3SF#,1ZZFE..AZV5#,SV5#,ZZV50 |
4 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-28090 |
1AZFSE..AZV5# |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1AZFSE,3SF#,1ZZFE..AZV5#,SV5#,ZZV50 |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-28060 |
1AZFSE..AZV5# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-21040 |
1AZFSE..AZV5# |
1 | ||
| Common parts | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 93319-14025 | ||||
| 94150-80600 | ||||
