JZX110-BEPVZ (2001)

Toyota Verossa

Production Jun 2001 - Apr 2004
Engine 1JZGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0106- )

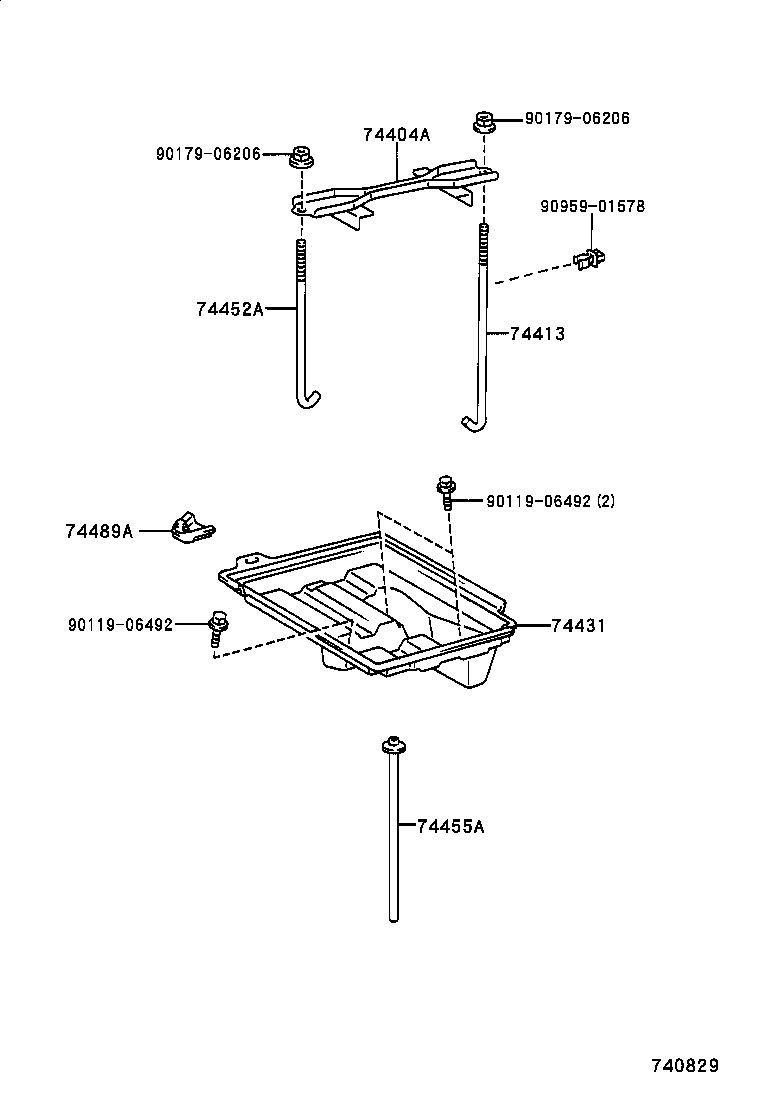

Click highlighted areas on diagram

diagram 74404A 74413 74431 74452A 74455A 74489A 9011906492 9011906492 9017906206 9017906206 9095901578
Part # Description Qty Price
74404A - CLAMP SUB-ASSY, BATTERY
74404-51020

GX11#,JZX110..20,25,V25

ｱﾘ(ﾊﾞﾂﾃﾘ=34B19R OR 46B24R)

 1
74404-30280

GX11#,JZX110

ｱﾘ(ﾊﾞﾂﾃﾘ=55D23R)

 1
74413 - BOLT, BATTERY CLAMP
74451-51010

GX11#,JZX110

 1
74431 - TRAY, BATTERY
74431-51010

GX11#,JZX110

 1
74452A - BOLT, BATTERY CLAMP, NO.2
74452-51010

GX11#,JZX110

 1
74455A - HOSE, BATTERY DRAIN
74455-30020

GX11#,JZX110

 1
74489A - COVER, BATTERY CLAMP
74489-51010

GX11#,JZX110

 1
Common parts
90119-06492
90179-06206
90959-01578
