JZX110-BEMVZ (2001)

Toyota Verossa

Production Jun 2001 - Apr 2004
Engine 1JZGTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0106- )

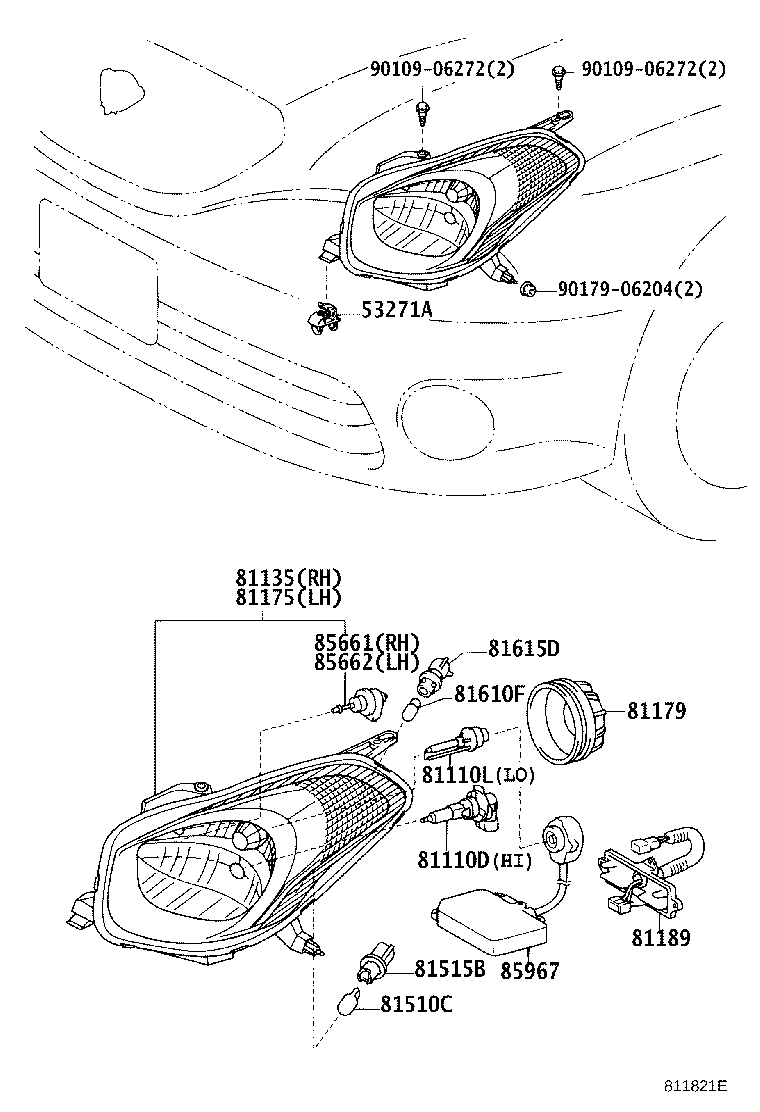

Click highlighted areas on diagram

diagram 53271A 81110D 81110L 81135 81175 81179 81189 81510C 81515B 81610F 81615D 85661 85662 85967 9010906272 9010906272 9017906204
Part # Description Qty Price
53271A - BRACKET, HEADLAMP MOUNTING
53271-44010

GX11#,JZX110

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13074

GX11#,JZX110

12V 60W,ﾊﾛｹﾞﾝ

 2
81110L - BULB, DISCHARGE HEADLAMP
90981-20002

GX11#,JZX110

85V 35W

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-22890

GX11#,JZX110..20,25

ｴｸｼ-ﾄﾞ *(L),ｴｸｼ-ﾄﾞﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(P)

 1
81130-22830

GX11#,JZX110

 1
81130-22831

GX11#,JZX110

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-22831

GX11#,JZX110

 1
81170-22830

GX11#,JZX110

 1
81170-22890

GX11#,JZX110..20,25

ｴｸｼ-ﾄﾞ *(L),ｴｸｼ-ﾄﾞﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(P)

 1
81179 - COVER, HEADLAMP SOCKET
81135-22830

GX11#,JZX110

 2
81189 - COVER, HEADLAMP
81139-22830

GX11#,JZX110

右側

 1
81179-22830

GX11#,JZX110

左側

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15011

GX11#,JZX110

12V 21W,ｱﾝﾊﾞｰ

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028

GX11#,JZX110

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

GX11#,JZX110

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
81138-50220

GX11#,JZX110

 2
85661 - MOTOR, HEADLAMP LEVELING, RH
85661-22020

GX11#,JZX110

 1
85662 - MOTOR, HEADLAMP LEVELING, LH
85661-22020

GX11#,JZX110

 1
85967 - COMPUTER, LIGHT CONTROL
85967-51020

GX11#,JZX110

 2
Common parts
90109-06272
90179-06204
