JZX110-BEMVZ (2001)

Toyota Verossa

Production Jun 2001 - Apr 2004
Engine 1JZGTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0106- )

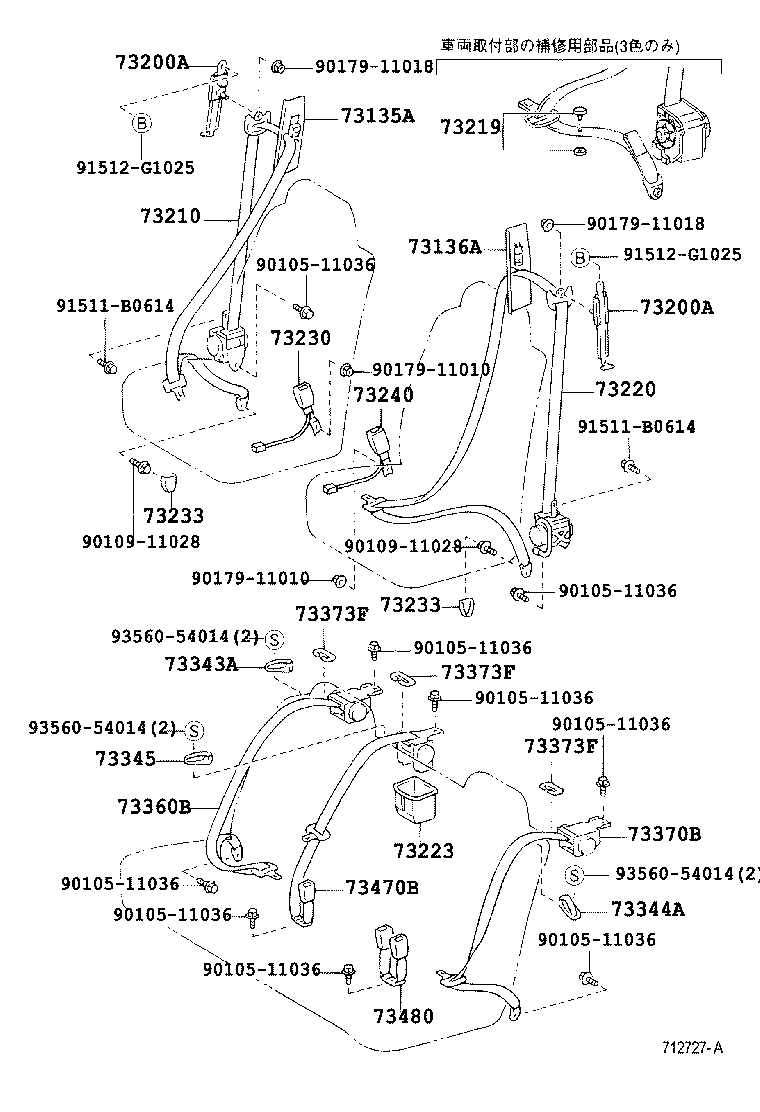

Click highlighted areas on diagram

diagram 73135A 73136A 73200A 73200A 73210 73219 73220 73223 73230 73233 73233 73240 73343A 73344A 73345 73360B 73370B 73373F 73373F 73373F 73470B 73480 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010911028 9010911028 9017911010 9017911010 9017911018 9017911018 91511B0614 91511B0614 91512G1025 91512G1025 9356054014 9356054014 9356054014
Part # Description Qty Price
73135A - COVER, SHOULDER BELT ANCHOR, RH
73023-30010B0

GX11#,JZX110

MD.CHARCOAL,TRIM1#,2#

 1
73136A - COVER, SHOULDER BELT ANCHOR, LH
73024-30010B0

GX11#,JZX110

MD.CHARCOAL,TRIM1#,2#

 1
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-30080

GX11#,JZX110

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-30080

GX11#,JZX110

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-22570B0

GX11#,JZX110

GRAY,TRIM1#

 1
73210-22571B0

GX11#,JZX110

GRAY,TRIM1#

 1
73210-22570C0

GX11#,JZX110

BLACK,TRIM2#

 1
73210-22571C0

GX11#,JZX110

BLACK,TRIM2#

 1
73219 - STOPPER, TONGUE PLATE
73219-33020

GX11#,JZX110

ｸﾞﾚｰ

 1
73219-33010

GX11#,JZX110

ﾌﾞﾗｯｸ

 1
73219-33030

GX11#,JZX110

ﾍﾞｰｼﾞｭ

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-22410B0

GX11#,JZX110

GRAY,TRIM1#

 1
73220-22410C0

GX11#,JZX110

BLACK,TRIM2#

 1
73220-22411C0

GX11#,JZX110

BLACK,TRIM2#

 1
73220-22411B0

GX11#,JZX110

GRAY,TRIM1#

 1
73223 - COVER, SEAT BELT RETRACTOR
73223-22020

GX11#,JZX110

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-22410C0

GX115,JZX110..20,V25,VR25

ｱﾘ(ｳﾝﾃﾝｾｷ ﾊﾟﾜ-ｼ-ﾄ),BLACK,TRIM2#

 1
73230-22420B0

GX11#,JZX110..20,25

MD.CHARCOAL,TRIM1#

 1
73230-22410B0

GX110,JZX110..20,25

ｱﾘ(ｳﾝﾃﾝｾｷ ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1#

 1
73230-22410B0

GX115,JZX110..20,V25,VR25

ｱﾘ(ｳﾝﾃﾝｾｷ ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1#

 1
73230-22420C0

GX11#,JZX110..20,25

BLACK,TRIM2#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-33010B2

GX11#,JZX110

MD.CHARCOAL,TRIM1#

 2
73233-33010C0

GX11#,JZX110

BLACK,TRIM2#

 2
73233 - COVER, LAP BELT OUTER ANCHOR
73233-33010B2

GX11#,JZX110

MD.CHARCOAL,TRIM1#

 2
73233-33010C0

GX11#,JZX110

BLACK,TRIM2#

 2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-22410B0

GX115,JZX110..20,V25,VR25

ｱﾘ(ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1#

 1
73240-22180C0

GX11#,JZX110

BLACK,TRIM2#

 1
73230-22410C0

GX115,JZX110..20,V25,VR25

ｱﾘ(ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ ﾊﾟﾜ-ｼ-ﾄ),BLACK,TRIM2#

 1
73240-22180B0

GX11#,JZX110

MD.CHARCOAL,TRIM1#

 1
73343A - GUIDE, REAR SEAT SHOULDER BELT, RH
73343-30060C0

GX11#,JZX110

BLACK,TRIM2#

 1
73343-30060B1

GX11#,JZX110

MD.CHARCOAL,TRIM1#

 1
73344A - GUIDE, REAR SEAT SHOULDER BELT, LH
73344-30050C0

GX11#,JZX110

BLACK,TRIM2#

 1
73344-30050B1

GX11#,JZX110

MD.CHARCOAL,TRIM1#

 1
73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER
73343-30060B1

GX11#,JZX110

MD.CHARCOAL,TRIM1#

 1
73343-30060C0

GX11#,JZX110

BLACK,TRIM2#

 1
73360B - BELT ASSY, REAR SEAT, OUTER
73360-22350C0

GX11#,JZX110

BLACK,TRIM2#

 1
73360-22350B0

GX11#,JZX110

GRAY,TRIM1#

 1
73370B - BELT ASSY, REAR SEAT, OUTER
73360-22350B0

GX11#,JZX110

GRAY,TRIM1#

 1
73360-22350C0

GX11#,JZX110

BLACK,TRIM2#

 1
73373F - COVER, REAR SEAT SHOULDER BELT HOLE
73373-33010C0

GX11#,JZX110

BLACK,TRIM2#

 3
73373-33010B3

GX11#,JZX110

MD.CHARCOAL,TRIM1#

 3
73373F - COVER, REAR SEAT SHOULDER BELT HOLE
73373-33010C0

GX11#,JZX110

BLACK,TRIM2#

 3
73373-33010B3

GX11#,JZX110

MD.CHARCOAL,TRIM1#

 3
73373F - COVER, REAR SEAT SHOULDER BELT HOLE
73373-33010C0

GX11#,JZX110

BLACK,TRIM2#

 3
73373-33010B3

GX11#,JZX110

MD.CHARCOAL,TRIM1#

 3
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-22010C0

GX11#,JZX110

BLACK,TRIM2#

 1
73470-22010B0

GX11#,JZX110

GRAY,TRIM1#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-22010C0

GX11#,JZX110

BLACK,TRIM2#

 1
73480-22010B0

GX11#,JZX110

GRAY,TRIM1#

 1
Common parts
90105-11036
90109-11028
90179-11010
90179-11018
91511-B0614
91512-G1025
93560-54014
