JZX110-BEMVZ (2001)
Toyota Verossa

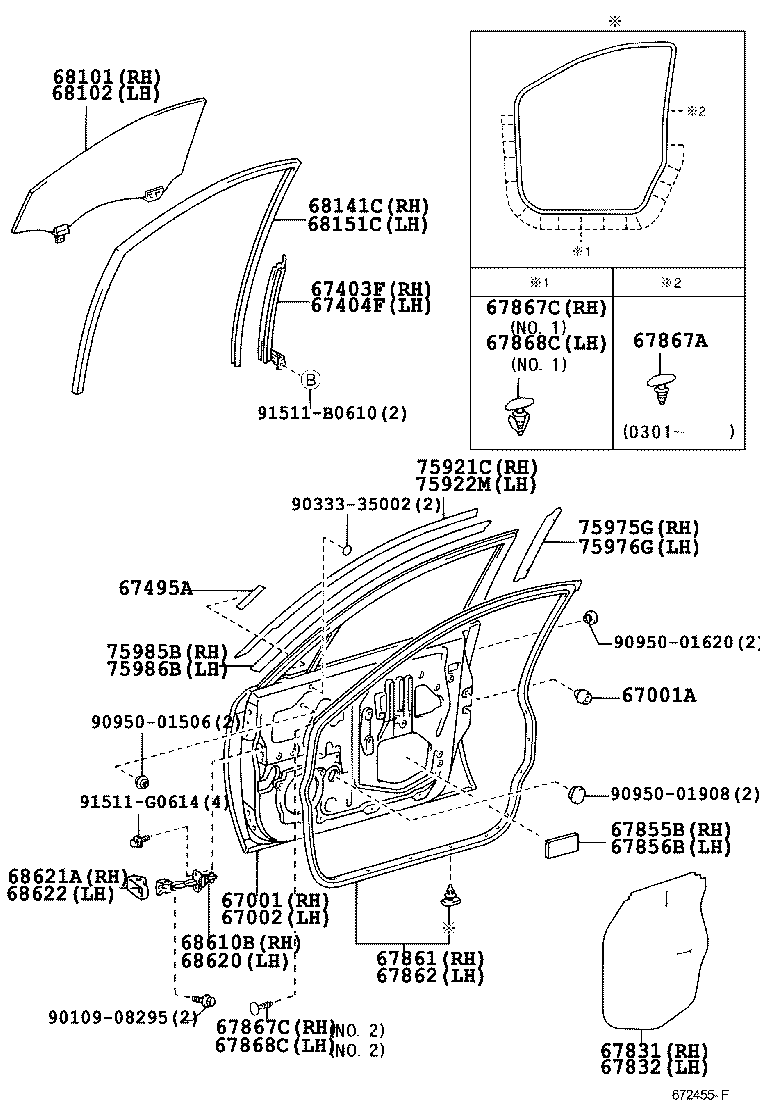

ILLUST NO. 2 OF 3(0106- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-22440 |
GX11#,JZX110 |
1 | ||
| 67001-22450 |
GX11#,JZX110..20,25 ｱﾘ(ｻｲﾄﾞ ﾌﾟﾛﾃｸｼﾖﾝ ﾓ-ﾙﾃﾞｲﾝｸﾞ) |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09069 |
GX11#,JZX110 |
6 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-22450 |
GX11#,JZX110 |
1 | ||
| 67002-22460 |
GX11#,JZX110..20,25 ｱﾘ(ｻｲﾄﾞ ﾌﾟﾛﾃｸｼﾖﾝ ﾓ-ﾙﾃﾞｲﾝｸﾞ) |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-22120 |
GX11#,JZX110 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-22120 |
GX11#,JZX110 |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-22050 |
GX11#,JZX110 |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-22240 |
GX11#,JZX110 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-22160 |
GX11#,JZX110 |
1 | ||
| 67855B - PROTECTOR, FRONT DOOR PANEL, RH | ||||
| 67859-22010 |
GX11#,JZX110 |
1 | ||
| 67856B - PROTECTOR, FRONT DOOR PANEL, LH | ||||
| 67859-22010 |
GX11#,JZX110 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-22311 |
GX11#,JZX110 |
1 | ||
| 67861-22310 |
GX11#,JZX110 |
1 | ||
| 67861-22320 |
GX11#,JZX110 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 67861-22321 |
GX11#,JZX110 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-22320 |
GX11#,JZX110 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 67862-22310 |
GX11#,JZX110 |
1 | ||
| 67862-22321 |
GX11#,JZX110 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 67862-22311 |
GX11#,JZX110 |
1 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67867-48010 |
GX11#,JZX110 |
2 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67869-20030 |
GX11#,JZX110 NO.2 |
1 | ||
| 67867-12150 |
GX11#,JZX110 NO.1 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67869-20030 |
GX11#,JZX110 NO.2 |
1 | ||
| 67867-12150 |
GX11#,JZX110 NO.1 |
1 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
GX11#,JZX110 NO.1 |
1 | ||
| 67869-20030 |
GX11#,JZX110 NO.2 |
1 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
GX11#,JZX110 NO.1 |
1 | ||
| 67869-20030 |
GX11#,JZX110 NO.2 |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-22410 |
GX11#,JZX110..20,25 *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68101-22420 |
GX11#,JZX110..20,V25,VR25 *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ,ｱﾘ(ﾊﾂｽｲ ｶｺｳ) |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-22410 |
GX11#,JZX110..20,25 *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102-22420 |
GX11#,JZX110..20,V25,VR25 *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ,ｱﾘ(ﾊﾂｽｲ ｶｺｳ) |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-22261 |
GX11#,JZX110 |
1 | ||
| 68141-22260 |
GX11#,JZX110 |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-22210 |
GX11#,JZX110 |
1 | ||
| 68151-22211 |
GX11#,JZX110 |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-22140 |
GX11#,JZX110 |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-22080 |
GX11#,JZX110 |
1 | ||
| 68621A - COVER, FRONT DOOR CHECK, RH | ||||
| 68621-22040 |
GX11#,JZX110 |
1 | ||
| 68622 - COVER, FRONT DOOR CHECK, LH | ||||
| 68622-22040 |
GX11#,JZX110 |
1 | ||
| 75921C - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-22020 |
GX11#,JZX110 |
1 | ||
| 75922M - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-22030 |
GX11#,JZX110 |
1 | ||
| 75975G - STRIPE, FRONT DOOR, NO.2 RH | ||||
| 75975-22020 |
GX11#,JZX110 |
1 | ||
| 75976G - STRIPE, FRONT DOOR, NO.2 LH | ||||
| 75976-22020 |
GX11#,JZX110 |
1 | ||
| 75985B - STRIPE, FRONT DOOR, NO.3 RH | ||||
| 75985-22070 |
GX11#,JZX110 |
1 | ||
| 75986B - STRIPE, FRONT DOOR, NO.3 LH | ||||
| 75986-22060 |
GX11#,JZX110 |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90333-35002 | ||||
| 90950-01506 | ||||
| 90950-01620 | ||||
| 90950-01908 | ||||
| 91511-B0610 | ||||
| 91511-G0614 | ||||

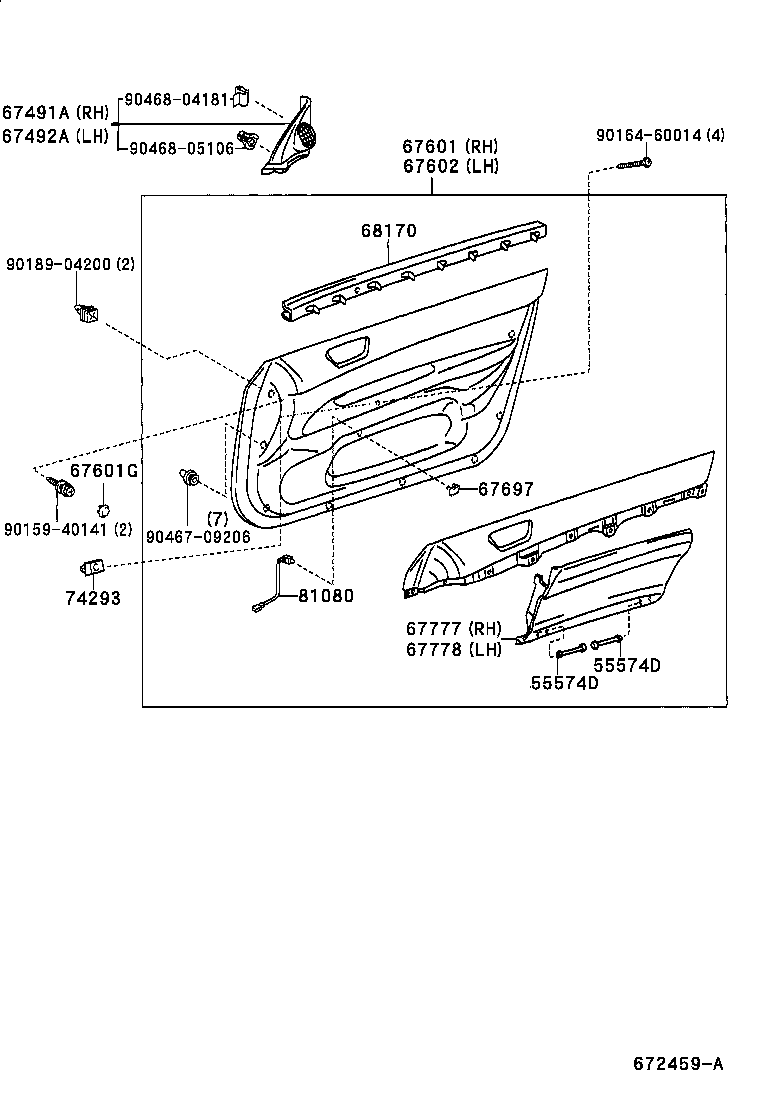

ILLUST NO. 1 OF 3(0106- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55574D - SHAFT(FOR FRONT DOOR TRIM BOARD) | ||||
| 55574-10010 |
GX11#,JZX110 |
4 | ||
| 55574D - SHAFT(FOR FRONT DOOR TRIM BOARD) | ||||
| 55574-10010 |
GX11#,JZX110 |
4 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-22150 |
GX11#,JZX110 |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-22150 |
GX11#,JZX110 |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-2C360B0 |
GX11#,JZX110..20,25 ﾄﾞｱﾄﾘﾑ=TYPE B-*104,MEDIUM CHARCORL,TRIM1# |
1 | ||
| 67610-2C370C0 |
GX115,JZX110..20,V25,VR25 ﾄﾞｱﾄﾘﾑ=TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 67610-2C510B0 |
GX11#,JZX110..20,25 ﾄﾞｱﾄﾘﾑ=TYPE D-*104,MD.CHACOAL,TRIM1# |
1 | ||
| 67610-2C360C0 |
GX11#,JZX110..20,25 ﾄﾞｱﾄﾘﾑ=TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 67610-2C380C1 |
GX115,JZX110..20,V25,VR25 ﾄﾞｱﾄﾘﾑ=TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 67610-2C370B0 |
GX115,JZX110..20,V25,VR25 ﾄﾞｱﾄﾘﾑ=TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) | ||||
| 90950-01800C0 |
GX11#,JZX110 BLACK,TRIM1#,2# |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2V260C0 |
GX11#,JZX110..20,25 ﾄﾞｱﾄﾘﾑ=TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 67620-2V260B0 |
GX11#,JZX110..20,25 ﾄﾞｱﾄﾘﾑ=TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 67620-2V270B0 |
GX115,JZX110..20,V25,VR25 ﾄﾞｱﾄﾘﾑ=TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 67620-2V280C1 |
GX115,JZX110..20,V25,VR25 ﾄﾞｱﾄﾘﾑ=TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 67620-2V270C0 |
GX115,JZX110..20,V25,VR25 ﾄﾞｱﾄﾘﾑ=TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 67660-22230B0 |
GX11#,JZX110..20,25 ﾄﾞｱﾄﾘﾑ=TYPE D-*104,MEDIUM CHACOAL,TRIM1# |
1 | ||
| 67697 - COVER, FRONT DOOR TRIM POCKET | ||||
| 67698-22190B0 |
GX11#,JZX110..20,25 ﾄﾞｱﾄﾘﾑ=TYPE B OR TYPE D-*104,MD.CHARCOAL,TRIM1#,左側 |
1 | ||
| 67697-22240C0 |
GX11#,JZX110..20,25 ﾄﾞｱﾄﾘﾑ=TYPE B-*104,BLACK,TRIM2#,右側 |
1 | ||
| 67697-22250C0 |
GX115,JZX110..20,V25,VR25 ﾄﾞｱﾄﾘﾑ=TYPE A OR TYPE C-*104,BLACK,TRIM2#,右側 |
1 | ||
| 67697-22240B0 |
GX11#,JZX110..20,25 ﾄﾞｱﾄﾘﾑ=TYPE B OR TYPE D-*104,MD.CHARCOAL,TRIM1#,右側 |
1 | ||
| 67698-22240B0 |
GX115,JZX110..20,V25,VR25 ﾄﾞｱﾄﾘﾑ=TYPE A OR TYPE C-*104,MD.CHARCOAL,TRIM1#,左側 |
1 | ||
| 67698-22240C0 |
GX115,JZX110..20,V25,VR25 ﾄﾞｱﾄﾘﾑ=TYPE A OR TYPE C-*104,BLACK,TRIM2#,左側 |
1 | ||
| 67698-22190C0 |
GX11#,JZX110..20,25 ﾄﾞｱﾄﾘﾑ=TYPE B-*104,BLACK,TRIM2#,左側 |
1 | ||
| 67697-22250B0 |
GX115,JZX110..20,V25,VR25 ﾄﾞｱﾄﾘﾑ=TYPE A OR TYPE C-*104,MD.CHARCOAL,TRIM1#,右側 |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-22160C0 |
GX11#,JZX110 BLACK,TRIM2# |
1 | ||
| 67777-22160B0 |
GX11#,JZX110 MD.CHARCOAL,TRIM1# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67778-22160B0 |
GX11#,JZX110 MD.CHARCOAL,TRIM1# |
1 | ||
| 67778-22160C0 |
GX11#,JZX110 BLACK,TRIM2# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-22020 |
GX11#,JZX110 左側 |
1 | ||
| 68171-22040 |
GX11#,JZX110 右側 |
1 | ||
| 68171-22041 |
GX11#,JZX110 右側 |
1 | ||
| 68172-22021 |
GX11#,JZX110 左側 |
1 | ||
| 74293 - PLATE, FRONT DOOR ARMREST, NO.1 | ||||
| 74294-32010 |
GX11#,JZX110 |
4 | ||
| 81080 - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 | ||||
| 81090-50010 |
GX115,JZX110..20,V25,VR25 |
2 | ||
| Common parts | ||||
| 90159-40141 | ||||
| 90164-60014 | ||||
| 90189-04200 | ||||
| 90467-09206 | ||||
| 90468-04181 | ||||
| 90468-05106 | ||||

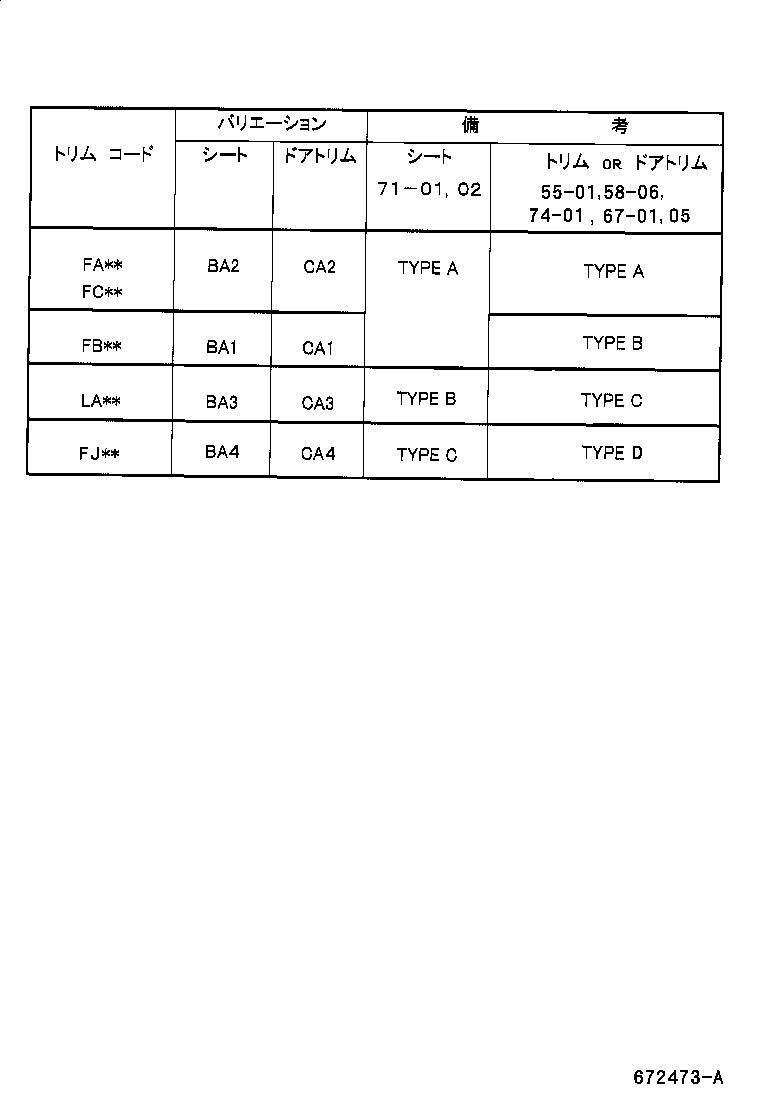

ILLUST NO. 3 OF 3(0106- )
ﾄﾘﾑｺ-ﾄﾞ
| Part # | Description | Qty | Price |
|---|
