JZX110-BEMVZ (2001)
Toyota Verossa

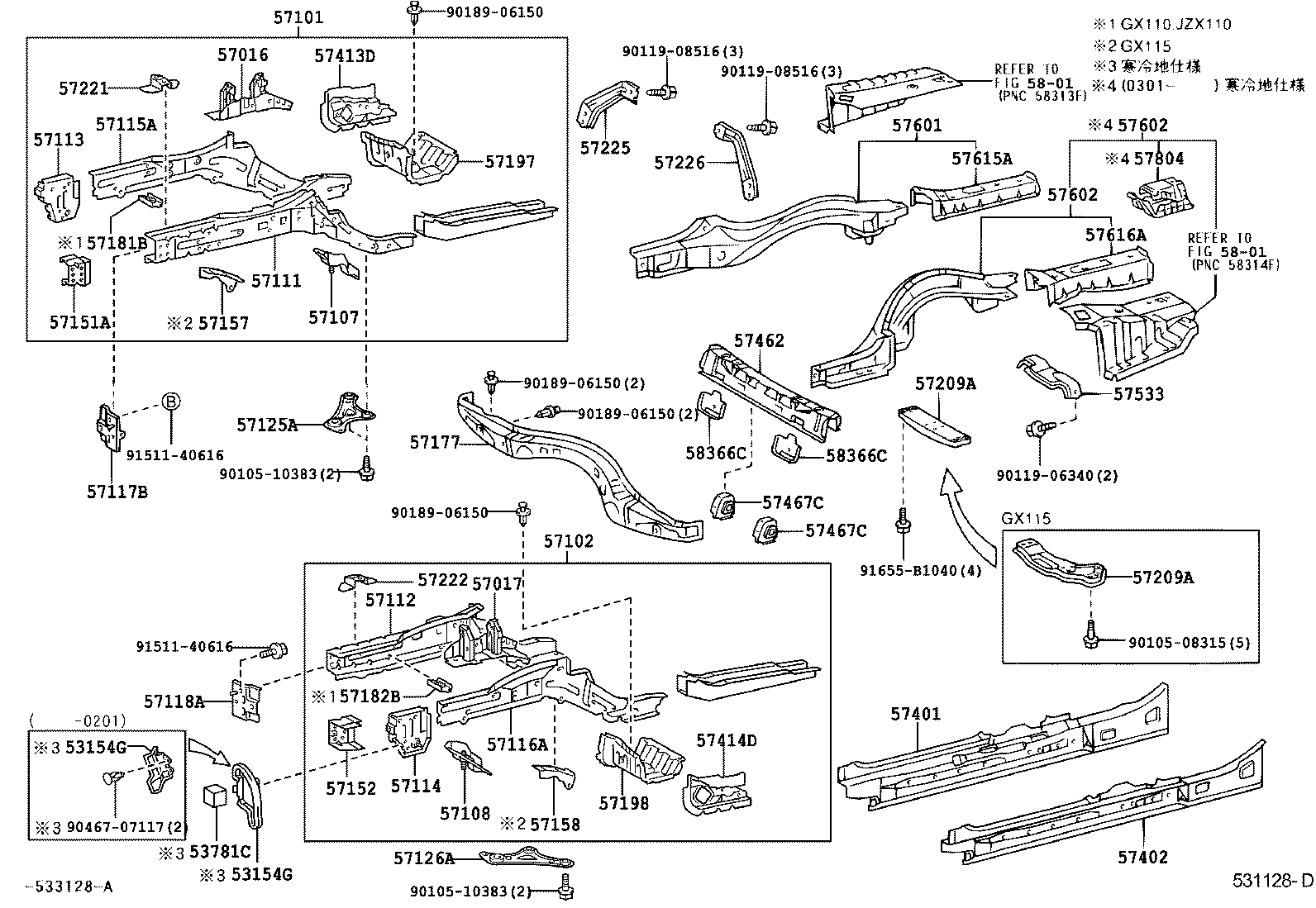

ILLUST NO. 1 OF 2(0106- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53154G - GUIDE, RADIATOR GRILLE SIDE AIR, LH | ||||
| 53154-22050 |
GX11#,JZX110 |
1 | ||
| 53154-22030 |
GX11#,JZX110 |
1 | ||
| 53154G - GUIDE, RADIATOR GRILLE SIDE AIR, LH | ||||
| 53154-22050 |
GX11#,JZX110 |
1 | ||
| 53154-22030 |
GX11#,JZX110 |
1 | ||
| 53781C - SEAL, FRONT FENDER APRON, LOWER | ||||
| 53781-22020 |
GX11#,JZX110 |
1 | ||
| 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57016-51010 |
GX110,JZX110 |
1 | ||
| 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57017-51010 |
GX110,JZX110 |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-22400 |
GX110,JZX110 |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-22440 |
GX110,JZX110 |
1 | ||
| 57107 - BRACKET SUB-ASSY, STRUT BAR, RH | ||||
| 57107-51010 |
GX110,JZX110 |
1 | ||
| 57108 - BRACKET SUB-ASSY, STRUT BAR, LH | ||||
| 57108-51010 |
GX110,JZX110 |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-51010 |
GX110,JZX110 |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-51010 |
GX110,JZX110 |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-30041 |
GX11#,JZX110 製造工場NO.A21−A26 |
1 | ||
| 57113-22100 |
GX11#,JZX110 製造工場NO.M31 |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-22100 |
GX11#,JZX110 製造工場NO.M31 |
1 | ||
| 57114-30031 |
GX11#,JZX110 製造工場NO.A21−A26 |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-51010 |
GX11#,JZX110 |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-51010 |
GX11#,JZX110 |
1 | ||
| 57117B - REINFORCEMENT, FRONT BUMPER MOUNTING, RH | ||||
| 57117-30030 |
GX11#,JZX110 |
1 | ||
| 57118A - REINFORCEMENT, FRONT BUMPER MOUNTING, LH | ||||
| 57118-30030 |
GX11#,JZX110 |
1 | ||
| 57125A - PLATE, STRUT BAR BRACKET, RH | ||||
| 57125-51010 |
GX110,JZX110..20,25 |
1 | ||
| 57126A - PLATE, STRUT BAR BRACKET, LH | ||||
| 57126-51010 |
GX110,JZX110..20,25 |
1 | ||
| 57151A - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH | ||||
| 57151-30021 |
GX11#,JZX110 |
1 | ||
| 57152 - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH | ||||
| 57152-30021 |
GX11#,JZX110 |
1 | ||
| 57177 - CROSSMEMBER, FRONT SIDE MEMBER TO DASH PANEL | ||||
| 57103-51010 |
GX11#,JZX110 |
1 | ||
| 57181B - PLATE, FRONT SIDE MEMBER, NO.3 RH | ||||
| 57181-53010 |
GX110,JZX110 |
1 | ||
| 57182B - PLATE, FRONT SIDE MEMBER, NO.3 LH | ||||
| 57181-53010 |
GX110,JZX110 |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57197-51010 |
GX11#,JZX110 |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57198-51010 |
GX11#,JZX110 |
1 | ||
| 57209A - MEMBER SUB-ASSY, ENGINE REAR MOUNTING | ||||
| 57255-30110 |
GX110,JZX110 |
1 | ||
| 57209A - MEMBER SUB-ASSY, ENGINE REAR MOUNTING | ||||
| 57255-30110 |
GX110,JZX110 |
1 | ||
| 57221 - BRACKET, FRONT SIDE MEMBER, RH | ||||
| 57221-30040 |
GX11#,JZX110 |
1 | ||
| 57222 - BRACKET, FRONT SIDE MEMBER, LH | ||||
| 57221-30040 |
GX11#,JZX110 |
1 | ||
| 57225 - BRACE, FRONT MOUNTING BRACKET, RH | ||||
| 57225-30020 |
GX11#,JZX110 |
1 | ||
| 57226 - BRACE, FRONT MOUNTING BRACKET, LH | ||||
| 57226-30021 |
GX11#,JZX110 |
1 | ||
| 57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | ||||
| 57401-22211 |
GX11#,JZX110 |
1 | ||
| 57401-22210 |
GX11#,JZX110 |
1 | ||
| 57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57402-22210 |
GX11#,JZX110 |
1 | ||
| 57402-22211 |
GX11#,JZX110 |
1 | ||
| 57413D - EXTENSION, FLOOR SIDE, INNER RH | ||||
| 57413-22040 |
GX11#,JZX110 |
1 | ||
| 57414D - EXTENSION, FLOOR SIDE, INNER LH | ||||
| 57414-22040 |
GX11#,JZX110 |
1 | ||
| 57462 - MEMBER, CENTER FLOOR CROSS, NO.2 | ||||
| 57462-51010 |
GX11#,JZX110 |
1 | ||
| 57467C - STIFFENER, CENTER FLOOR CROSS MEMBER | ||||
| 57467-30060 |
GX11#,JZX110 |
2 | ||
| 57467C - STIFFENER, CENTER FLOOR CROSS MEMBER | ||||
| 57467-30060 |
GX11#,JZX110 |
2 | ||
| 57533 - BRACE, FRONT FLOOR, CENTER | ||||
| 57533-51010 |
GX110,JZX110..20,VR25 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-22918 |
GX11#,JZX110 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-22912 |
GX11#,JZX110 |
1 | ||
| 57602-22913 |
GX11#,JZX110 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-22912 |
GX11#,JZX110 |
1 | ||
| 57602-22913 |
GX11#,JZX110 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-22908 |
GX11#,JZX110 |
1 | ||
| 57616A - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-22907 |
GX11#,JZX110 |
1 | ||
| 57804 - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH | ||||
| 57804-22120 |
GX11#,JZX110 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 58366C - REINFORCEMENT, FUEL TANK SUPPORT, REAR | ||||
| 58366-30050 |
GX11#,JZX110 |
2 | ||
| 58366C - REINFORCEMENT, FUEL TANK SUPPORT, REAR | ||||
| 58366-30050 |
GX11#,JZX110 |
2 | ||
| Common parts | ||||
| 90105-08315 | ||||
| 90105-10383 | ||||
| 90119-06340 | ||||
| 90119-08516 | ||||
| 90189-06150 | ||||
| 90467-07117 | ||||
| 91511-40616 | ||||
| 91655-B1040 | ||||
| Linked diagrams | ||||
| 5801 | ||||

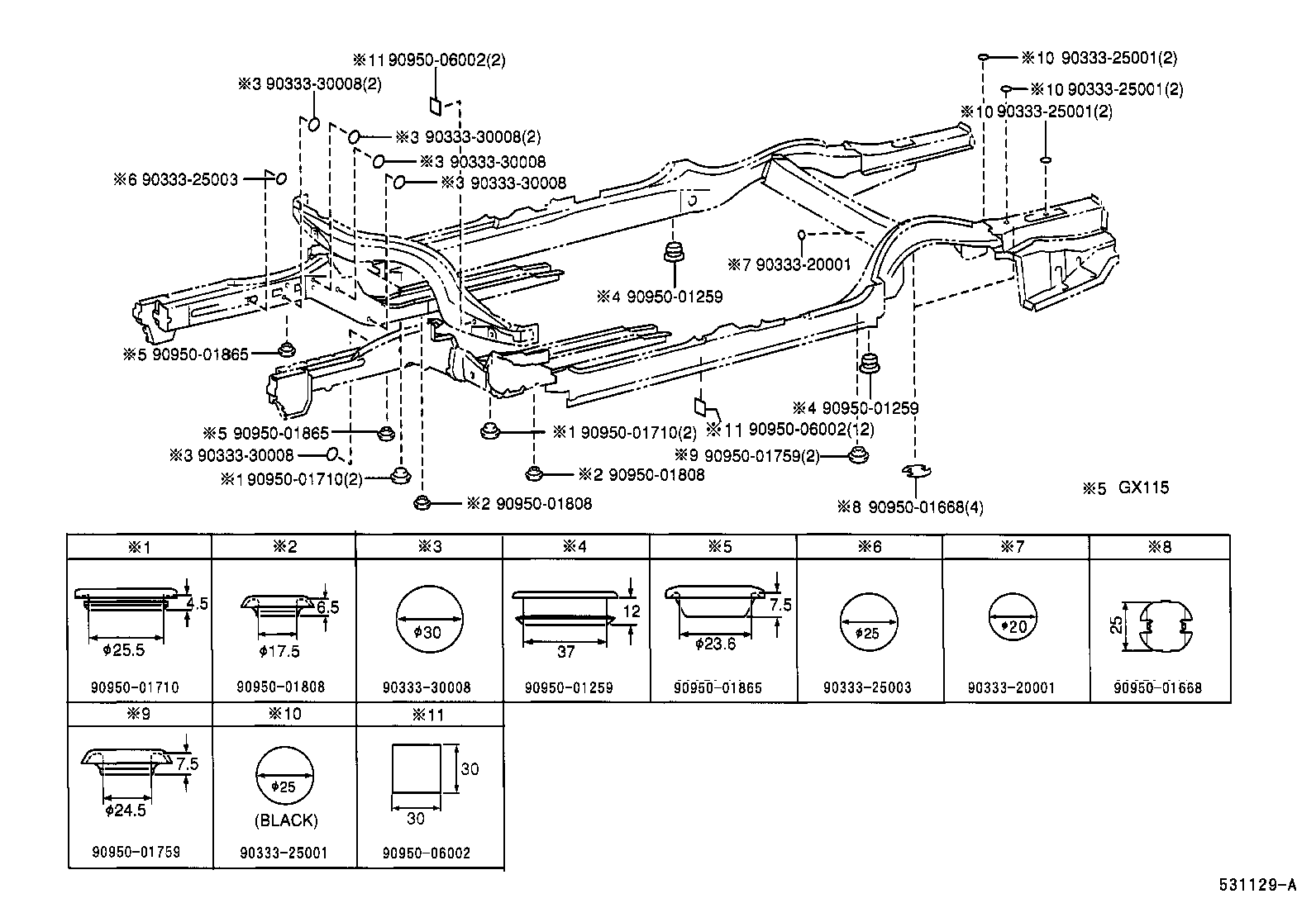

ILLUST NO. 2 OF 2(0106- )
ﾌﾟﾗｸﾞﾎ-ﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90333-25003 | ||||
| 90333-30008 | ||||
| 90950-01259 | ||||
| 90950-01668 | ||||
| 90950-01710 | ||||
| 90950-01759 | ||||
| 90950-01808 | ||||
| 90950-01865 | ||||
| 90950-06002 | ||||
