JZX110-BEMVZ (2001)

Toyota Verossa

Production Jun 2001 - Apr 2004
Engine 1JZGTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0106- )5F

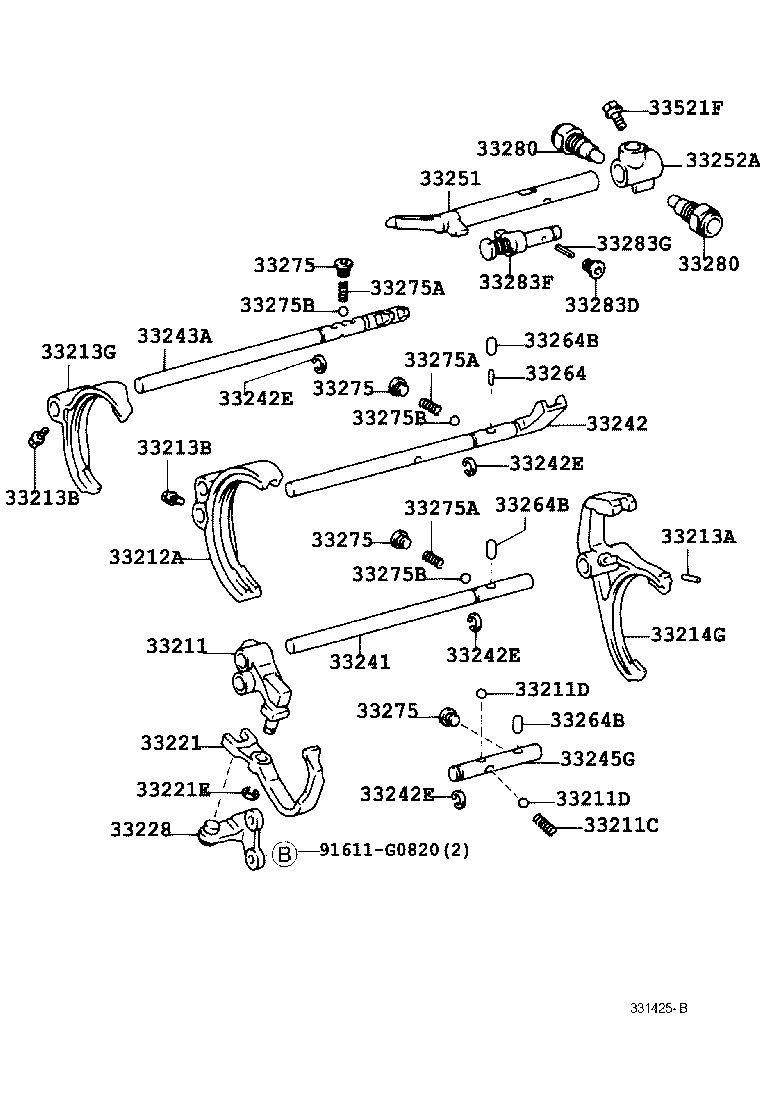

Click highlighted areas on diagram

R154

diagram 33211 33211C 33211D 33211D 33212A 33213A 33213B 33213B 33213G 33214G 33221 33221E 33228 33241 33242 33242E 33242E 33242E 33242E 33243A 33245G 33251 33252A 33264 33264B 33264B 33264B 33275 33275 33275 33275 33275A 33275A 33275A 33275B 33275B 33275B 33280 33280 33283D 33283F 33283G 33521F 91611G0820
Part # Description Qty Price
33211 - FORK, REVERSE SHIFT
33211-35050

JZX110..5F

 1
33211C - SPRING, COMPRESSION(FOR REVERSE SHIFT FORK RETURN)
90501-12166

JZX110..5F

 1
33211D - BALL(FOR REVERSE SHIFT FORK)
90360-10003

JZX110..5F

外径=9.52,ｽﾁｰﾙ

 2
33211D - BALL(FOR REVERSE SHIFT FORK)
90360-10003

JZX110..5F

外径=9.52,ｽﾁｰﾙ

 2
33212A - FORK, GEAR SHIFT, NO.1
33212-35032

JZX110..5F

 1
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05016

JZX110..5F

 1
33213B - BOLT(FOR SHIFT FORK SET)
90105-06077

JZX110..5F

 2
33213B - BOLT(FOR SHIFT FORK SET)
90105-06077

JZX110..5F

 2
33213G - FORK, GEAR SHIFT, NO.2
33213-35040

JZX110..5F

 1
33214G - FORK, GEAR SHIFT, NO.3
33230-35011

JZX110..5F

 1
33230-35010

JZX110..5F

 1
33221 - ARM, REVERSE SHIFT
33221-35050

JZX110..5F

 1
33221E - RING(FOR REVERSE SHIFT ARM END SHAFT)
96160-01000

JZX110..5F

 1
33228 - BRACKET, REVERSE SHIFT ARM
33228-35030

JZX110..5F

 1
33241 - SHAFT, REVERSE SHIFT FORK
33244-35060

JZX110..5F

 1
33242 - SHAFT, GEAR SHIFT FORK, NO.1
33242-60090

JZX110..5F

 1
33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

JZX110..5F

 4
33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

JZX110..5F

 4
33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

JZX110..5F

 4
33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

JZX110..5F

 4
33243A - SHAFT, GEAR SHIFT FORK, NO.2
33243-60120

JZX110..5F

 1
33245G - SHAFT, GEAR SHIFT FORK, NO.4
33245-35090

JZX110..5F

 1
33251 - LEVER, SHIFT & SELECT
33251-24010

JZX110..5F

 1
33251-24011

JZX110..5F

 1
33252A - LEVER, SHIFT, INNER NO.2
33252-22030

JZX110..5F

 1
33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1
90250-05029

JZX110..5F

長さ=11.5,外径=4.8

 1
33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK )
90361-10003

JZX110..5F

長さ=13.6,外径=9.5

 3
33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK )
90361-10003

JZX110..5F

長さ=13.6,外径=9.5

 3
33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK )
90361-10003

JZX110..5F

長さ=13.6,外径=9.5

 3
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12008

JZX110..5F

外径=18

 4
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12008

JZX110..5F

外径=18

 4
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12008

JZX110..5F

外径=18

 4
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12008

JZX110..5F

外径=18

 4
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-16143

JZX110..5F

長さ=33.8

 3
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-16143

JZX110..5F

長さ=33.8

 3
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-16143

JZX110..5F

長さ=33.8

 3
33275B - BALL, SHAFT DETENT
90360-10003

JZX110..5F

 3
33275B - BALL, SHAFT DETENT
90360-10003

JZX110..5F

 3
33275B - BALL, SHAFT DETENT
90360-10003

JZX110..5F

 3
33280 - PIN ASSY, REVERSE RESTRICT
33280-30051

JZX110..5F

左側

 1
33280-35082

JZX110..5F

右側

 1
33280 - PIN ASSY, REVERSE RESTRICT
33280-30051

JZX110..5F

左側

 1
33280-35082

JZX110..5F

右側

 1
33283D - PLUG (FOR REVERSE RESTRICT PIN)
90341-12008

JZX110..5F

 1
33283F - PIN, REVERSE RESTRICT
33280-35100

JZX110..5F

 1
33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
90254-05001

JZX110..5F

 1
33521F - PIN OR BOLT (FOR SHIFT LEVER HOUSING)
90105-08079

JZX110..5F

 1
90109-08305

JZX110..5F

 2
Common parts
91611-G0820
