JZX110-BEAVH (2001)
Toyota Verossa
Production
Jun 2001
-
Apr 2004
Engine
1JZFSE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

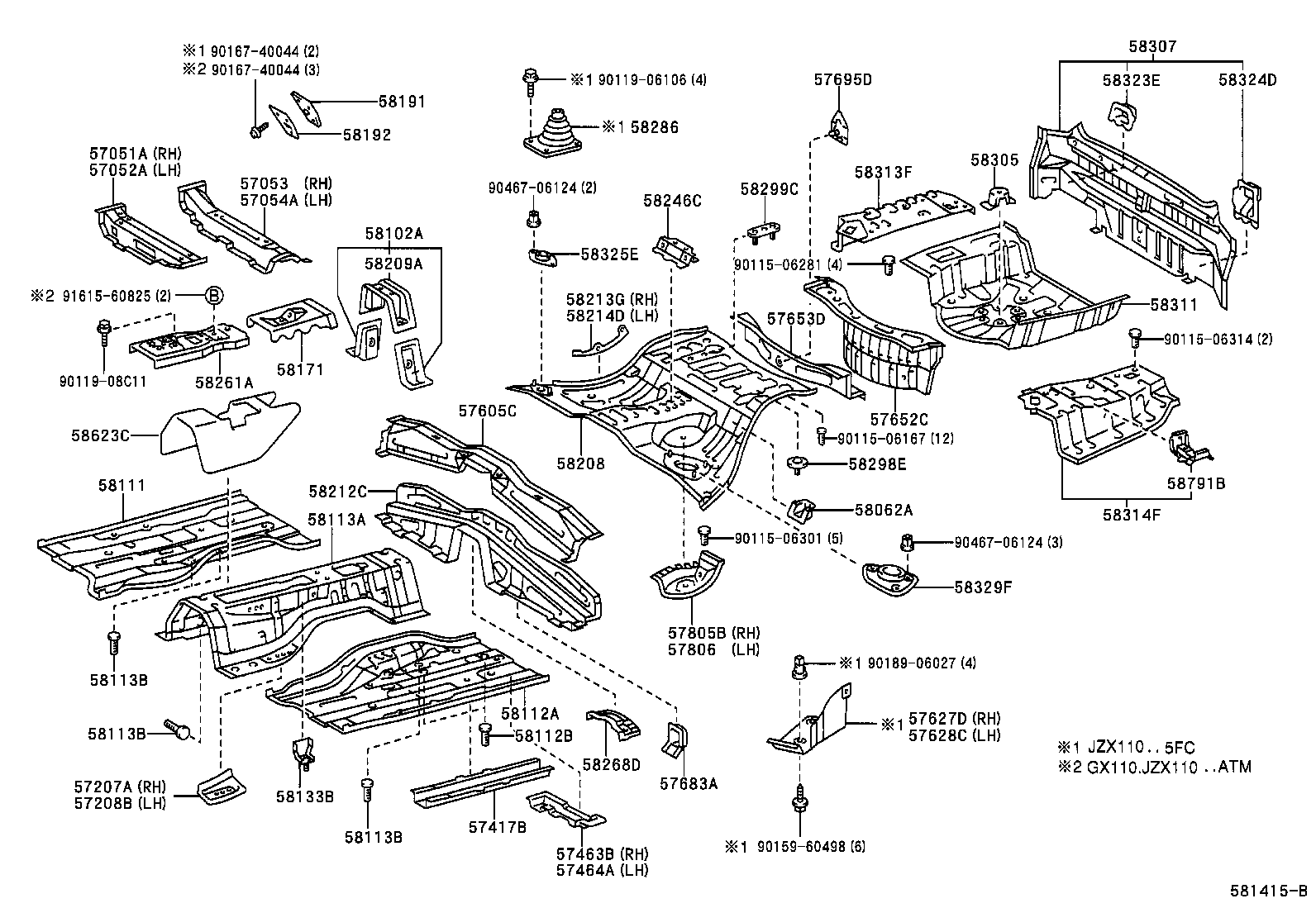

ILLUST NO. 1 OF 2(0106- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-22050 |
GX110,JZX110 |
1 | ||
| 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-22050 |
GX110,JZX110 |
1 | ||
| 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH | ||||
| 57053-22050 |
GX110,JZX110 |
1 | ||
| 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH | ||||
| 57054-22050 |
GX110,JZX110 |
1 | ||
| 57207A - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, RH | ||||
| 57207-51010 |
GX110,JZX110 |
1 | ||
| 57208B - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, LH | ||||
| 57208-51010 |
GX110,JZX110 |
1 | ||
| 57417B - REINFORCEMENT, FRONT FLOOR UNDER | ||||
| 57417-51010 |
GX11#,JZX110 |
2 | ||
| 57463B - REINFORCEMENT, CENTER FLOOR CROSSMEMBER, RH | ||||
| 57403-53010 |
GX110,JZX110 |
1 | ||
| 57464A - REINFORCEMENT, CENTER FLOOR CROSSMEMBER, LH | ||||
| 57404-53010 |
GX110,JZX110 |
1 | ||
| 57605C - MEMBER SUB-ASSY, REAR FLOOR CROSS | ||||
| 57461-51010 |
GX11#,JZX110 |
1 | ||
| 57627D - COVER, REAR FLOOR SIDE MEMBER | ||||
| 57627-53010 |
JZX110..5FC |
1 | ||
| 57628C - COVER, REAR FLOOR SIDE MEMBER, LH | ||||
| 57628-53010 |
JZX110..5FC |
1 | ||
| 57652C - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-51010 |
GX11#,JZX110 |
1 | ||
| 57653D - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57653-51010 |
GX11#,JZX110 |
1 | ||
| 57683A - BRACKET, FUEL TANK MOUNTING, NO.1 | ||||
| 57683-51010 |
GX11#,JZX110 |
2 | ||
| 57695D - BRACKET, REAR FLOOR MOUNTING, NO.2 RH | ||||
| 57695-53010 |
GX11#,JZX110 |
1 | ||
| 57805B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH | ||||
| 57805-53020 |
GX11#,JZX110 |
1 | ||
| 57806 - REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH | ||||
| 57806-53020 |
GX11#,JZX110 |
1 | ||
| 58062A - BRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR | ||||
| 58062-30010 |
GX11#,JZX110 |
2 | ||
| 58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR | ||||
| 58102-51010 |
GX11#,JZX110 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-30401 |
GX110,JZX110 |
1 | ||
| 58112A - PANEL, FRONT FLOOR, LH | ||||
| 58112-30081 |
GX110,JZX110 |
1 | ||
| 58112B - BOLT, WELD(FOR FRONT FLOOR PAN, LH) | ||||
| 90115-06301 |
GX11#,JZX110 |
2 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-30131 |
GX110,JZX110 |
1 | ||
| 58113B - BOLT, WELD(FOR FRONT FLOOR PANEL, CENTER) | ||||
| 90115-06243 |
JZX110..5FC |
6 | ||
| 58113B - BOLT, WELD(FOR FRONT FLOOR PANEL, CENTER) | ||||
| 90115-06243 |
JZX110..5FC |
6 | ||
| 58113B - BOLT, WELD(FOR FRONT FLOOR PANEL, CENTER) | ||||
| 90115-06243 |
JZX110..5FC |
6 | ||
| 58133B - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.3 | ||||
| 58133-51010 |
JZX110..5FC |
2 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-22090 |
GX11#,JZX110 |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58190-22020 |
JZX110..5F |
1 | ||
| 58190-22010 |
GX11#,JZX110..ATM |
1 | ||
| 58192 - PANEL, FOOTREST | ||||
| 58192-22060 |
JZX110..5F |
1 | ||
| 58192-22050 |
GX11#,JZX110..ATM |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-51902 |
GX11#,JZX110 |
1 | ||
| 58209A - REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT | ||||
| 58209-51010 |
GX11#,JZX110 |
1 | ||
| 58212C - PAN, CENTER FLOOR, FRONT | ||||
| 58212-51010 |
GX11#,JZX110 |
1 | ||
| 58213G - REINFORCEMENT, CENTER FLOOR PANEL, NO.1 RH | ||||
| 58213-51011 |
GX11#,JZX110 |
1 | ||
| 58214D - REINFORCEMENT, CENTER FLOOR PANEL, NO.1 LH | ||||
| 58214-51011 |
GX11#,JZX110 |
1 | ||
| 58246C - BRACKET, REAR SEAT HINGE, CENTER NO.2 | ||||
| 58246-22020 |
GX11#,JZX110 |
1 | ||
| 58261A - COVER, TRANSMISSION | ||||
| 58261-22420 |
JZX110..5F |
1 | ||
| 58261-22410 |
GX110,JZX110..ATM |
1 | ||
| 58268D - REINFORCEMENT, PARKING BRAKE CABLE, NO.3 | ||||
| 58268-51011 |
GX11#,JZX110 |
1 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58280-22090 |
JZX110..5F |
1 | ||
| 58298E - BRACKET, HOT AIR INTAKE, NO.1 | ||||
| 58298-30030 |
GX11#,JZX110 |
1 | ||
| 58299C - BRACKET, HOT AIR INTAKE, NO.2 | ||||
| 58299-30010 |
GX11#,JZX110 |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58351-53010 |
GX11#,JZX110 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-22760 |
GX11#,JZX110 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-22150 |
GX11#,JZX110 |
1 | ||
| 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH | ||||
| 58313-22120 |
GX11#,JZX110 |
1 | ||
| 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH | ||||
| 58314-22903 |
GX11#,JZX110 |
1 | ||
| 58323E - REINFORCEMENT, REAR BUMPER ARM SUPPORT, RH | ||||
| 58323-22100 |
GX11#,JZX110 |
1 | ||
| 58324D - REINFORCEMENT, REAR BUMPER ARM SUPPORT, LH | ||||
| 58324-22060 |
GX11#,JZX110 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-30010 |
GX11#,JZX110 |
1 | ||
| 58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2 | ||||
| 58329-30020 |
GX11#,JZX110 |
1 | ||
| 58623C - PAD, FRONT FLOOR SILENCER, CENTER | ||||
| 58623-22220 |
GX11#,JZX110 |
1 | ||
| 58791B - CARRIER, JACK | ||||
| 58791-30030 |
GX11#,JZX110 |
1 | ||
| Common parts | ||||
| 90115-06167 | ||||
| 90115-06281 | ||||
| 90115-06301 | ||||
| 90115-06314 | ||||
| 90119-06106 | ||||
| 90119-08C11 | ||||
| 90159-60498 | ||||
| 90167-40044 | ||||
| 90189-06027 | ||||
| 90467-06124 | ||||
| 91615-60825 | ||||

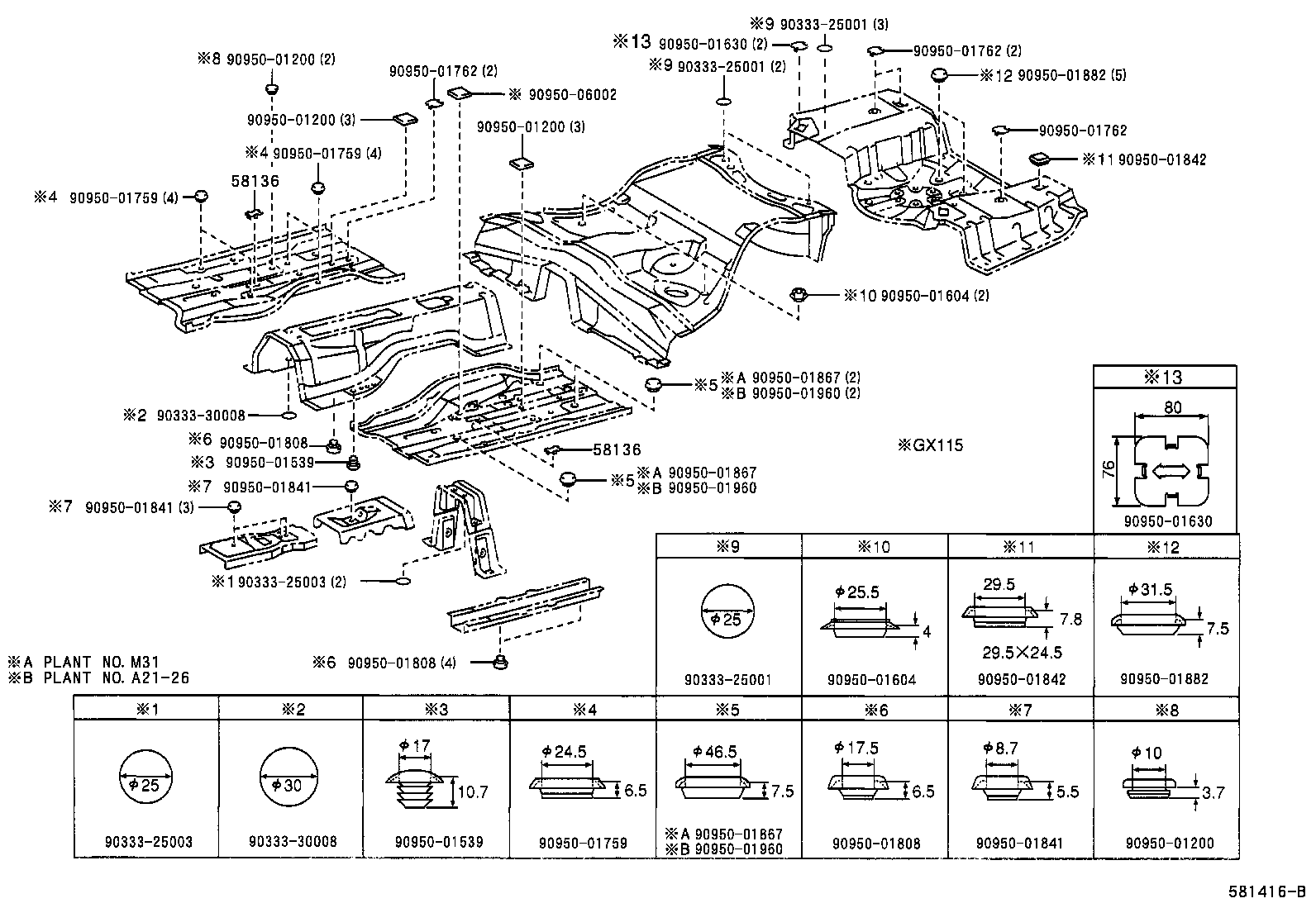

ILLUST NO. 2 OF 2(0106- )
Click highlighted areas on diagram
ﾌﾟﾗｸﾞﾎ-ﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-51010 |
GX11#,JZX110 |
2 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-51010 |
GX11#,JZX110 |
2 | ||
| Common parts | ||||
| 90333-25001 | ||||
| 90333-25003 | ||||
| 90333-30008 | ||||
| 90950-01200 | ||||
| 90950-01539 | ||||
| 90950-01604 | ||||
| 90950-01630 | ||||
| 90950-01759 | ||||
| 90950-01762 | ||||
| 90950-01808 | ||||
| 90950-01841 | ||||
| 90950-01842 | ||||
| 90950-01867 | ||||
| 90950-01882 | ||||
| 90950-01960 | ||||
| 90950-06002 | ||||
