JZX110-BEAVH (2001)

Toyota Verossa

Production Jun 2001 - Apr 2004
Engine 1JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0106- )5F

Click highlighted areas on diagram

R154

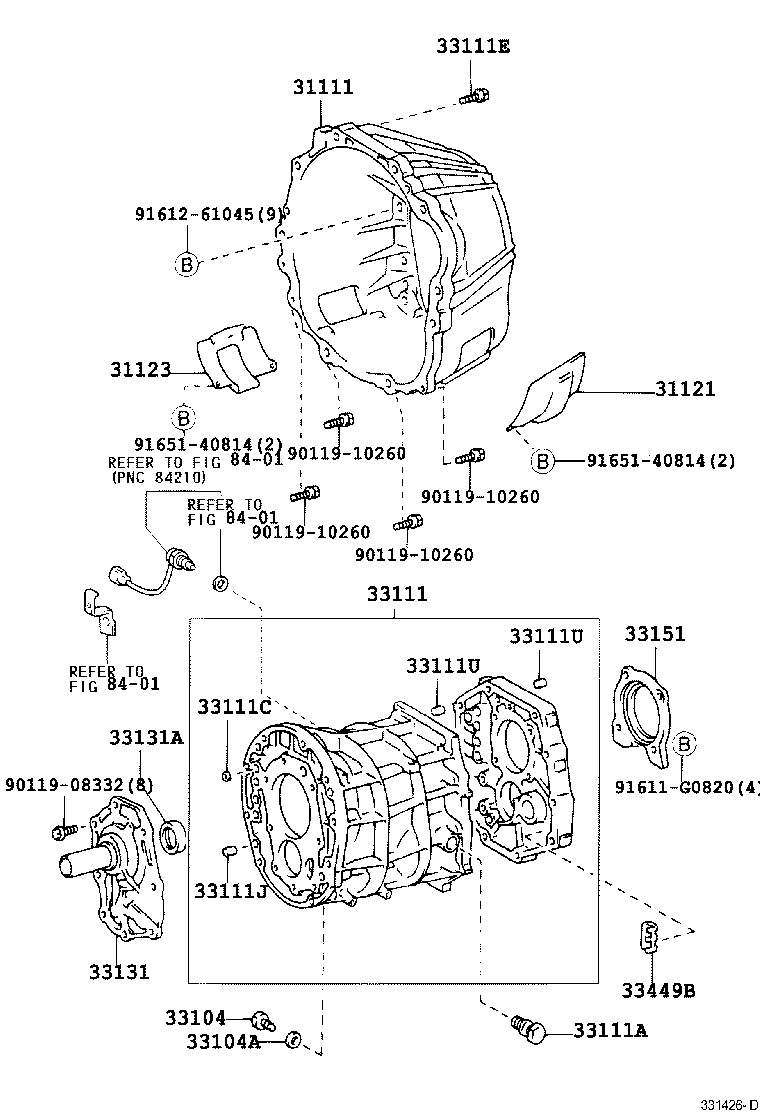

diagram 31111 31121 31123 33104 33104A 33111 33111A 33111C 33111E 33111J 33111U 33111U 33131 33131A 33151 33449B 8401 8401 8401 9011908332 9011910260 9011910260 9011910260 9011910260 91611G0820 9161261045 9165140814 9165140814
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-14111

JZX110..5F

 1
31121 - COVER, CLUTCH HOUSING, NO.1
31121-22030

JZX110..5F

 1
31123 - COVER, CLUTCH HOUSING, NO.2
31123-14020

JZX110..5F

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

JZX110..5F

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

JZX110..5F

 1
33111 - CASE, MANUAL TRANSMISSION
33101-60040

JZX110..5F

 1
33101-35100

JZX110..5F

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18026

JZX110..5F

 1
90341-18019

JZX110..5F

 1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004

JZX110..5F

外径=14

 1
96411-41800

JZX110..5F

外径=18

 3
33111E - BOLT(FOR TRANSMISSION CASE & ENGINE SETTING)
91619-61250

JZX110..5F

 5
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

JZX110..5F

長さ=16,外径=12

 2
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001

JZX110..5F

長さ=14,外径=15

 4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001

JZX110..5F

長さ=14,外径=15

 4
33131 - RETAINER, BEARING, FRONT(MTM)
33131-35031

JZX110..5F

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-32012

JZX110..5F

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-35020

JZX110..5F

 1
33449B - MAGNET, TRANSMISSION
33449-35030

JZX110..5F

 1
Common parts
90119-08332
90119-10260
91611-G0820
91612-61045
91651-40814
Linked diagrams
8401
