JZX110-BEAVH (2001)

Toyota Verossa

Production Jun 2001 - Apr 2004
Engine 1JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0106- )5F

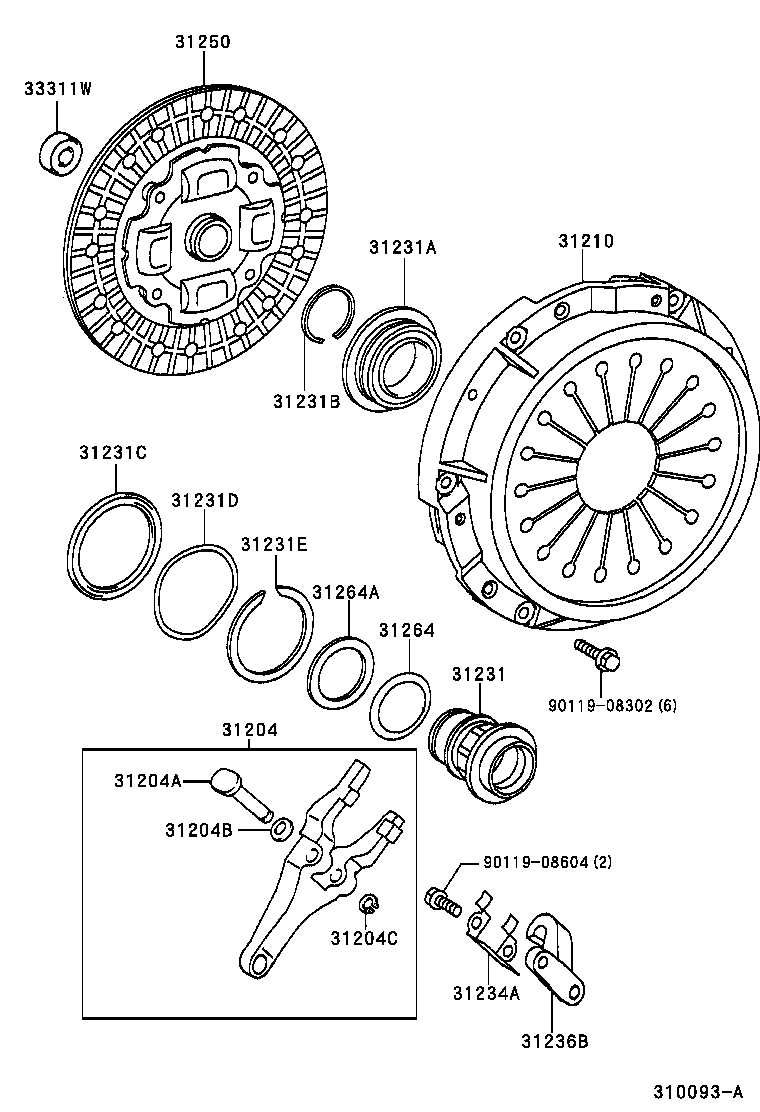

Click highlighted areas on diagram

diagram 31204 31204A 31204B 31204C 31210 31231 31231A 31231B 31231C 31231D 31231E 31234A 31236B 31250 31264 31264A 33311W 9011908302 9011908604
Part # Description Qty Price
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-14031

JZX110..5F

 1
31204A - PIN(FOR CLUTCH RELEASE FORK)
90249-10132

JZX110..5F

 1
31204B - WASHER, WAVE(FOR CLUTCH RELEASE FORK)
90206-10008

JZX110..5F

 1
31204C - RING, E(FOR CLUTCH RELEASE FORK)
96160-00800

JZX110..5F

 1
31210 - COVER ASSY, CLUTCH
31210-22140

JZX110..5F

 1
31231 - HUB, CLUTCH RELEASE BEARING
31231-14040

JZX110..5F

 1
31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB)
90363-45012

JZX110..5F

 1
31231B - RING, SNAP(FOR CLUTCH RELEASE HUB)
96152-00450

JZX110..5F

 1
31231C - WASHER, PLATE(FOR CLUTCH RELEASE BEARING)
90201-71001

JZX110..5F

 1
31231D - WASHER, WAVE(FOR CLUTCH RELEASE BEARING)
90206-72001

JZX110..5F

 1
31231E - RING, SHAFT SNAP(FOR CLUTCH RELEASE BEARING)
90520-67001

JZX110..5F

 1
31234A - SPRING, RELEASE FORK SUPPORT
31234-14030

JZX110..5F

 1
31236B - SUPPORT, RELEASE FORK
31236-14020

JZX110..5F

 1
31250 - DISC ASSY, CLUTCH
31250-22351

JZX110..5F

 1
31264 - SPRING, CLUTCH THRUST CONE
31264-14040

JZX110..5F

 1
31264A - WASHER, PLATE(FOR CLUTCH THRUST CONE SPRING)
90201-45023

JZX110..5F

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002

JZX110..5F

 1
Common parts
90119-08302
90119-08604
