JZX110-BEASH (2001)
Toyota Verossa

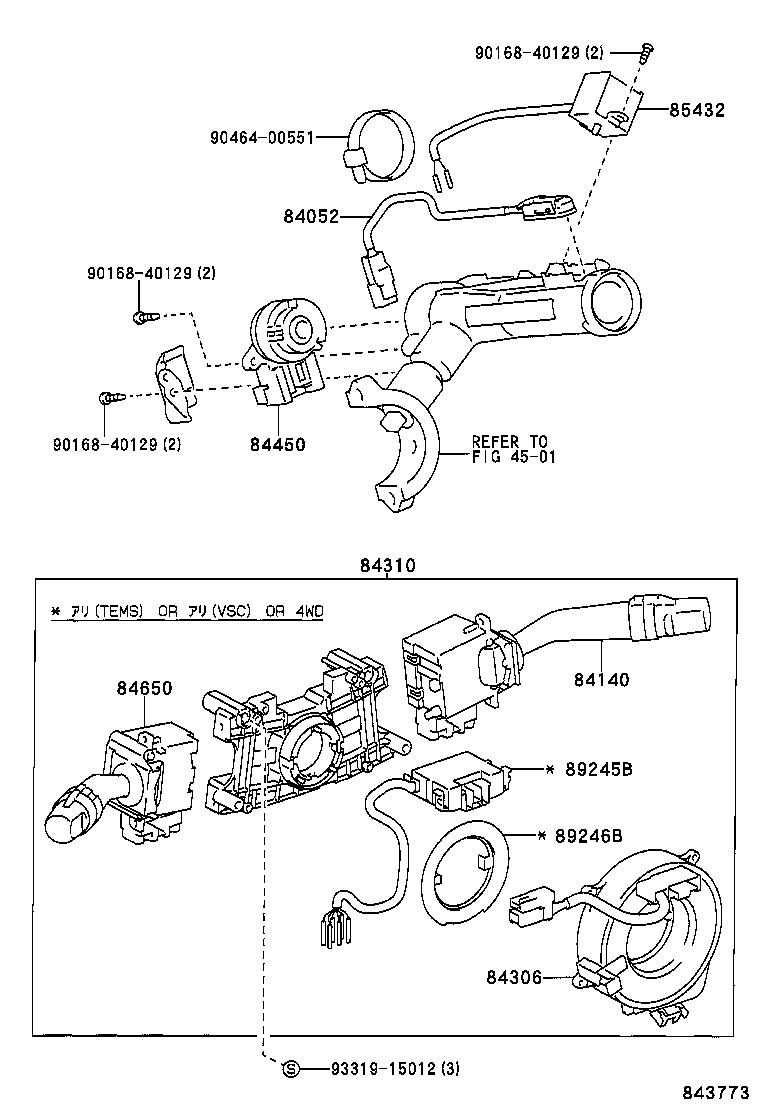

ILLUST NO. 5 OF 6(0106-0404)
ｲｸﾞﾆﾂｼﾖﾝ & ｺﾝﾋﾞﾈ-ｼﾖﾝ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-22050 |
GX11#,JZX110 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-32210 |
GX110,JZX110 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-30170 |
GX11#,JZX110 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-2A870 |
GX110,JZX110 |
1 | ||
| 84310-2A880 |
GX110,JZX110 ｱﾘ(ｶﾝｹﾂﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-52010 |
GX11#,JZX110 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-22880 |
GX11#,JZX110 |
1 | ||
| 84652-22890 |
GX11#,JZX110 ｱﾘ(ｶﾝｹﾂﾘﾔﾜｲﾊﾟ) |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-14040 |
GX11#,JZX110..ATM |
1 | ||
| Common parts | ||||
| 90168-40129 | ||||
| 90464-00551 | ||||
| 93319-15012 | ||||
| Linked diagrams | ||||
| 4501 | ||||

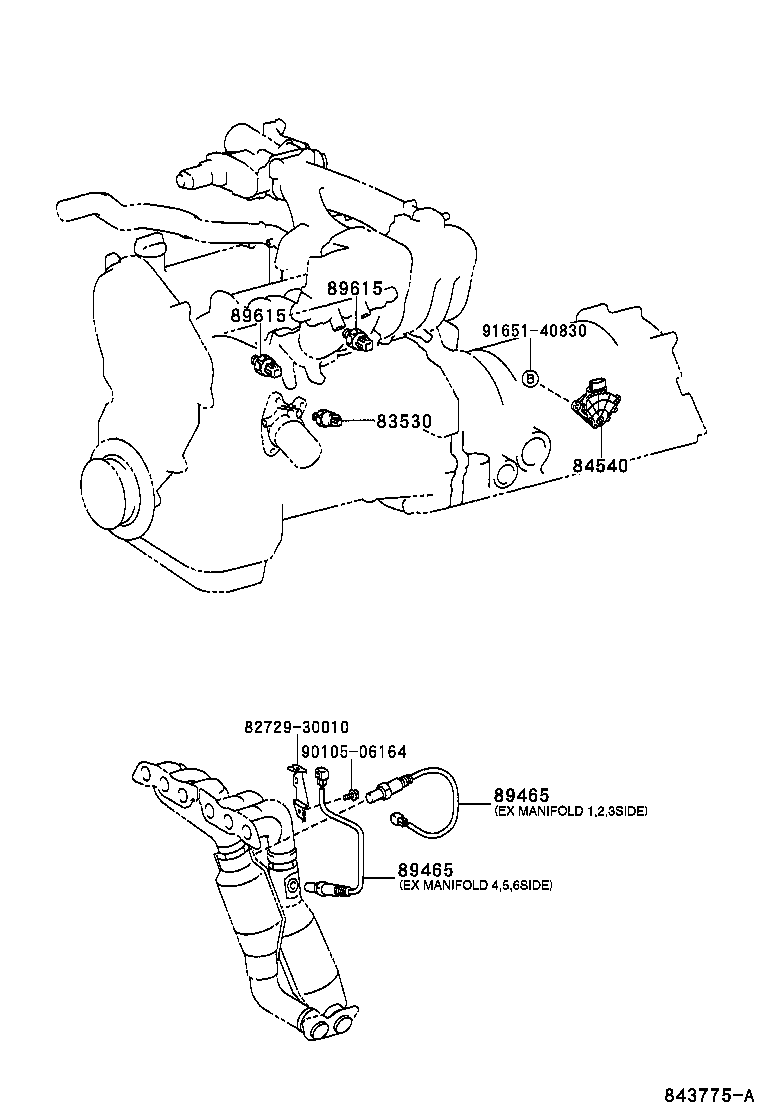

ILLUST NO. 1 OF 6(0106-0404)5FC
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
GX11#,JZX110 YAZAKI |
1 | ||
| 83530-28020 |
GX11#,JZX110 DENSO |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-30320 |
GX115,JZX110..ATM |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-22260 |
JZX110..5FC ｴｷｿﾞ−ｽﾄﾏﾆﾎ−ﾙﾄﾞ4,5,6ｻｲﾄﾞ |
1 | ||
| 89465-22270 |
JZX110..5FC ｴｷｿﾞ−ｽﾄﾏﾆﾎ−ﾙﾄﾞ1,2,3ｻｲﾄﾞ |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-22260 |
JZX110..5FC ｴｷｿﾞ−ｽﾄﾏﾆﾎ−ﾙﾄﾞ4,5,6ｻｲﾄﾞ |
1 | ||
| 89465-22270 |
JZX110..5FC ｴｷｿﾞ−ｽﾄﾏﾆﾎ−ﾙﾄﾞ1,2,3ｻｲﾄﾞ |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-30070 |
JZX110..5FC |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-30070 |
JZX110..5FC |
2 | ||
| Common parts | ||||
| 82729-30010 | ||||
| 90105-06164 | ||||
| 91651-40830 | ||||

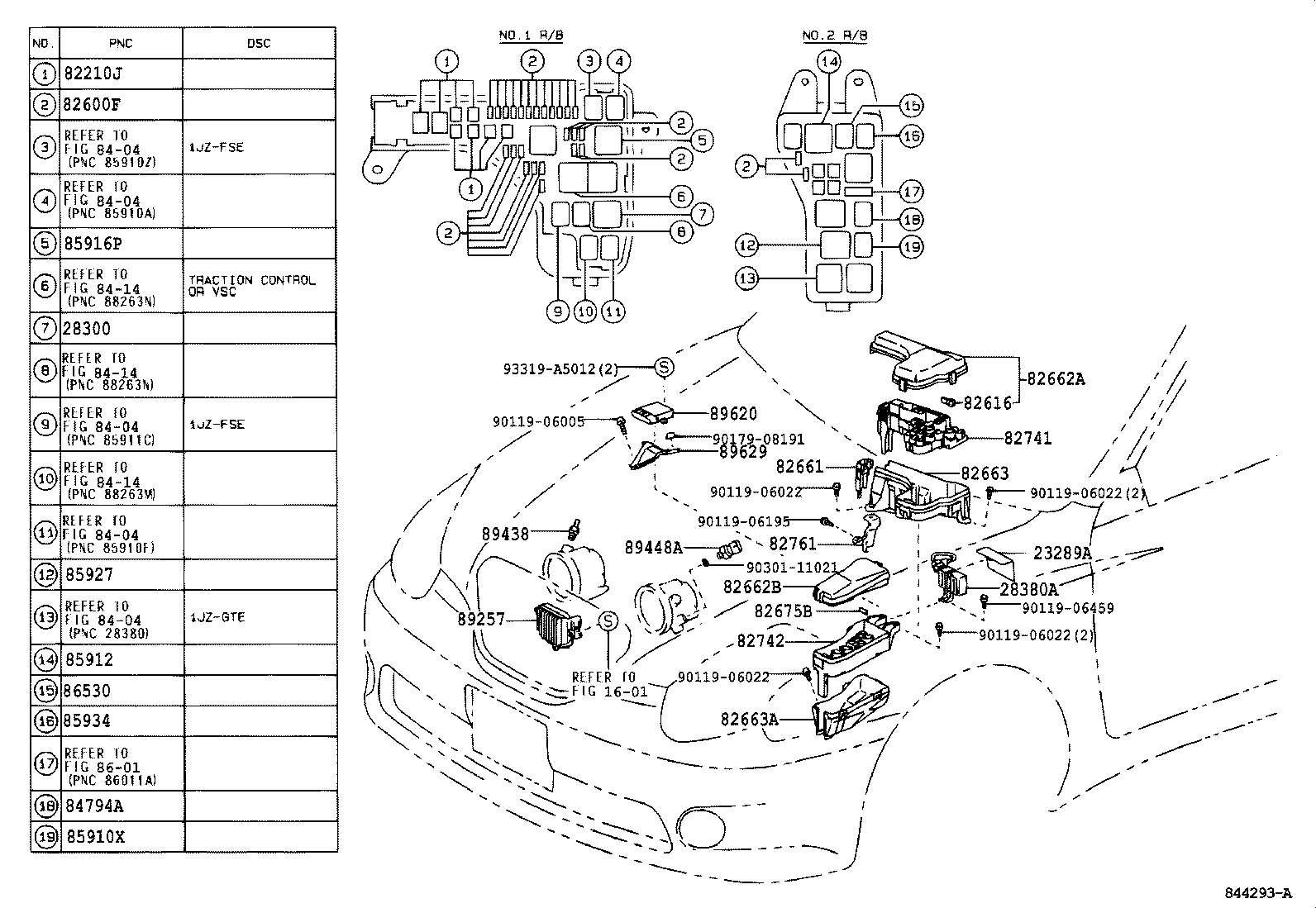

ILLUST NO. 2 OF 6(0106-0404)
ｴﾝｼﾞﾝﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
1GFE,1JZ#..GX11#,JZX110 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08283 |
GX11#,JZX110 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08286 |
JZX110 140A,ｵｽ端子,赤茶 |
1 | ||
| 90982-08285 |
GX11#,JZX110 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08284 |
GX11#,JZX110 40A,ﾒｽ端子,緑 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
GX11#,JZX110 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09007 |
GX11#,JZX110 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09008 |
GX11#,JZX110 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09009 |
GX11#,JZX110 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09012 |
GX11#,JZX110 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09014 |
GX11#,JZX110 5A,ﾏﾙﾁ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09011 |
GX11#,JZX110 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09013 |
GX11#,JZX110 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-32010 |
GX11#,JZX110 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-22040 |
GX11#,JZX110 |
1 | ||
| 82662-22010 |
GX11#,JZX110 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-22050 |
GX11#,JZX110 |
1 | ||
| 82662-22030 |
GX11#,JZX110 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-22010 |
GX11#,JZX110 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-51030 |
GX11#,JZX110 |
1 | ||
| 82675B - TERMINAL, JUNCTION | ||||
| 82675-51020 |
GX11#,JZX110 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-22050 |
GX11#,JZX110 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-51021 |
GX11#,JZX110 |
1 | ||
| 82761 - BRACKET, RELAY BLOCK, NO.1 | ||||
| 82761-30030 |
GX11#,JZX110 |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-02012 |
GX11#,JZX110 |
1 | ||
| 85910X - RELAY, HEATER MIRROR | ||||
| 90987-02012 |
GX11#,JZX110 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02025 |
GX11#,JZX110 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
GX11#,JZX110 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02012 |
GX11#,JZX110 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02012 |
GX11#,JZX110 |
1 | ||
| 89448A - SENSOR, POWER STEERING OIL PRESSURE | ||||
| 89448-51010 |
JZX110 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06022 | ||||
| 90119-06195 | ||||
| 90119-06459 | ||||
| 90179-08191 | ||||
| 90301-11021 | ||||
| 93319-A5012 | ||||
| Linked diagrams | ||||
| 1601 | ||||
| 8404 | ||||
| 8414 | ||||
| 8601 | ||||

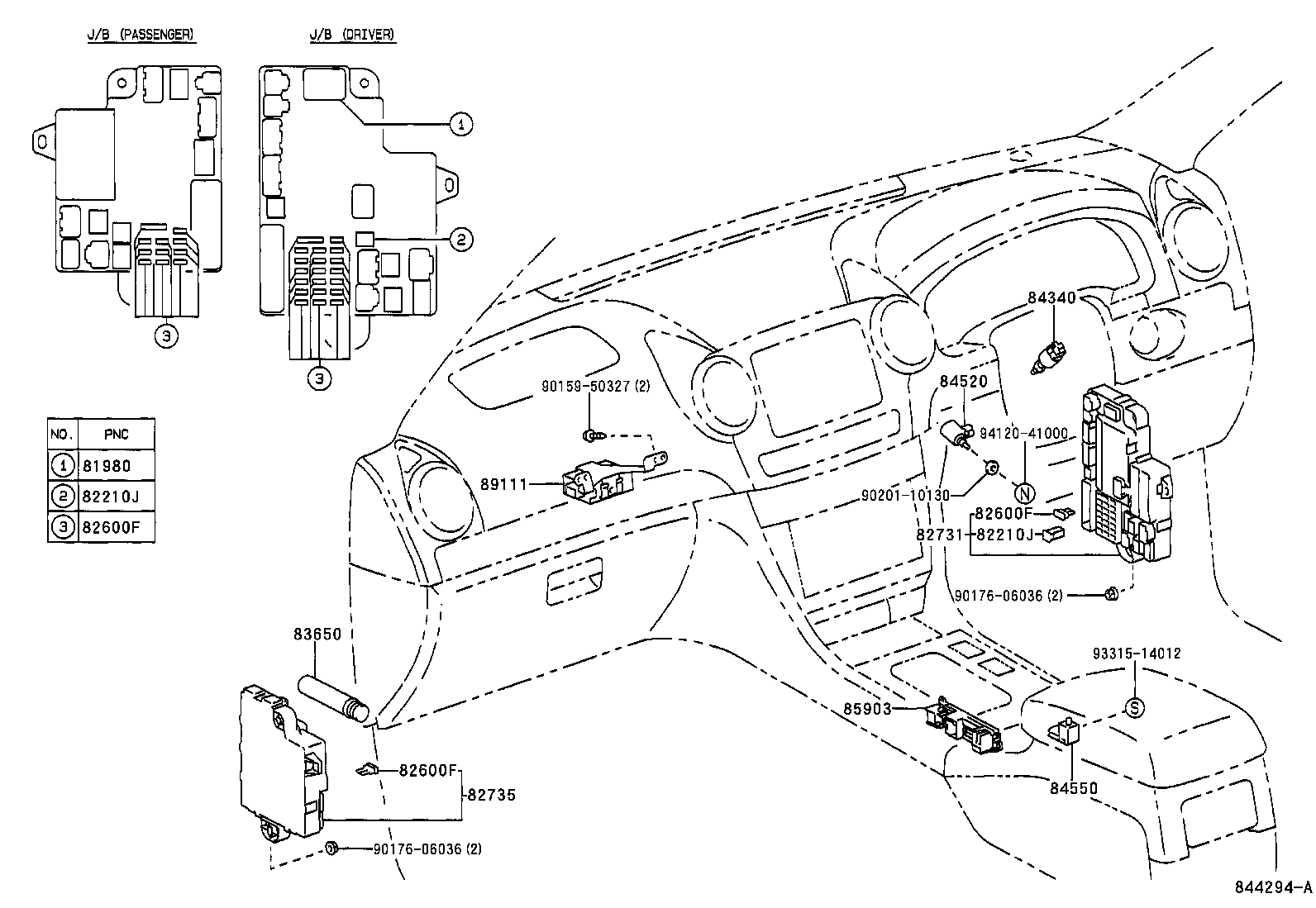

ILLUST NO. 3 OF 6(0106-0404)
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-50030 |
GX11#,JZX110 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08283 |
GX11#,JZX110 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08286 |
JZX110 140A,ｵｽ端子,赤茶 |
1 | ||
| 90982-08285 |
GX11#,JZX110 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08284 |
GX11#,JZX110 40A,ﾒｽ端子,緑 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08283 |
GX11#,JZX110 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08286 |
JZX110 140A,ｵｽ端子,赤茶 |
1 | ||
| 90982-08285 |
GX11#,JZX110 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08284 |
GX11#,JZX110 40A,ﾒｽ端子,緑 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
GX11#,JZX110 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09007 |
GX11#,JZX110 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09008 |
GX11#,JZX110 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09009 |
GX11#,JZX110 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09012 |
GX11#,JZX110 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09014 |
GX11#,JZX110 5A,ﾏﾙﾁ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09011 |
GX11#,JZX110 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09013 |
GX11#,JZX110 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
GX11#,JZX110 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09007 |
GX11#,JZX110 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09008 |
GX11#,JZX110 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09009 |
GX11#,JZX110 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09012 |
GX11#,JZX110 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09014 |
GX11#,JZX110 5A,ﾏﾙﾁ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09011 |
GX11#,JZX110 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09013 |
GX11#,JZX110 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
GX11#,JZX110 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09007 |
GX11#,JZX110 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09008 |
GX11#,JZX110 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09009 |
GX11#,JZX110 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09012 |
GX11#,JZX110 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09014 |
GX11#,JZX110 5A,ﾏﾙﾁ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09011 |
GX11#,JZX110 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09013 |
GX11#,JZX110 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82730-22051 |
GX11#,JZX110..ATM |
1 | ||
| 82730-22061 |
JZX110..5F |
1 | ||
| 82735 - BLOCK, PASSENGER SIDE JUNCTION | ||||
| 82730-22110 |
GX11#,JZX110 |
1 | ||
| 82730-22030 |
GX11#,JZX110 |
1 | ||
| 82730-22150 |
GX11#,JZX110 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
GX11#,JZX110 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-42020 |
JZX110..5FC |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-24010 |
JZX110..5F |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
GX11#,JZX110 |
1 | ||
| 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL | ||||
| 85903-50010 |
GX11#,JZX110..ATM |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-22020 |
GX11#,JZX110 |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90176-06036 | ||||
| 90201-10130 | ||||
| 93315-14012 | ||||
| 94120-41000 | ||||

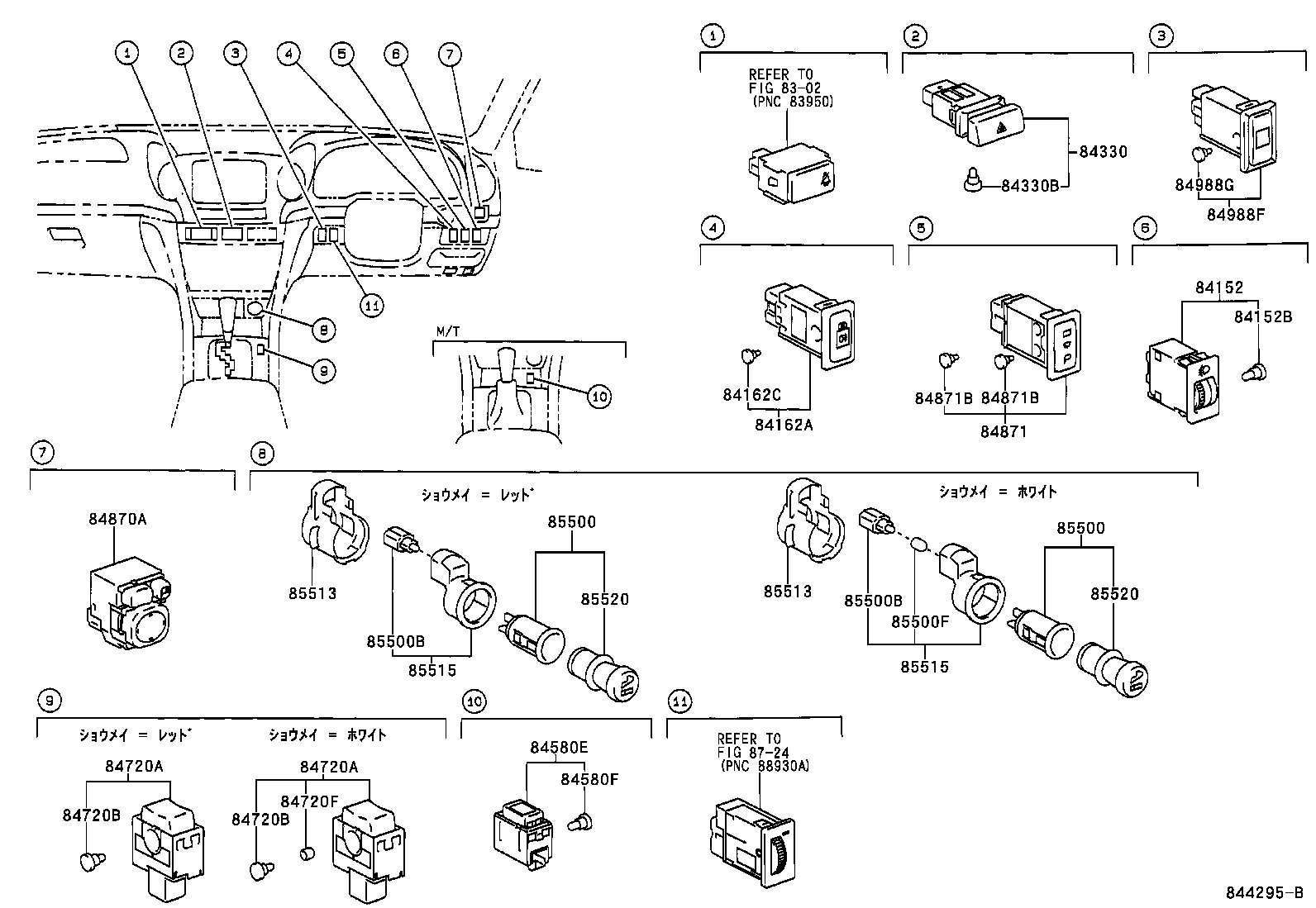

ILLUST NO. 4 OF 6(0106-0404)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-22020 |
GX11#,JZX110 ｼﾖｳﾒｲ = ﾚﾂﾄﾞ |
1 | ||
| 84152-22040 |
GX11#,JZX110..20,25 ｼﾖｳﾒｲ = ﾎﾜｲﾄ |
1 | ||
| 84152B - BULB (FOR HEADLAMP LEVELING SWITCH) | ||||
| 90010-08102 |
GX11#,JZX110 14V 0.56W,ｼﾖｳﾒｲ = ﾚﾂﾄﾞ |
1 | ||
| 90010-08100 |
GX11#,JZX110..20,25 14V 40MA,ｸﾞﾘｰﾝ,ｼﾖｳﾒｲ = ﾎﾜｲﾄ |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-22040 |
GX11#,JZX110 ｼﾖｳﾒｲ = ﾚﾂﾄﾞ |
1 | ||
| 84165-22030 |
GX11#,JZX110..20,25 ｼﾖｳﾒｲ = ﾎﾜｲﾄ |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 90010-09013 |
GX11#,JZX110 14V 40MA,ｼﾖｳﾒｲ = ﾚﾂﾄﾞ |
1 | ||
| 90010-09012 |
GX11#,JZX110..20,25 14V 40MA,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｼﾖｳﾒｲ = ﾎﾜｲﾄ |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-22140 |
GX11#,JZX110 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10860 |
GX11#,JZX110 14V 0.91W |
1 | ||
| 84580E - SWITCH ASSY, THROTTLE POSITION | ||||
| 84580-22070 |
JZX110..5F |
1 | ||
| 84580F - BULB, THROTTLE POSITION SWITCH | ||||
| 90010-01068 |
JZX110..5F 14V 0.84W,ｷｬｯﾌﾟ付き |
1 | ||
| 84720A - SWITCH ASSY, PATTERN SELECT, NO.1 | ||||
| 84720-22230 |
GX11#,JZX110..ATM ｼﾖｳﾒｲ = ﾚﾂﾄﾞ |
1 | ||
| 84720-30340 |
GX11#,JZX110..20,25 ｼﾖｳﾒｲ = ﾎﾜｲﾄ |
1 | ||
| 84720A - SWITCH ASSY, PATTERN SELECT, NO.1 | ||||
| 84720-22230 |
GX11#,JZX110..ATM ｼﾖｳﾒｲ = ﾚﾂﾄﾞ |
1 | ||
| 84720-30340 |
GX11#,JZX110..20,25 ｼﾖｳﾒｲ = ﾎﾜｲﾄ |
1 | ||
| 84720B - BULB (FOR PATTERN SELECT SWITCH) | ||||
| 84999-10710 |
GX11#,JZX110..20,25 14V 0.56W,ｼﾖｳﾒｲ = ﾎﾜｲﾄ |
1 | ||
| 90010-01066 |
GX11#,JZX110..ATM 14V 0.56W,ｷｬｯﾌﾟ付き,ｼﾖｳﾒｲ = ﾚﾂﾄﾞ |
1 | ||
| 84720B - BULB (FOR PATTERN SELECT SWITCH) | ||||
| 84999-10710 |
GX11#,JZX110..20,25 14V 0.56W,ｼﾖｳﾒｲ = ﾎﾜｲﾄ |
1 | ||
| 90010-01066 |
GX11#,JZX110..ATM 14V 0.56W,ｷｬｯﾌﾟ付き,ｼﾖｳﾒｲ = ﾚﾂﾄﾞ |
1 | ||
| 84720F - CAP, PATTERN SELECT SWITCH | ||||
| 84998-10670 |
GX11#,JZX110..20,25 ｼﾖｳﾒｲ = ﾎﾜｲﾄ |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-52040 |
GX11#,JZX110 |
1 | ||
| 84871 - SWITCH ASSY, OUTER MIRROR HEATER | ||||
| 84871-22080 |
GX11#,JZX110 ｼﾖｳﾒｲ = ﾚﾂﾄﾞ |
1 | ||
| 84871-22090 |
GX11#,JZX110 ｼﾖｳﾒｲ = ﾚﾂﾄﾞ & ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｱｲｻ) |
1 | ||
| 84871-22071 |
GX11#,JZX110..20,25 ｼﾖｳﾒｲ = ﾎﾜｲﾄ |
1 | ||
| 84871B - BULB, OUTER MIRROR HEATER SWITCH | ||||
| 90010-01067 |
GX11#,JZX110 14V 0.91W,ｷｬｯﾌﾟ付き |
1 | ||
| 84999-10310 |
GX11#,JZX110 14V 0.91W |
1 | ||
| 90010-01072 |
GX11#,JZX110..20,25 14V0.63W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 84871B - BULB, OUTER MIRROR HEATER SWITCH | ||||
| 90010-01067 |
GX11#,JZX110 14V 0.91W,ｷｬｯﾌﾟ付き |
1 | ||
| 84999-10310 |
GX11#,JZX110 14V 0.91W |
1 | ||
| 90010-01072 |
GX11#,JZX110..20,25 14V0.63W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 84988F - SWITCH, TRACTION CONTROL | ||||
| 84988-22060 |
JZX110 ｼﾖｳﾒｲ = ﾚﾂﾄﾞ |
1 | ||
| 84988-22050 |
JZX110..25 ｼﾖｳﾒｲ = ﾎﾜｲﾄ |
1 | ||
| 84988G - BULB, TRACTION CONTROL SWITCH | ||||
| 84999-10320 |
JZX110 14V 0.84W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28050 |
GX11#,JZX110 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28050 |
GX11#,JZX110 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10250 |
GX11#,JZX110..20,25 14V 1.4W |
1 | ||
| 90010-01064 |
GX11#,JZX110 14V 1.4W,ｷｬｯﾌﾟ付き |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10250 |
GX11#,JZX110..20,25 14V 1.4W |
1 | ||
| 90010-01064 |
GX11#,JZX110 14V 1.4W,ｷｬｯﾌﾟ付き |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10550 |
GX11#,JZX110..20,25 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
GX11#,JZX110 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
GX11#,JZX110 |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-22030 |
GX11#,JZX110..20,25 ｼﾖｳﾒｲ = ﾎﾜｲﾄ |
1 | ||
| 85515-22050 |
GX11#,JZX110 ｼﾖｳﾒｲ = ﾚﾂﾄﾞ |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-22030 |
GX11#,JZX110..20,25 ｼﾖｳﾒｲ = ﾎﾜｲﾄ |
1 | ||
| 85515-22050 |
GX11#,JZX110 ｼﾖｳﾒｲ = ﾚﾂﾄﾞ |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
GX11#,JZX110 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
GX11#,JZX110 |
1 | ||
| Linked diagrams | ||||
| 8302 | ||||
| 8724 | ||||

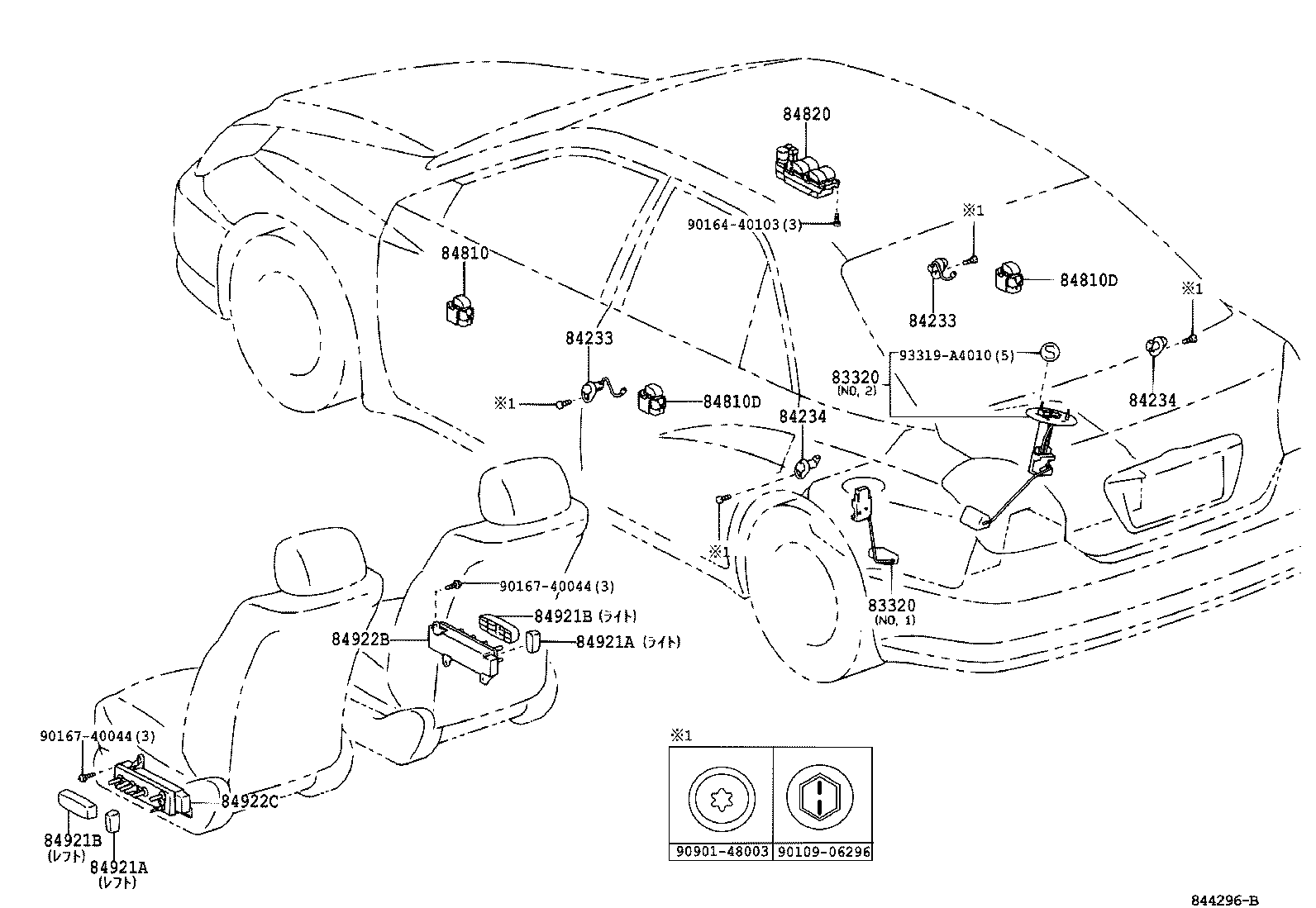

ILLUST NO. 6 OF 6(0106-0404)
ﾄﾞｱ,ﾙ-ﾌ,ﾌﾛｱ,ｼ-ﾄ & ﾗﾂｹﾞ-ｼﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-51010 |
GX11#,JZX110 NO.1 |
1 | ||
| 83320-59095 |
GX11#,JZX110 NO.2 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-51010 |
GX11#,JZX110 NO.1 |
1 | ||
| 83320-59095 |
GX11#,JZX110 NO.2 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-22130 |
GX11#,JZX110 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-22130 |
GX11#,JZX110 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
GX11#,JZX110 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
GX11#,JZX110 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84030-22050 |
GX11#,JZX110 ｼﾖｳﾒｲ = ﾚﾂﾄﾞ |
1 | ||
| 84030-22010 |
GX11#,JZX110 |
1 | ||
| 84030-22020 |
GX11#,JZX110..20,25 ｼﾖｳﾒｲ = ｸﾞﾘｰﾝ |
1 | ||
| 84030-22030 |
GX11#,JZX110 ｼﾖｳﾒｲ = ﾚﾂﾄﾞ |
1 | ||
| 84030-22040 |
GX11#,JZX110..20,25 ｼﾖｳﾒｲ = ｸﾞﾘｰﾝ |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84030-22050 |
GX11#,JZX110 ｼﾖｳﾒｲ = ﾚﾂﾄﾞ |
2 | ||
| 84030-22020 |
GX11#,JZX110..20,25 ｼﾖｳﾒｲ = ｸﾞﾘｰﾝ |
2 | ||
| 84030-22010 |
GX11#,JZX110 |
2 | ||
| 84030-22040 |
GX11#,JZX110..20,25 ｼﾖｳﾒｲ = ｸﾞﾘｰﾝ |
2 | ||
| 84030-22030 |
GX11#,JZX110 ｼﾖｳﾒｲ = ﾚﾂﾄﾞ |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84030-22050 |
GX11#,JZX110 ｼﾖｳﾒｲ = ﾚﾂﾄﾞ |
2 | ||
| 84030-22020 |
GX11#,JZX110..20,25 ｼﾖｳﾒｲ = ｸﾞﾘｰﾝ |
2 | ||
| 84030-22010 |
GX11#,JZX110 |
2 | ||
| 84030-22040 |
GX11#,JZX110..20,25 ｼﾖｳﾒｲ = ｸﾞﾘｰﾝ |
2 | ||
| 84030-22030 |
GX11#,JZX110 ｼﾖｳﾒｲ = ﾚﾂﾄﾞ |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-22080 |
GX11#,JZX110 ｼﾖｳﾒｲ = ﾚﾂﾄﾞ |
1 | ||
| 84040-22060 |
GX11#,JZX110 |
1 | ||
| 84040-22090 |
GX11#,JZX110..20,25 ｼﾖｳﾒｲ = ｸﾞﾘｰﾝ |
1 | ||
| 84040-22100 |
GX11#,JZX110 ｼﾖｳﾒｲ = ﾚﾂﾄﾞ |
1 | ||
| 84040-22070 |
GX11#,JZX110..20,25 ｼﾖｳﾒｲ = ｸﾞﾘｰﾝ |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-30120C0 |
GX110,JZX110..20,25 BLACK,TRIM2#,右側 |
1 | ||
| 84921-30120B0 |
GX110,JZX110..20,25 MD.CHARCOAL,TRIM1#,右側 |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-30120C0 |
GX110,JZX110..20,25 BLACK,TRIM2#,右側 |
1 | ||
| 84921-30120B0 |
GX110,JZX110..20,25 MD.CHARCOAL,TRIM1#,右側 |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-24030C0 |
GX110,JZX110..20,25 BLACK,TRIM2#,右側 |
1 | ||
| 84921-24030B3 |
GX110,JZX110..20,25 MD.CHARCOAL,TRIM1#,右側 |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-24030C0 |
GX110,JZX110..20,25 BLACK,TRIM2#,右側 |
1 | ||
| 84921-24030B3 |
GX110,JZX110..20,25 MD.CHARCOAL,TRIM1#,右側 |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-30210 |
GX110,JZX110..20,25 |
1 | ||
| Common parts | ||||
| 90109-06296 | ||||
| 90164-40103 | ||||
| 90167-40044 | ||||
| 90901-48003 | ||||
| 93319-A4010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
