JZX110-BEASH (2001)

Toyota Verossa

Production Jun 2001 - Apr 2004
Engine 1JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0106- )

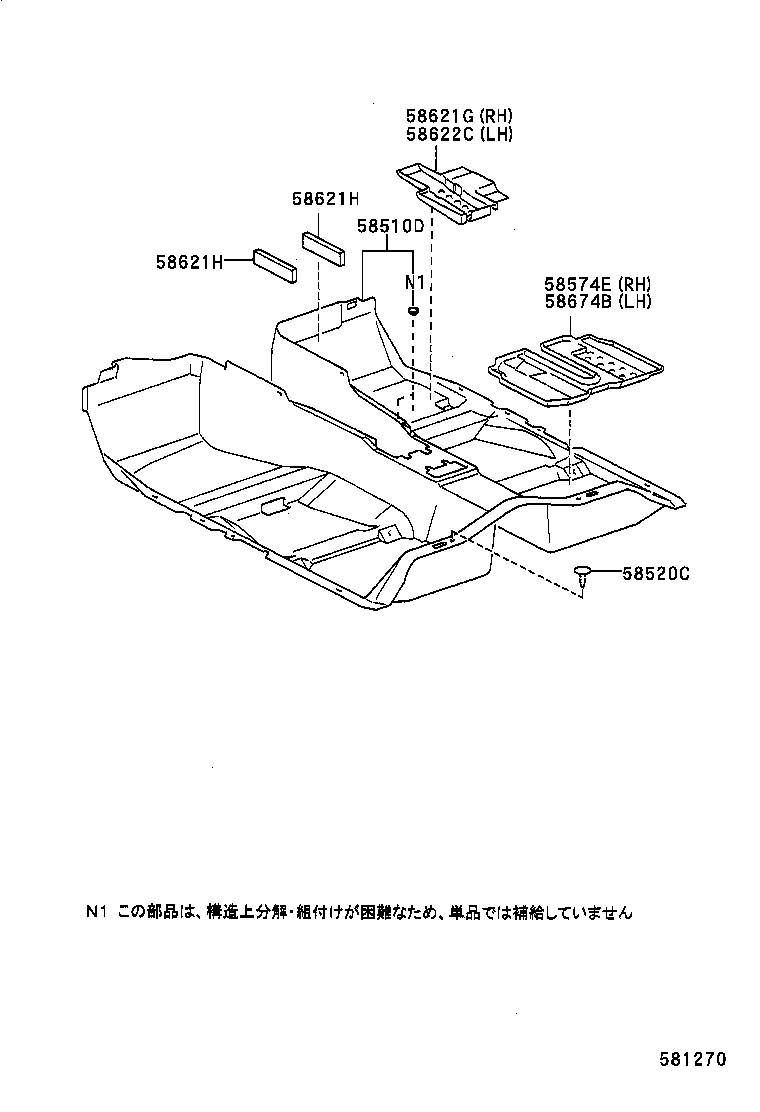

Click highlighted areas on diagram

diagram 58510D 58520C 58574E 58621G 58621H 58621H 58622C 58674B
Part # Description Qty Price
58510D - CARPET ASSY, FLOOR, FRONT
58510-2A790C0

JZX110..5F

BLACK,TRIM2#

 1
58510-2A770B0

GX110,JZX110..ATM

MEDIUM CHARCOAL,TRIM1#

 1
58510-2A770C0

GX110,JZX110..ATM

BLACK,TRIM2#

 1
58510-2A790B0

JZX110..5F

MEDIUM CHARCOAL,TRIM1#

 1
58510-2A800B0

GX110,JZX110..ATM

ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾌﾂﾄﾚｽﾄ),MEDIUM CHARCOAL,TRIM1#

 1
58510-2A820C0

JZX110..5F

ｶﾝﾚｲﾁ ｼﾖｳ,BLACK,TRIM2#

 1
58510-2A820B0

JZX110..5F

ｶﾝﾚｲﾁ ｼﾖｳ,MEDIUM CHARCOAL,TRIM1#

 1
58510-2A800C0

GX110,JZX110..ATM

ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾌﾂﾄﾚｽﾄ),BLACK,TRIM2#

 1
58510-2A740B0

GX110,JZX110..20,25

ｶﾝﾚｲﾁ ｼﾖｳ,MEDIUM CHARCOAL,TRIM1#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-06016C0

GX11#,JZX110

BLACK,TRIM1#,2#

 2
58574E - PAD, REAR FLOOR SILENCER, NO.1
58673-22011

GX11#,JZX110

 1
58621G - PAD, FRONT FLOOR SILENCER, RH
58621-22110

GX11#,JZX110

 1
58621H - PAD, FRONT FLOOR SILENCER
58573-22010

GX110,JZX110

 2
58621H - PAD, FRONT FLOOR SILENCER
58573-22010

GX110,JZX110

 2
58622C - PAD, FRONT FLOOR SILENCER, LH
58622-22050

GX110,JZX110

 1
58674B - PAD, REAR FLOOR SILENCER, NO.2
58674-22011

GX11#,JZX110

 1
