JZX110-BEASH (2001)
Toyota Verossa
Production
Jun 2001
-
Apr 2004
Engine
1JZFSE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0106- )1JZ#..ATM

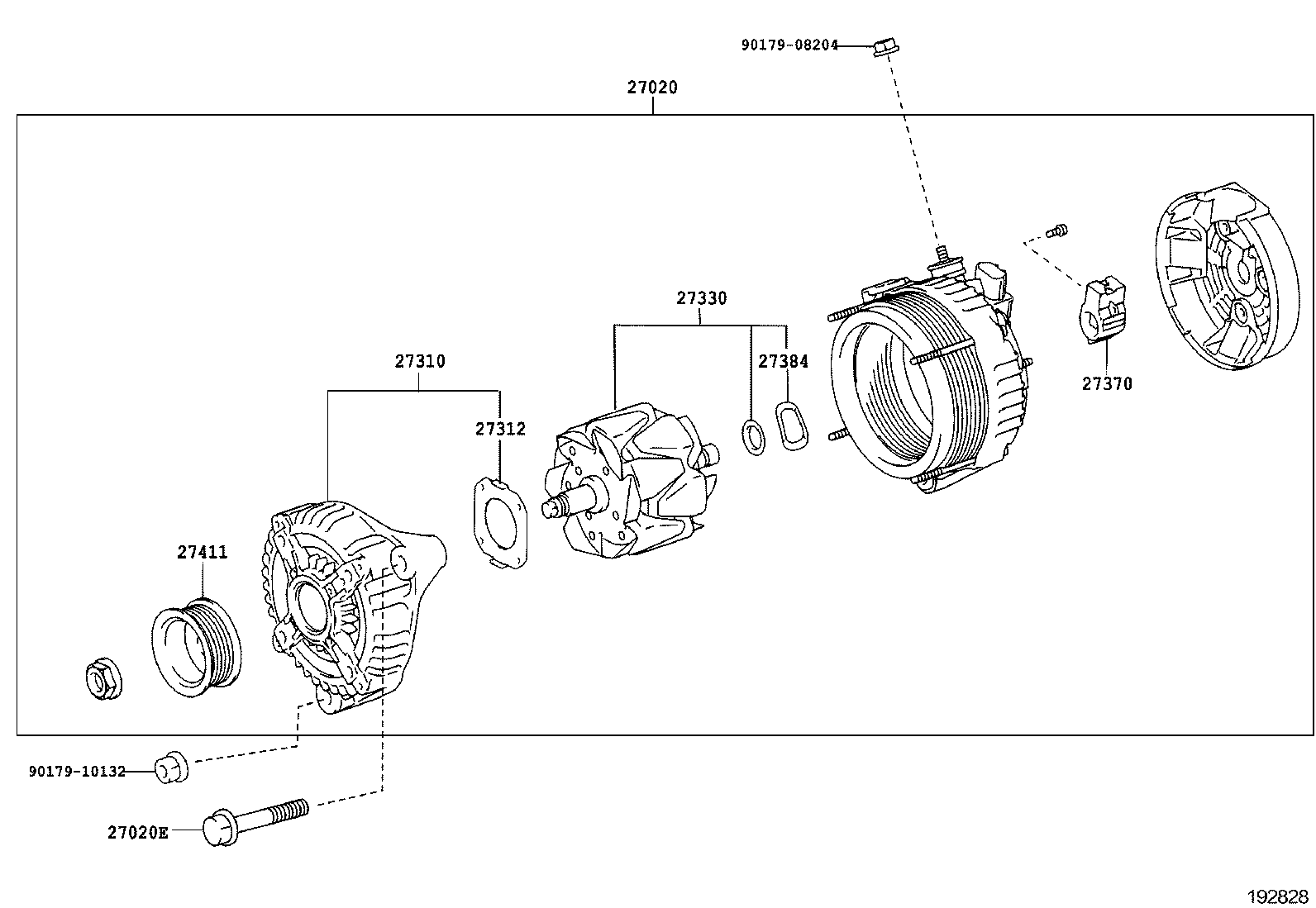

Click highlighted areas on diagram
12V 130A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-46320 |
1JZ#..JZX110..ATM 12V 130A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 91512-61050 |
1JZ#..JZX110 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-46350 |
1JZ#..JZX110..ATM |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
1JZ#..JZX110..ATM |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-20130 |
1JZ#..JZX110..ATM |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-20130 |
1JZ#..JZX110..ATM |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
1JZ#..JZX110..ATM |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-46080 |
1JZ#..JZX110 |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| 90179-10132 | ||||
