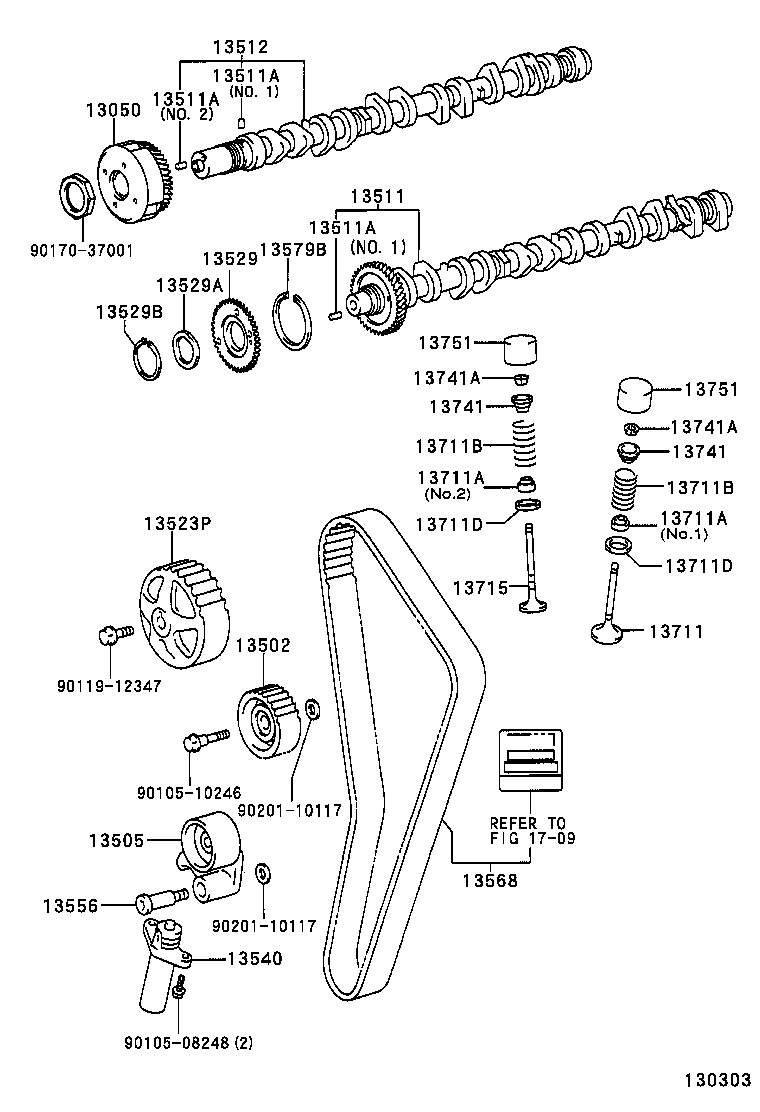

JZX110-BEASH (2001)
Toyota Verossa
(0106-0404)1JZFSE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13050 - GEAR ASSY, CAMSHAFT TIMING | ||||
| 13050-46020 |
1JZFSE..JZX110 |
1 | ||
| 13502 - IDLER SUB-ASSY, TIMING BELT, NO.2 | ||||
| 13503-46010 |
1JZFSE..JZX110 |
1 | ||
| 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 | ||||
| 13505-46080 |
1JZFSE..JZX110 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-46100 |
1JZFSE..JZX110 |
1 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90250-05027 |
1JZFSE..JZX110 長さ=8,外径=5,NO.1 |
3 | ||
| 90250-05022 |
1JZFSE..JZX110 長さ=10,外径=5,NO.2 |
1 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90250-05027 |
1JZFSE..JZX110 長さ=8,外径=5,NO.1 |
3 | ||
| 90250-05022 |
1JZFSE..JZX110 長さ=10,外径=5,NO.2 |
1 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90250-05027 |
1JZFSE..JZX110 長さ=8,外径=5,NO.1 |
3 | ||
| 90250-05022 |
1JZFSE..JZX110 長さ=10,外径=5,NO.2 |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-46040 |
1JZFSE..JZX110 |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-46050 |
1JZFSE..JZX110 |
1 | ||
| 13529 - GEAR, CAMSHAFT SUB | ||||
| 13529-70010 |
1JZFSE..JZX110 |
1 | ||
| 13529A - WASHER, WAVE(FOR CAMSHAFT SUB GEAR) | ||||
| 90206-42001 |
1JZFSE..JZX110 |
1 | ||
| 13529B - RING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR) | ||||
| 90520-41004 |
1JZFSE..JZX110 |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-46030 |
1JZ#..JZX110 |
1 | ||
| 13556 - SHAFT, TIMING BELT IDLER | ||||
| 13556-46010 |
1JZFSE..JZX110 |
1 | ||
| 13568 - BELT, TIMING | ||||
| 13568-49085 |
1JZFSE..JZX110 |
1 | ||
| 13579B - SPRING, CAMSHAFT GEAR | ||||
| 13579-70010 |
1JZFSE..JZX110 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-46040 |
1JZFSE..JZX110 |
12 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02088 |
1JZFSE..JZX110 NO.2 |
12 | ||
| 90913-02090 |
1JZ#..JZX110 NO.1 |
12 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02088 |
1JZFSE..JZX110 NO.2 |
12 | ||
| 90913-02090 |
1JZ#..JZX110 NO.1 |
12 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90905-01067 |
1JZFSE..JZX110 |
24 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90905-01067 |
1JZFSE..JZX110 |
24 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-16031 |
1JZFSE..JZX110 |
24 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-16031 |
1JZFSE..JZX110 |
24 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-46030 |
1JZFSE..JZX110 |
12 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-46030 |
1JZFSE..JZX110 |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-46030 |
1JZFSE..JZX110 |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03025 |
1JZFSE..JZX110 |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03025 |
1JZFSE..JZX110 |
48 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-46420 |
1JZFSE..JZX110 厚さ=5.12 |
24 | ||
| 13751-46470 |
1JZFSE..JZX110 厚さ=5.22 |
24 | ||
| 13751-46430 |
1JZFSE..JZX110 厚さ=5.14 |
24 | ||
| 13751-46410 |
1JZFSE..JZX110 厚さ=5.10 |
24 | ||
| 13751-46490 |
1JZFSE..JZX110 厚さ=5.26 |
24 | ||
| 13751-46400 |
1JZFSE..JZX110 厚さ=5.08 |
24 | ||
| 13751-46440 |
1JZFSE..JZX110 厚さ=5.16 |
24 | ||
| 13751-46540 |
1JZFSE..JZX110 厚さ=5.36 |
24 | ||
| 13751-46450 |
1JZFSE..JZX110 厚さ=5.18 |
24 | ||
| 13751-46460 |
1JZFSE..JZX110 厚さ=5.20 |
24 | ||
| 13751-46500 |
1JZFSE..JZX110 厚さ=5.28 |
24 | ||
| 13751-46390 |
1JZFSE..JZX110 厚さ=5.06 |
24 | ||
| 13751-46550 |
1JZFSE..JZX110 厚さ=5.38 |
24 | ||
| 13751-46590 |
1JZFSE..JZX110 厚さ=5.46 |
24 | ||
| 13751-46580 |
1JZFSE..JZX110 厚さ=5.44 |
24 | ||
| 13751-46640 |
1JZFSE..JZX110 厚さ=5.56 |
24 | ||
| 13751-46480 |
1JZFSE..JZX110 厚さ=5.24 |
24 | ||
| 13751-46670 |
1JZFSE..JZX110 厚さ=5.62 |
24 | ||
| 13751-46610 |
1JZFSE..JZX110 厚さ=5.50 |
24 | ||
| 13751-46630 |
1JZFSE..JZX110 厚さ=5.54 |
24 | ||
| 13751-46510 |
1JZFSE..JZX110 厚さ=5.30 |
24 | ||
| 13751-46600 |
1JZFSE..JZX110 厚さ=5.48 |
24 | ||
| 13751-46690 |
1JZFSE..JZX110 厚さ=5.66 |
24 | ||
| 13751-46680 |
1JZFSE..JZX110 厚さ=5.64 |
24 | ||
| 13751-46520 |
1JZFSE..JZX110 厚さ=5.32 |
24 | ||
| 13751-46620 |
1JZFSE..JZX110 厚さ=5.52 |
24 | ||
| 13751-46720 |
1JZFSE..JZX110 厚さ=5.72 |
24 | ||
| 13751-46560 |
1JZFSE..JZX110 厚さ=5.40 |
24 | ||
| 13751-46660 |
1JZFSE..JZX110 厚さ=5.60 |
24 | ||
| 13751-46530 |
1JZFSE..JZX110 厚さ=5.34 |
24 | ||
| 13751-46710 |
1JZFSE..JZX110 厚さ=5.70 |
24 | ||
| 13751-46700 |
1JZFSE..JZX110 厚さ=5.68 |
24 | ||
| 13751-46570 |
1JZFSE..JZX110 厚さ=5.42 |
24 | ||
| 13751-46650 |
1JZFSE..JZX110 厚さ=5.58 |
24 | ||
| 13751-46730 |
1JZFSE..JZX110 厚さ=5.74 |
24 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-46420 |
1JZFSE..JZX110 厚さ=5.12 |
24 | ||
| 13751-46470 |
1JZFSE..JZX110 厚さ=5.22 |
24 | ||
| 13751-46430 |
1JZFSE..JZX110 厚さ=5.14 |
24 | ||
| 13751-46410 |
1JZFSE..JZX110 厚さ=5.10 |
24 | ||
| 13751-46490 |
1JZFSE..JZX110 厚さ=5.26 |
24 | ||
| 13751-46400 |
1JZFSE..JZX110 厚さ=5.08 |
24 | ||
| 13751-46440 |
1JZFSE..JZX110 厚さ=5.16 |
24 | ||
| 13751-46540 |
1JZFSE..JZX110 厚さ=5.36 |
24 | ||
| 13751-46450 |
1JZFSE..JZX110 厚さ=5.18 |
24 | ||
| 13751-46460 |
1JZFSE..JZX110 厚さ=5.20 |
24 | ||
| 13751-46500 |
1JZFSE..JZX110 厚さ=5.28 |
24 | ||
| 13751-46390 |
1JZFSE..JZX110 厚さ=5.06 |
24 | ||
| 13751-46550 |
1JZFSE..JZX110 厚さ=5.38 |
24 | ||
| 13751-46590 |
1JZFSE..JZX110 厚さ=5.46 |
24 | ||
| 13751-46580 |
1JZFSE..JZX110 厚さ=5.44 |
24 | ||
| 13751-46640 |
1JZFSE..JZX110 厚さ=5.56 |
24 | ||
| 13751-46480 |
1JZFSE..JZX110 厚さ=5.24 |
24 | ||
| 13751-46670 |
1JZFSE..JZX110 厚さ=5.62 |
24 | ||
| 13751-46610 |
1JZFSE..JZX110 厚さ=5.50 |
24 | ||
| 13751-46630 |
1JZFSE..JZX110 厚さ=5.54 |
24 | ||
| 13751-46510 |
1JZFSE..JZX110 厚さ=5.30 |
24 | ||
| 13751-46600 |
1JZFSE..JZX110 厚さ=5.48 |
24 | ||
| 13751-46690 |
1JZFSE..JZX110 厚さ=5.66 |
24 | ||
| 13751-46680 |
1JZFSE..JZX110 厚さ=5.64 |
24 | ||
| 13751-46520 |
1JZFSE..JZX110 厚さ=5.32 |
24 | ||
| 13751-46620 |
1JZFSE..JZX110 厚さ=5.52 |
24 | ||
| 13751-46720 |
1JZFSE..JZX110 厚さ=5.72 |
24 | ||
| 13751-46560 |
1JZFSE..JZX110 厚さ=5.40 |
24 | ||
| 13751-46660 |
1JZFSE..JZX110 厚さ=5.60 |
24 | ||
| 13751-46530 |
1JZFSE..JZX110 厚さ=5.34 |
24 | ||
| 13751-46710 |
1JZFSE..JZX110 厚さ=5.70 |
24 | ||
| 13751-46700 |
1JZFSE..JZX110 厚さ=5.68 |
24 | ||
| 13751-46570 |
1JZFSE..JZX110 厚さ=5.42 |
24 | ||
| 13751-46650 |
1JZFSE..JZX110 厚さ=5.58 |
24 | ||
| 13751-46730 |
1JZFSE..JZX110 厚さ=5.74 |
24 | ||
| Common parts | ||||
| 90105-08248 | ||||
| 90105-10246 | ||||
| 90119-12347 | ||||
| 90170-37001 | ||||
| 90201-10117 | ||||
| Linked diagrams | ||||
| 1709 | ||||
