GX115-BEPSK (2001)

Toyota Verossa

Production Jun 2001 - Apr 2004
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

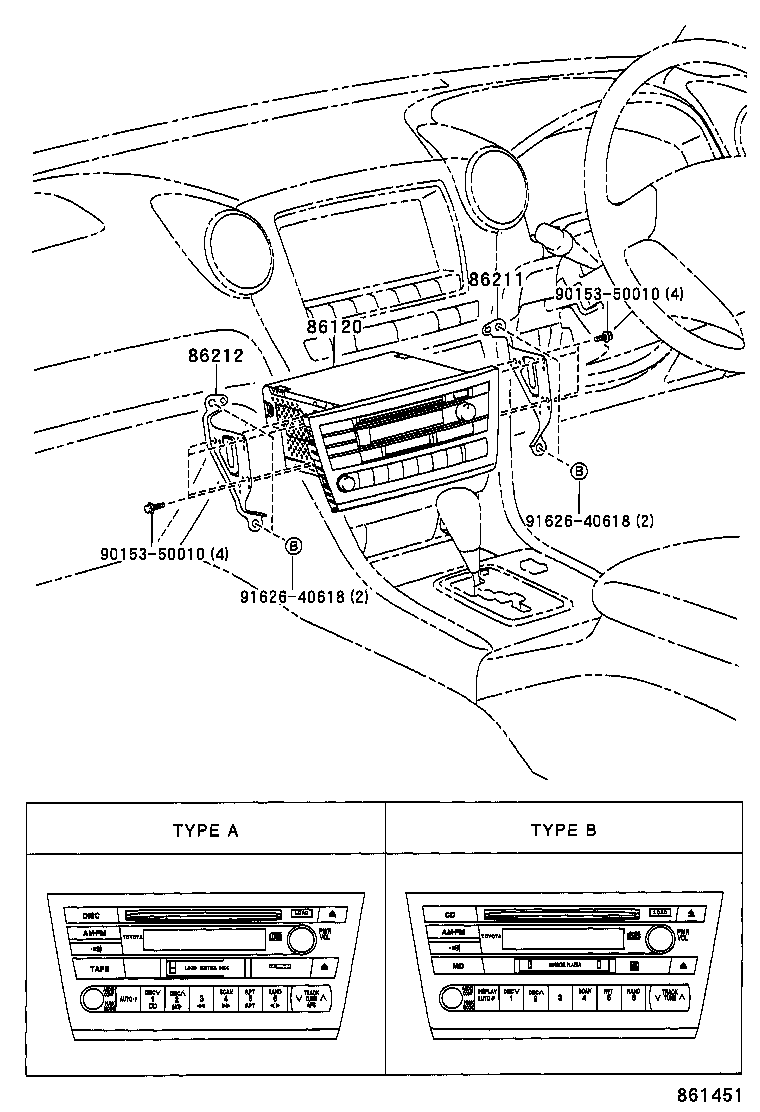

ILLUST NO. 1 OF 2(0106- )

Click highlighted areas on diagram

diagram 86120 86211 86212 9015350010 9015350010 9162640618 9162640618
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-2A460

GX11#,JZX110..20,25

MATSUSHITA,ID=55840,TYPE A:ｲﾗｽﾄ参照

 1
86120-2A421

GX11#,JZX110..20,25

MATSUSHITA,ID=50315,TYPE B:ｲﾗｽﾄ参照

 1
86120-2A431

GX11#,JZX110..20,25

MATSUSHITA,ID=55841,TYPE C:ｲﾗｽﾄ参照

 1
86120-2A440

GX11#,JZX110

MATSUSHITA,ID=55835,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ-)

 1
86120-2A411

GX11#,JZX110..20,25

MATSUSHITA,ID=55842,TYPE A:ｲﾗｽﾄ参照

 1
86120-2A450

GX11#,JZX110

MATSUSHITA,ID=50306,TYPE B:ｲﾗｽﾄ参照

 1
86211 - BRACKET, RADIO, NO.1
86211-22200

GX11#,JZX110

 1
86212 - BRACKET, RADIO, NO.2
86212-22180

GX11#,JZX110

 1
Common parts
90153-50010
91626-40618

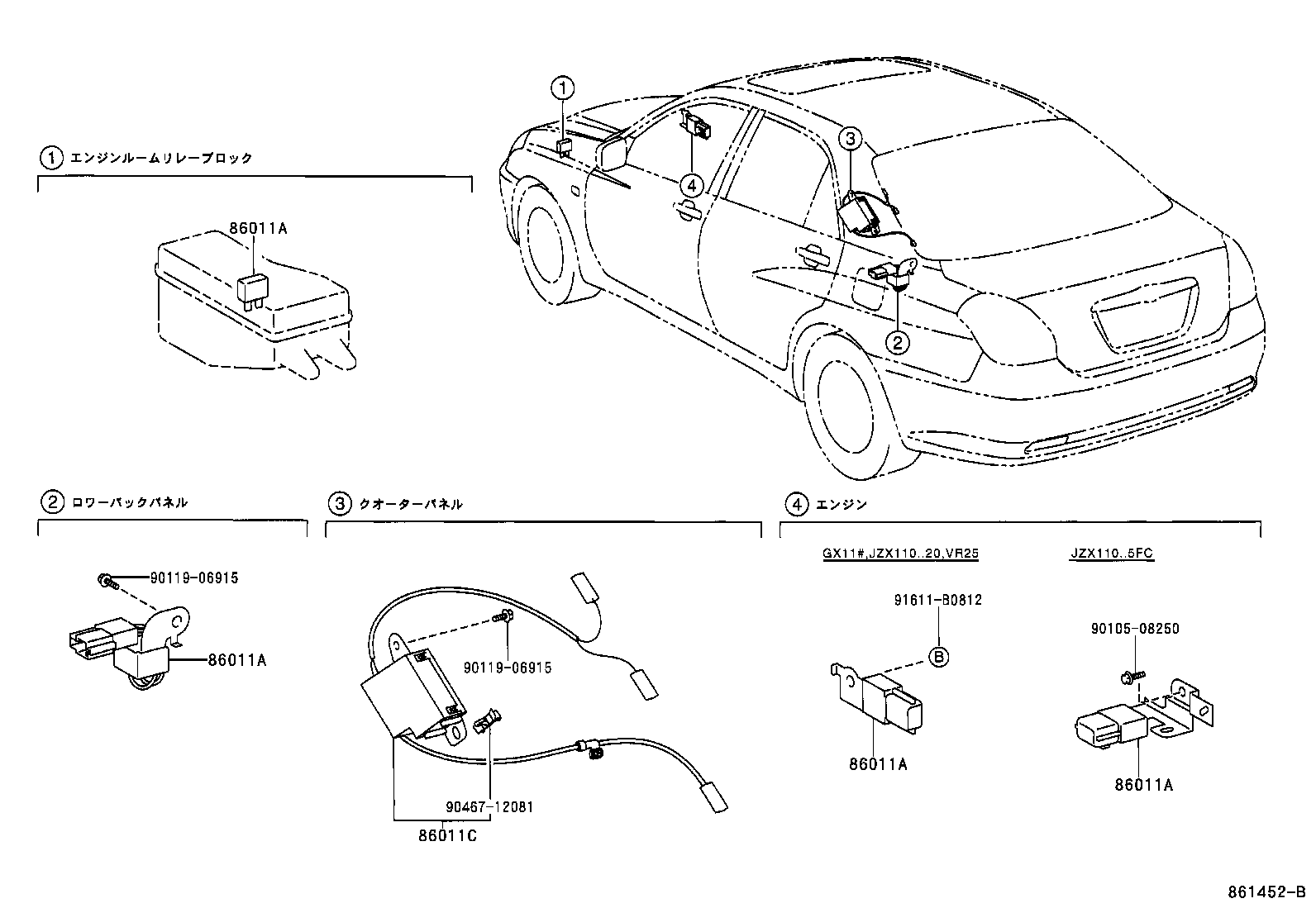

ILLUST NO. 2 OF 2(0106- )

Click highlighted areas on diagram

ｺﾝﾃﾞﾝｻ

diagram 86011A 86011A 86011A 86011A 86011C 9010508250 9011906915 9011906915 9046712081 91611B0812
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04160

GX11#,JZX110

下側ﾊﾞｯｸﾊﾟﾈﾙ

 1
90980-04132

GX11#,JZX110..20,VR25

ｴﾝｼﾞﾝ

 1
90980-04161

GX11#,JZX110

ｴﾝｼﾞﾝ ﾙ-ﾑ ﾘﾚ-ﾌﾞﾛﾂｸ

 1
86011A - CONDENSER, RADIO SETTING
90980-04160

GX11#,JZX110

下側ﾊﾞｯｸﾊﾟﾈﾙ

 1
90980-04132

GX11#,JZX110..20,VR25

ｴﾝｼﾞﾝ

 1
90980-04161

GX11#,JZX110

ｴﾝｼﾞﾝ ﾙ-ﾑ ﾘﾚ-ﾌﾞﾛﾂｸ

 1
86011A - CONDENSER, RADIO SETTING
90980-04160

GX11#,JZX110

下側ﾊﾞｯｸﾊﾟﾈﾙ

 1
90980-04132

GX11#,JZX110..20,VR25

ｴﾝｼﾞﾝ

 1
90980-04161

GX11#,JZX110

ｴﾝｼﾞﾝ ﾙ-ﾑ ﾘﾚ-ﾌﾞﾛﾂｸ

 1
86011A - CONDENSER, RADIO SETTING
90980-04160

GX11#,JZX110

下側ﾊﾞｯｸﾊﾟﾈﾙ

 1
90980-04132

GX11#,JZX110..20,VR25

ｴﾝｼﾞﾝ

 1
90980-04161

GX11#,JZX110

ｴﾝｼﾞﾝ ﾙ-ﾑ ﾘﾚ-ﾌﾞﾛﾂｸ

 1
86011C - FILTER, NOISE
90980-05350

GX11#,JZX110

 1
Common parts
90105-08250
90119-06915
90467-12081
91611-B0812
