GX115-BEPSK (2001)
Toyota Verossa
Production
Jun 2001
-
Apr 2004
Engine
1GFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0106- )

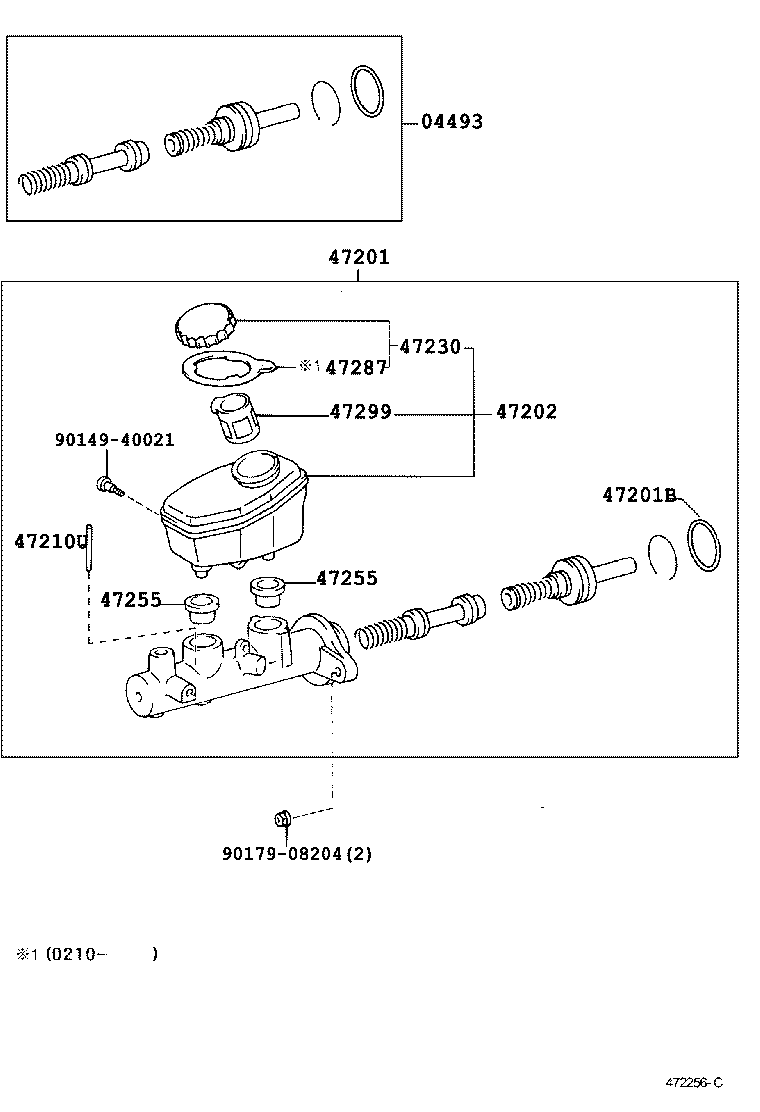

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-30300 |
GX115,JZX110..20,25,V25 |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-30741 |
GX115,JZX110..20,25,V25 |
1 | ||
| 47201-2A080 |
GX115,JZX110..20,25,V25 |
1 | ||
| 47201B - RING, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-20059 |
GX11#,JZX110 |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-22100 |
GX11# |
1 | ||
| 47220-30160 |
GX11#,JZX110..20,25,V25 |
1 | ||
| 47210U - PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-14204 |
GX11#,JZX110 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20100 |
GX11#,JZX110 |
1 | ||
| 47230-24010 |
GX11#,JZX110 |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
GX11#,JZX110 |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
GX11#,JZX110 |
2 | ||
| 47287 - LABEL, BRAKE FLUID INFORMATION | ||||
| 47287-20010 |
GX11#,JZX110 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20060 |
GX11#,JZX110 |
1 | ||
| Common parts | ||||
| 90149-40021 | ||||
| 90179-08204 | ||||
