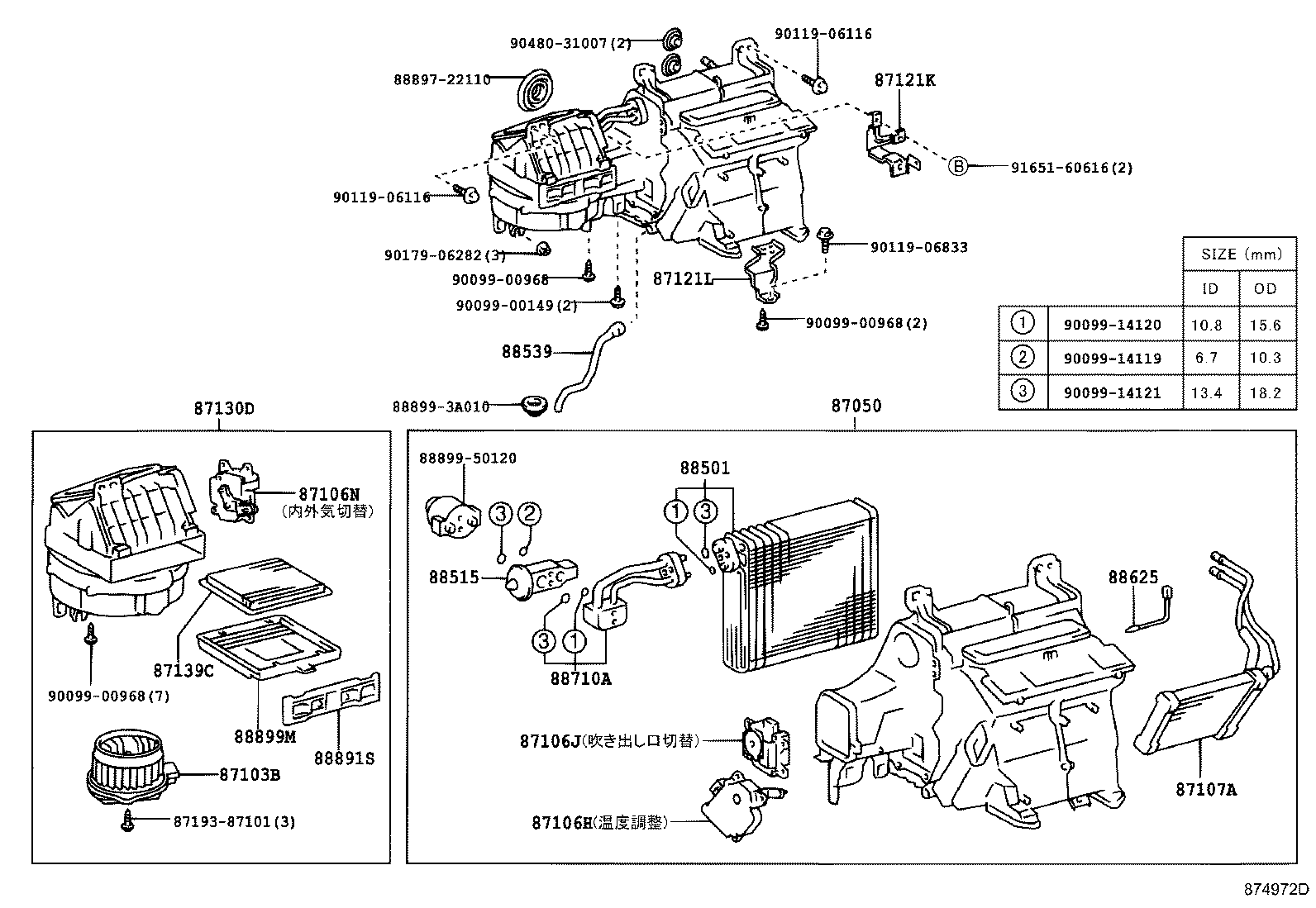

Toyota Verossa GX110 HEATING & AIR CONDITIONING - COOLER UNIT

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-22020	GX11#	06/2001 - 04/2004	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-22130	GX11#,JZX110	06/2001 - 07/2001	1
87103-30430	GX11#,JZX110	08/2001 - 04/2004	1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-30350	GX11#,JZX110	06/2001 - 07/2003	1
87106-30351	GX11#,JZX110	07/2003 - 04/2004	1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-30361	GX11#,JZX110	06/2001 - 04/2004	1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-53010	GX11#,JZX110	06/2001 - 04/2004	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-53020	GX11#,JZX110	06/2001 - 04/2004	1
87121K - BRACKET, HEATER
87121-53020	GX11#,JZX110	06/2001 - 04/2004	1
87121L - BRACKET, HEATER
87121-22010	GX11#,JZX110	06/2001 - 04/2004	1
87130D - BLOWER ASSY
87130-22350	GX11#,JZX110	06/2001 - 04/2004	1
87139C - FILTER, CLEAN AIR
87139-50030	GX11#,JZX110 ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ	06/2001 - 04/2004	1
87139-48030	GX11#,JZX110	06/2001 - 04/2004	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-3A050	GX11#,JZX110	06/2001 - 04/2004	1
88515 - VALVE, COOLER EXPANSION
88515-48040	GX11#	06/2001 - 03/2004	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-30870	GX110,JZX110	10/2001 - 04/2004	1
88539-51010	GX110,JZX110	06/2001 - 10/2001	1
88625 - THERMISTOR, COOLER, NO.1
88625-3A120	GX11#,JZX110	06/2001 - 07/2001	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-3A140	GX11#,JZX110	06/2001 - 04/2004	1
88891S - COVER, COOLER, NO.1
88891-30680	GX11#,JZX110	06/2001 - 04/2004	1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-22380	GX11#,JZX110 ｱﾘ(ｸﾘ-ﾝｴｱﾌｲﾙﾀ)	06/2001 - 04/2004	1
88899-30870	GX11#,JZX110	06/2001 - 04/2004	1
Common parts
87193-87101
88897-22110
88899-3A010
88899-50120
90099-00149
90099-00968
90099-14119
90099-14120
90099-14121
90119-06116
90119-06833
90179-06282
90480-31007
91651-60616

GX110-BEPSK (2001)

(0106-0404)
