GX110-BEPSK (2001)

Toyota Verossa

Production Jun 2001 - Apr 2004
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

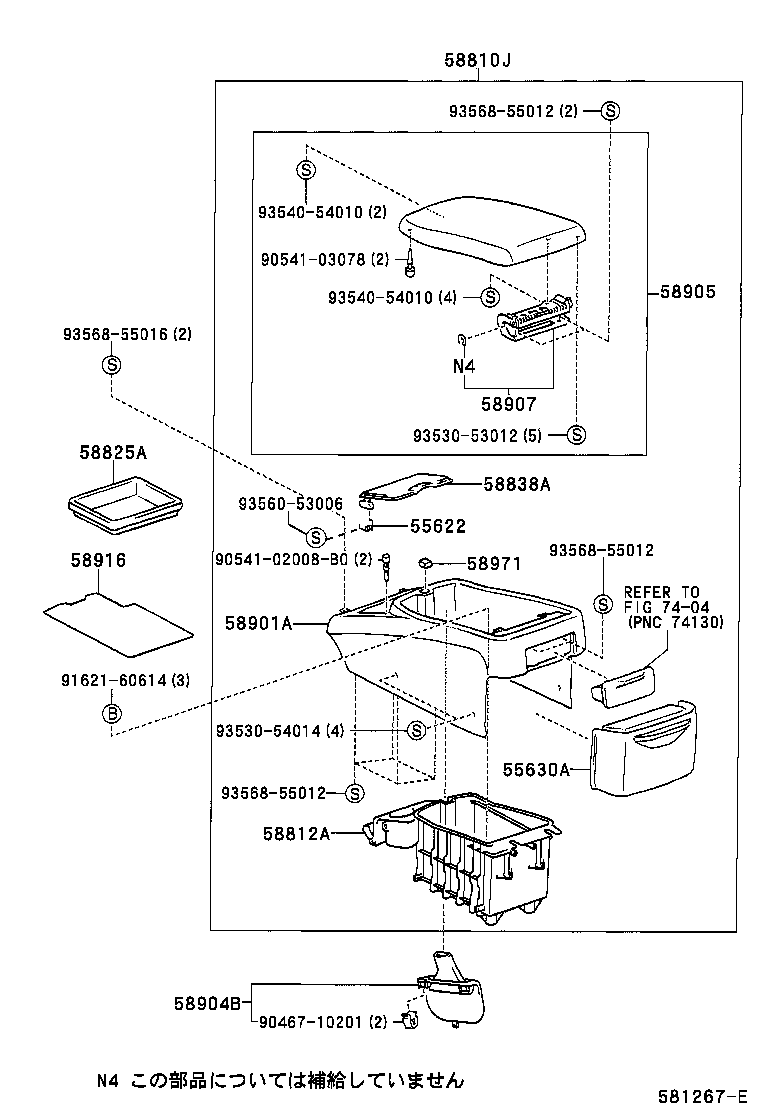

ILLUST NO. 2 OF 2(0106- )

Click highlighted areas on diagram

diagram 55622 55630A 58810J 58812A 58825A 58838A 58901A 58904B 58905 58907 58916 58971 7404 9046710201 9054102008B0 9054103078 9162160614 9353053012 9353054014 9354054010 9354054010 9356053006 9356855012 9356855012 9356855012 9356855016
Part # Description Qty Price
55622 - SPRING, INSTR PANEL CUP HOLDER, NO.1
55622-22020

GX11#,JZX110

 1
55630A - HOLDER, REAR CONSOLE BOX, CUP
55630-22030B0

GX11#,JZX110

MD.CHARCOAL,TRIM1#

 1
55630-22030C0

GX11#,JZX110

BLACK,TRIM2#

 1
58810J - BOX ASSY, CONSOLE
58810-22860C0

GX110

ｾﾚﾁｵ-ﾈV *(V),ｾﾚﾁｵ-ﾈVﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(N),BLACK,TRIM20

 1
58810-22820B1

GX11#,JZX110..20,25

ﾄﾘﾑ = TYPE B-*104,MD.CHARCOAL,TRIM1#

 1
58810-22860B0

GX110

ﾄﾘﾑ = TYPE A-*104,MD.CHARCOAL,TRIM1#

 1
58810-22860C0

GX110

ﾄﾘﾑ = TYPE A-*104,BLACK,TRIM2#

 1
58810-22A00B0

GX11#,JZX110..20,25

ﾄﾘﾑ = TYPE D-*104,MD.CHARCOAL,TRIM1#

 1
58810-22820C0

GX11#,JZX110..20,25

ﾄﾘﾑ = TYPE B-*104,BLACK,TRIM2#

 1
58812A - BOX, CONSOLE, LOWER
58812-22140

GX11#,JZX110

 1
58825A - POCKET, CONSOLE BOX
58825-22030

GX11#,JZX110

 1
58838A - DOOR, CONSOLE CUP HOLDER BOX
58838-22030C0

GX11#,JZX110

BLACK,TRIM2#

 1
58838-22030B0

GX11#,JZX110

MD.CHARCOAL,TRIM1#

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58911-22160C0

GX11#,JZX110

BLACK,TRIM2#

 1
58911-22160B0

GX11#,JZX110

MD.CHARCOAL,TRIM1#

 1
58904B - COVER SUB-ASSY, PARKING BRAKE HOLE
58904-22050B0

GX11#,JZX110

MD.CHARCOAL,TRIM10

 1
58904-22050C0

GX11#,JZX110

BLACK,TRIM10,2#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-22590C0

GX110

ｾﾚﾁｵ-ﾈV *(V),ｾﾚﾁｵ-ﾈVﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(N),BLACK,TRIM20

 1
58905-22550B1

GX11#,JZX110..20,25

ﾄﾘﾑ = TYPE B-*104,MD.CHARCOAL,TRIM1#

 1
58905-22590C0

GX110

ﾄﾘﾑ = TYPE A-*104,BLACK,TRIM2#

 1
58905-22590B0

GX110

ﾄﾘﾑ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

 1
58905-22550C0

GX11#,JZX110..20,25

ﾄﾘﾑ = TYPE B-*104,BLACK,TRIM2#

 1
58905-22630B0

GX11#,JZX110..20,25

ﾄﾘﾑ = TYPE D-*104,MEDIUM CHARCOAL,TRIM1#

 1
58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58907-22050

GX11#,JZX110

 1
58916 - MAT, BOX BOTTOM
58916-22130

GX11#,JZX110

 1
58971 - LOCK, CONSOLE COMPARTMENT DOOR
58971-22040

GX11#,JZX110

 1
Common parts
90467-10201
90541-02008B0
90541-03078
91621-60614
93530-53012
93530-54014
93540-54010
93560-53006
93568-55012
93568-55016
Linked diagrams
7404

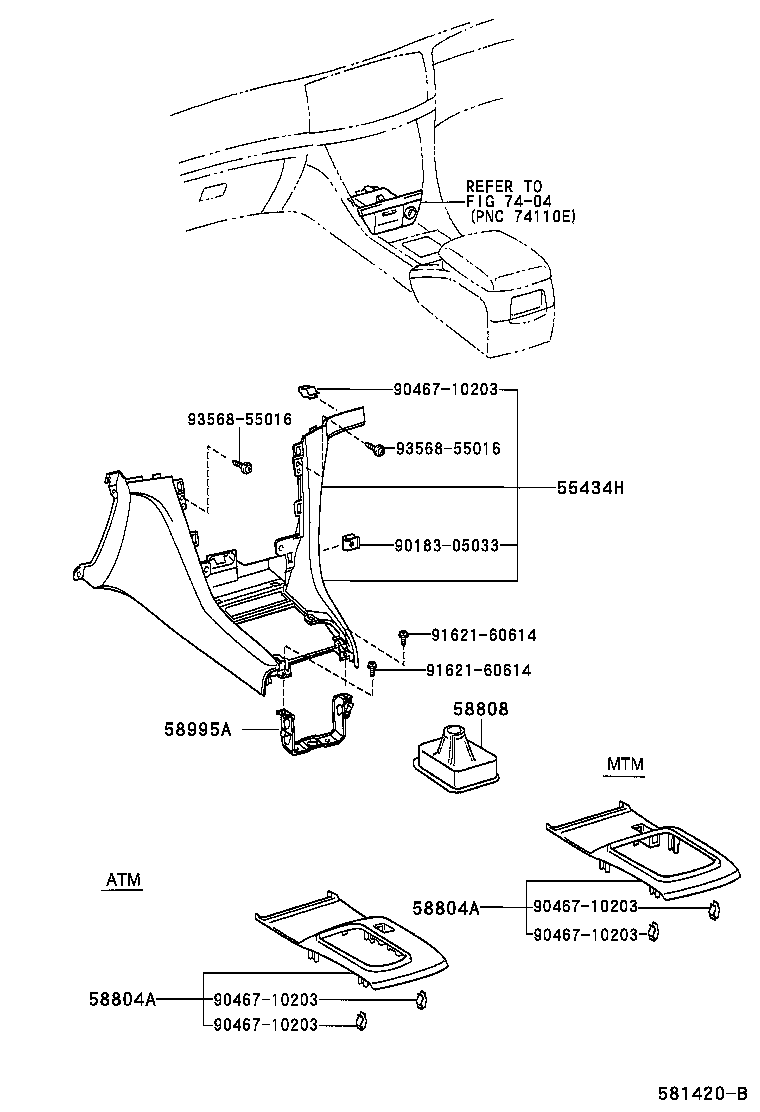

ILLUST NO. 1 OF 2(0106- )

Click highlighted areas on diagram

diagram 55434H 58804A 58804A 58808 58995A 7404 9018305033 9046710203 9046710203 9046710203 9046710203 9046710203 9162160614 9162160614 9356855016 9356855016
Part # Description Qty Price
55434H - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
55434-22140C0

GX11#,JZX110

BLACK,TRIM2#

 1
55434-22140B0

GX11#,JZX110

MD.CHARCOAL,TRIM1#

 1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-22320B1

GX11#,JZX110..ATM

ﾄﾘﾑ = TYPE A OR TYPE B OR TYPE C-*104,GRAY,TRIM1#,2#

 1
58804-22360E0

GX11#,JZX110..20,25

ﾄﾘﾑ = TYPE D-*104,BROWN,TRIM1#

 1
58804-22320E0

GX11#

Lｴﾃﾞｲｼﾖﾝ *(L),Lｴﾃﾞｲｼﾖﾝﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(P),YELLOWISH BROWN,TRIM10

 1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-22320B1

GX11#,JZX110..ATM

ﾄﾘﾑ = TYPE A OR TYPE B OR TYPE C-*104,GRAY,TRIM1#,2#

 1
58804-22360E0

GX11#,JZX110..20,25

ﾄﾘﾑ = TYPE D-*104,BROWN,TRIM1#

 1
58804-22320E0

GX11#

Lｴﾃﾞｲｼﾖﾝ *(L),Lｴﾃﾞｲｼﾖﾝﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(P),YELLOWISH BROWN,TRIM10

 1
Common parts
90183-05033
90467-10203
91621-60614
93568-55016
Linked diagrams
7404
