GX110-BEPSK (2001)
Toyota Verossa
(0106- )GX110,JZX110

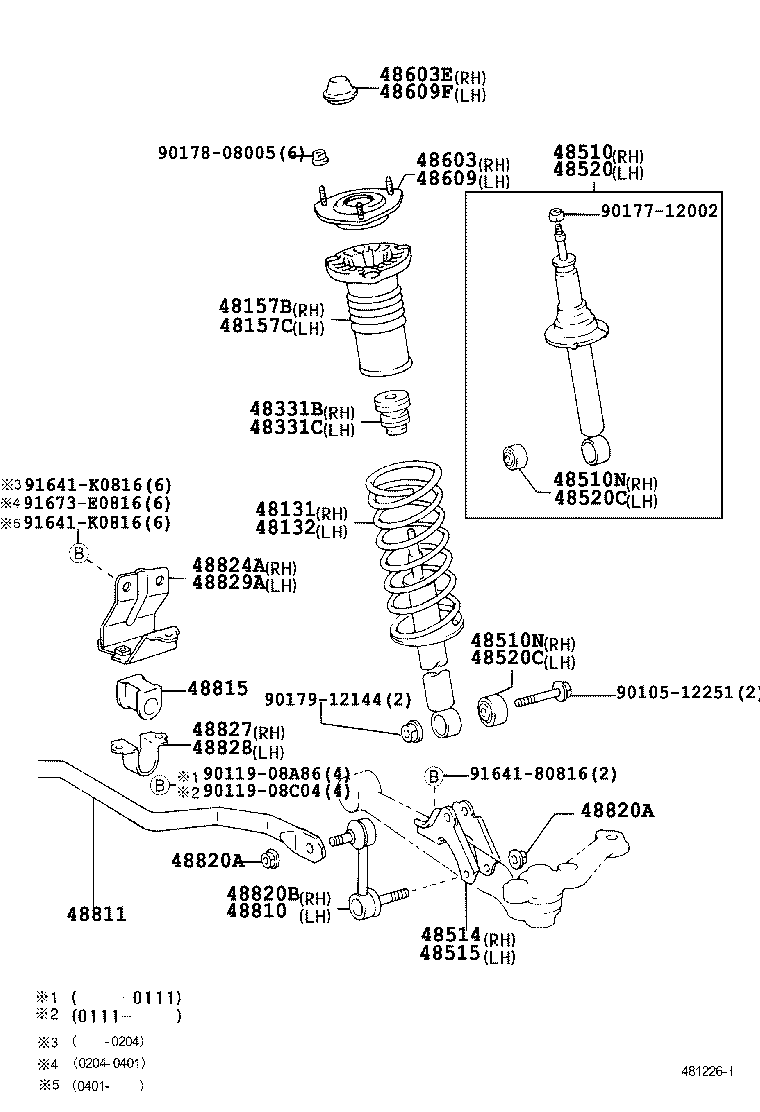

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-2C270 |
GX110 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-2C270 |
GX110 |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-22040 |
GX110,JZX110 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-22040 |
GX110,JZX110 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-30130 |
GX11#,JZX110 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-30130 |
GX11#,JZX110 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-80048 |
GX110 ﾏｰｸ 48510−22890,ｾﾚﾁｵ-ﾈV *(V),ｾﾚﾁｵ-ﾈVﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(N) |
1 | ||
| 48510-80048 |
GX110 ﾏｰｸ 48510−22890,ｾﾚﾁｵ-ﾈV *(V),ｾﾚﾁｵ-ﾈVﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(N) |
1 | ||
| 48510-29835 |
GX110 ﾏｰｸ 48510−22740 |
1 | ||
| 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) | ||||
| 90389-12016 |
GX110 |
1 | ||
| 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) | ||||
| 90389-12016 |
GX110 |
1 | ||
| 48514 - BRACKET, FRONT SHOCK ABSORBER, LOWER RH | ||||
| 48514-22010 |
GX110,JZX110 |
1 | ||
| 48515 - BRACKET, FRONT SHOCK ABSORBER, LOWER LH | ||||
| 48515-22010 |
GX110,JZX110 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-80048 |
GX110 ﾏｰｸ 48510−22890,ｾﾚﾁｵ-ﾈV *(V),ｾﾚﾁｵ-ﾈVﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(N) |
1 | ||
| 48510-80048 |
GX110 ﾏｰｸ 48510−22890,ｾﾚﾁｵ-ﾈV *(V),ｾﾚﾁｵ-ﾈVﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(N) |
1 | ||
| 48510-29835 |
GX110 ﾏｰｸ 48510−22740 |
1 | ||
| 48520C - BUSH(FOR FRONT SHOCK ABSORBER LH) | ||||
| 90389-12016 |
GX110 |
1 | ||
| 48520C - BUSH(FOR FRONT SHOCK ABSORBER LH) | ||||
| 90389-12016 |
GX110 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48680-30160 |
GX110,JZX110..20,25 |
1 | ||
| 48603E - PLUG, HOLE(FOR FRONT SUSPENSION SUPPORT RH) | ||||
| 90950-01659 |
GX11#,JZX110 |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48680-30160 |
GX110,JZX110..20,25 |
1 | ||
| 48609F - PLUG, HOLE(FOR FRONT SUSPENSION SUPPORT LH) | ||||
| 90950-01659 |
GX11#,JZX110 |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-22041 |
GX110,JZX110 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-51010 |
GX110 ｾﾚﾁｵ-ﾈV *(V),ｾﾚﾁｵ-ﾈVﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(N) |
1 | ||
| 48811-22550 |
GX110,JZX110..20,25,VR25 |
1 | ||
| 48811-51010 |
GX110 ｾﾚﾁｵ-ﾈV *(V),ｾﾚﾁｵ-ﾈVﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(N) |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-22240 |
GX110 ｾﾚﾁｵ-ﾈV *(V),ｾﾚﾁｵ-ﾈVﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(N) |
2 | ||
| 48815-22260 |
GX110,JZX110..20,25,VR25 |
2 | ||
| 48815-22240 |
GX110 ｾﾚﾁｵ-ﾈV *(V),ｾﾚﾁｵ-ﾈVﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(N) |
2 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12047 |
GX110,JZX110 ﾌﾞﾗｹｯﾄ側 |
2 | ||
| 90179-10054 |
GX110,JZX110 ｽﾀﾋﾞﾗｲｻﾞﾊﾞｰ側 |
2 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12047 |
GX110,JZX110 ﾌﾞﾗｹｯﾄ側 |
2 | ||
| 90179-10054 |
GX110,JZX110 ｽﾀﾋﾞﾗｲｻﾞﾊﾞｰ側 |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-22041 |
GX110,JZX110 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48809-30020 |
GX110,JZX110 |
1 | ||
| 48809-30021 |
GX110,JZX110 |
1 | ||
| 48827 - BRACKET, FRONT STABILIZER, NO.2 RH | ||||
| 48824-22090 |
GX110,JZX110 |
1 | ||
| 48828 - BRACKET, FRONT STABILIZER, NO.2 LH | ||||
| 48824-22090 |
GX110,JZX110 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48809-30030 |
GX110,JZX110 |
1 | ||
| 48809-30031 |
GX110,JZX110 |
1 | ||
| Common parts | ||||
| 90105-12251 | ||||
| 90119-08A86 | ||||
| 90119-08C04 | ||||
| 90177-12002 | ||||
| 90178-08005 | ||||
| 90179-12144 | ||||
| 91641-80816 | ||||
| 91641-K0816 | ||||
| 91673-E0816 | ||||
