RY32-JDP (1982)
Toyota Toyoace
Production
Jan 1982
-
Jul 1985
Engine
5R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8308-8408)B

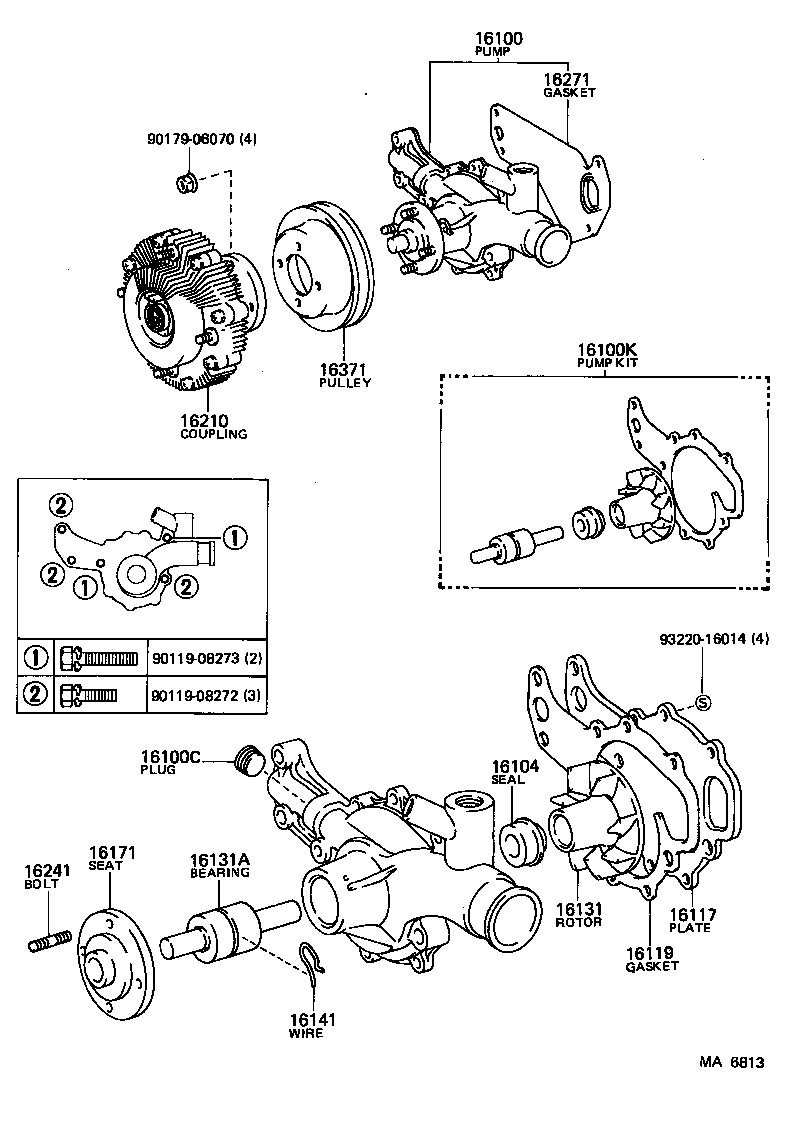

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-49415 |
5R..RY3# |
1 | ||
| 16104 - SEAL SET, WATER PUMP | ||||
| 16104-15020 |
12R,5R..RY21,32 |
1 | ||
| 16104-41111 |
12R,5R..RY21,32 |
1 | ||
| 16117 - PLATE, WATER PUMP | ||||
| 16117-44010 |
5R..RY3# |
1 | ||
| 16119 - GASKET, WATER PUMP BODY | ||||
| 16119-44010 |
5R..RY3# |
1 | ||
| 16131 - ROTOR, WATER PUMP | ||||
| 16131-44070 |
5R..RY3# |
1 | ||
| 16131A - BEARING, WATER PUMP | ||||
| 90369-30063 |
5R..RY3# |
1 | ||
| 16171 - SEAT, WATER PUMP PULLEY | ||||
| 16171-24031 |
12R,5R..RY2#,3# |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-44010 |
5R..RY3# |
1 | ||
| Common parts | ||||
| 90119-08272 | ||||
| 90119-08273 | ||||
| 90179-06070 | ||||
| 93220-16014 | ||||
(8408- )B
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-49415 |
5R..RY3# |
1 | ||
| 16104 - SEAL SET, WATER PUMP | ||||
| 16104-15020 |
12R,5R..RY21,32 |
1 | ||
| 16104-41111 |
12R,5R..RY21,32 |
1 | ||
| 16117 - PLATE, WATER PUMP | ||||
| 16117-44010 |
5R..RY3# |
1 | ||
| 16119 - GASKET, WATER PUMP BODY | ||||
| 16119-44010 |
5R..RY3# |
1 | ||
| 16131 - ROTOR, WATER PUMP | ||||
| 16131-44070 |
5R..RY3# |
1 | ||
| 16131A - BEARING, WATER PUMP | ||||
| 90369-30063 |
5R..RY3# |
1 | ||
| 16171 - SEAT, WATER PUMP PULLEY | ||||
| 16171-24031 |
12R,5R..RY2#,3# |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-44010 |
5R..RY3# |
1 | ||
| Common parts | ||||
| 90119-08272 | ||||
| 90119-08273 | ||||
| 90179-06070 | ||||
| 93220-16014 | ||||
