RY32-JDD (1982)
Toyota Toyoace
(8201- )5R

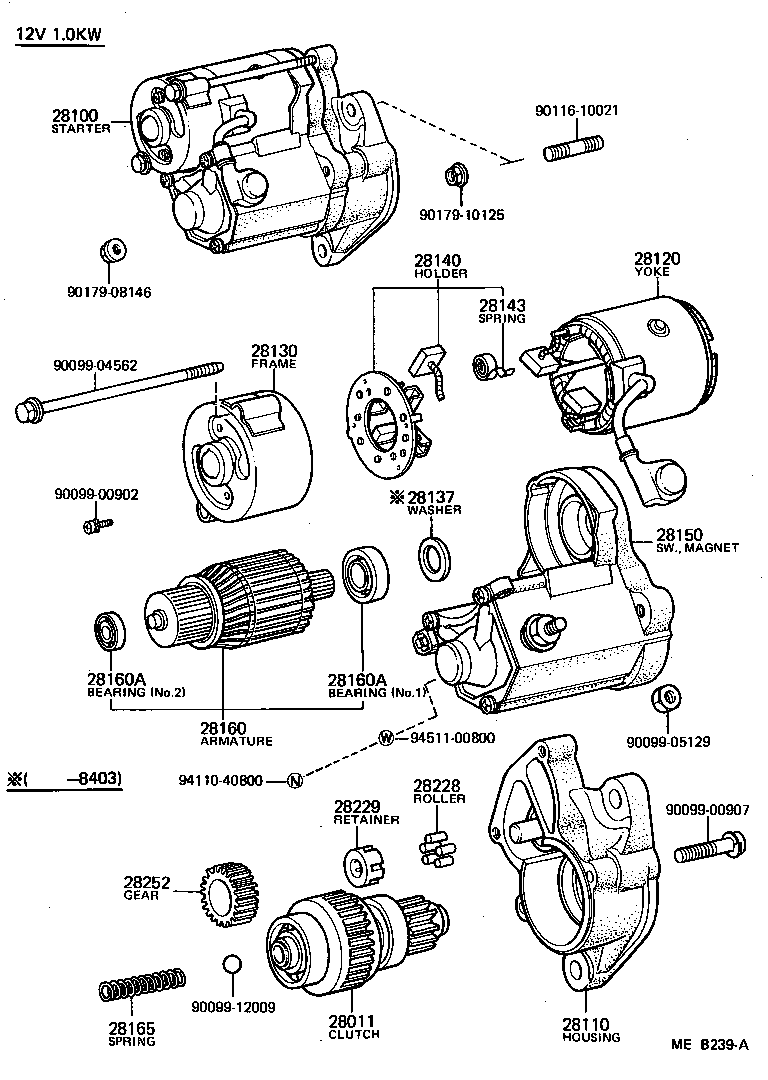

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
5R..RY32 12V 1.0KW |
1 | ||
| 28011-26042 |
5R..RY32 12V 1.0KW,LPG PACKAGE |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-34080 |
5R..RY32 12V 1.0KW,12V 1.0KW |
1 | ||
| 28100-34080 |
5R..RY32 12V 1.0KW,12V 1.0KW,LPG PACKAGE |
1 | ||
| 28100-37011 |
5R..RY32 12V 0.8KW,12V 0.8KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-34080 |
5R..RY32 12V 1.0KW |
1 | ||
| 28110-34080 |
5R..RY32 12V 1.0KW,LPG PACKAGE |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26071 |
5R..RY32 12V 1.0KW,LPG PACKAGE |
1 | ||
| 28120-26070 |
5R..RY32 12V 1.0KW |
1 | ||
| 28120-77090 |
B,L,2J,2L..BY3#,JY30,LY2#,3# 24V 4.5KW |
1 | ||
| 28120-26071 |
5R..RY32 12V 1.0KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-34060 |
5R..RY32 12V 1.0KW |
1 | ||
| 28130-34060 |
5R..RY32 12V 1.0KW,LPG PACKAGE |
1 | ||
| 28137 - WASHER, FELT, STARTER | ||||
| 90099-02323 |
5R..RY32 12V 1.0KW |
1 | ||
| 90099-02205 |
B,L,2J,2L..BY3#,JY30,LY2#,3# 12V 2.5KW,24V 4.5KW |
1 | ||
| 90099-02323 |
5R..RY32 12V 1.0KW,LPG PACKAGE |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-26070 |
5R..RY32 12V 1.0KW,LPG PACKAGE |
1 | ||
| 28140-77090 |
B,L,2J,2L..BY3#,JY30,LY2#,3# 12V 2.5KW,24V 4.5KW |
1 | ||
| 28140-26070 |
5R..RY32 12V 1.0KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
5R..RY32 12V 1.0KW,LPG PACKAGE |
4 | ||
| 90099-17112 |
5R..RY32 12V 1.0KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-34080 |
5R..RY32 12V 1.0KW |
1 | ||
| 28150-34080 |
5R..RY32 12V 1.0KW,LPG PACKAGE |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26070 |
5R..RY32 12V 1.0KW |
1 | ||
| 28160-26070 |
5R..RY32 12V 1.0KW,LPG PACKAGE |
1 | ||
| 28160-77090 |
B,L,2J,2L..BY3#,JY30,LY2#,3# 24V 4.5KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
5R..RY32 12V 1.0KW,NO.1 |
1 | ||
| 90099-10113 |
5R..RY32 12V 1.0KW,NO.2 |
1 | ||
| 90099-10113 |
5R..RY32 12V 1.0KW,NO.2,LPG PACKAGE |
1 | ||
| 90099-10119 |
B,L,2J,2L..BY3#,JY30,LY2#,3# 12V 2.5KW,24V 4.5KW,NO2 |
1 | ||
| 28253-45020 |
5R..RY32 12V 1.0KW,NO.1,LPG PACKAGE |
1 | ||
| 90099-10107 |
B,L,2J,2L..BY3#,JY30,LY2#,3# 12V 2.5KW,24V 4.5KW,NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
5R..RY32 12V 1.0KW,NO.1 |
1 | ||
| 90099-10113 |
5R..RY32 12V 1.0KW,NO.2 |
1 | ||
| 90099-10113 |
5R..RY32 12V 1.0KW,NO.2,LPG PACKAGE |
1 | ||
| 90099-10119 |
B,L,2J,2L..BY3#,JY30,LY2#,3# 12V 2.5KW,24V 4.5KW,NO2 |
1 | ||
| 28253-45020 |
5R..RY32 12V 1.0KW,NO.1,LPG PACKAGE |
1 | ||
| 90099-10107 |
B,L,2J,2L..BY3#,JY30,LY2#,3# 12V 2.5KW,24V 4.5KW,NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
5R..RY32 12V 1.0KW,LPG PACKAGE |
1 | ||
| 28165-26040 |
5R..RY32 12V 1.0KW |
1 | ||
| 28165-77090 |
B,L,2J,2L..BY3#,JY30,LY2#,3# 12V 2.5KW,24V 4.5KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-56080 |
B,L,2J,2L..BY3#,JY30,LY2#,3# 12V 2.5KW,24V 4.5KW |
6 | ||
| 28228-26040 |
5R..RY32 12V 1.0KW |
5 | ||
| 28228-26040 |
5R..RY32 12V 1.0KW,LPG PACKAGE |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
5R..RY32 12V 1.0KW |
1 | ||
| 28229-56080 |
B,L,2J,2L..BY3#,JY30,LY2#,3# 12V 2.5KW,24V 4.5KW |
1 | ||
| 28229-26040 |
5R..RY32 12V 1.0KW,LPG PACKAGE |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
5R..RY32 12V 1.0KW,LPG PACKAGE |
1 | ||
| 28254-45020 |
5R..RY32 12V 1.0KW |
1 | ||
| 28254-77090 |
B,L,2J,2L..BY3#,JY30,LY2#,3# 12V 2.5KW,24V 4.5KW |
1 | ||
| Common parts | ||||
| 90099-00902 | ||||
| 90099-00907 | ||||
| 90099-04562 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90116-10021 | ||||
| 90179-08146 | ||||
| 90179-10125 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
