RY32-JDB (1982)

Toyota Toyoace

Production Jan 1982 - Jul 1985
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )B

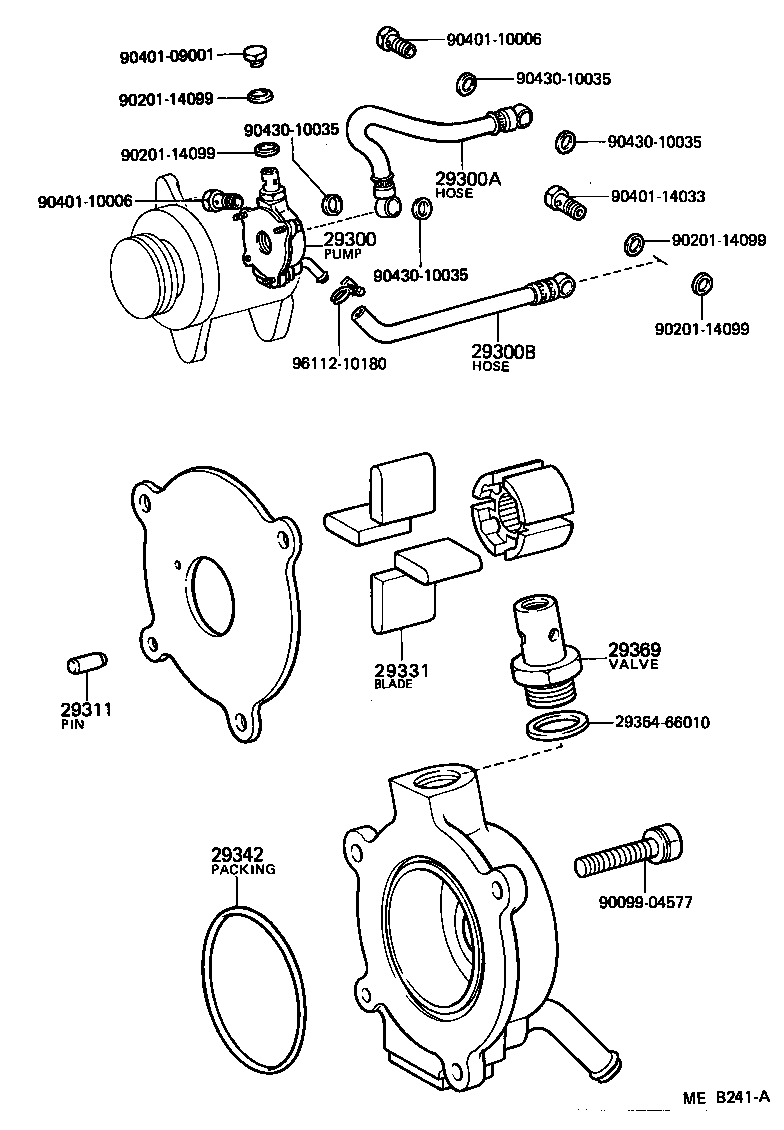

Click highlighted areas on diagram

diagram 29300 29300A 29300B 29311 29331 29342 2936466010 29369 9009904577 9020114099 9020114099 9020114099 9020114099 9040109001 9040110006 9040110006 9040114033 9043010035 9043010035 9043010035 9043010035 9611210180
Part # Description Qty Price
29311 - PIN, VACUUM PUMP DOWEL, NO.1
29311-76010

B,L,2L..BY3#,LY2#,3#

 1
29331 - BLADE, VACUUM PUMP, A
29331-56070

B,L,2L..BY3#,LY2#,3#

 4
29342 - PACKING, VACUUM PUMP
96740-02063

B,L,2L..BY3#,LY2#,3#

 2
29369 - VALVE SUB-ASSY, CHECK
29369-56070

B,L,2L..BY3#,LY2#,3#

 1
Common parts
29364-66010
90099-04577
90201-14099
90401-09001
90401-10006
90401-14033
90430-10035
96112-10180
