RY32-JD (1982)
Toyota Toyoace
Production
Jan 1982
-
Jul 1985
Engine
5R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )RY21,32

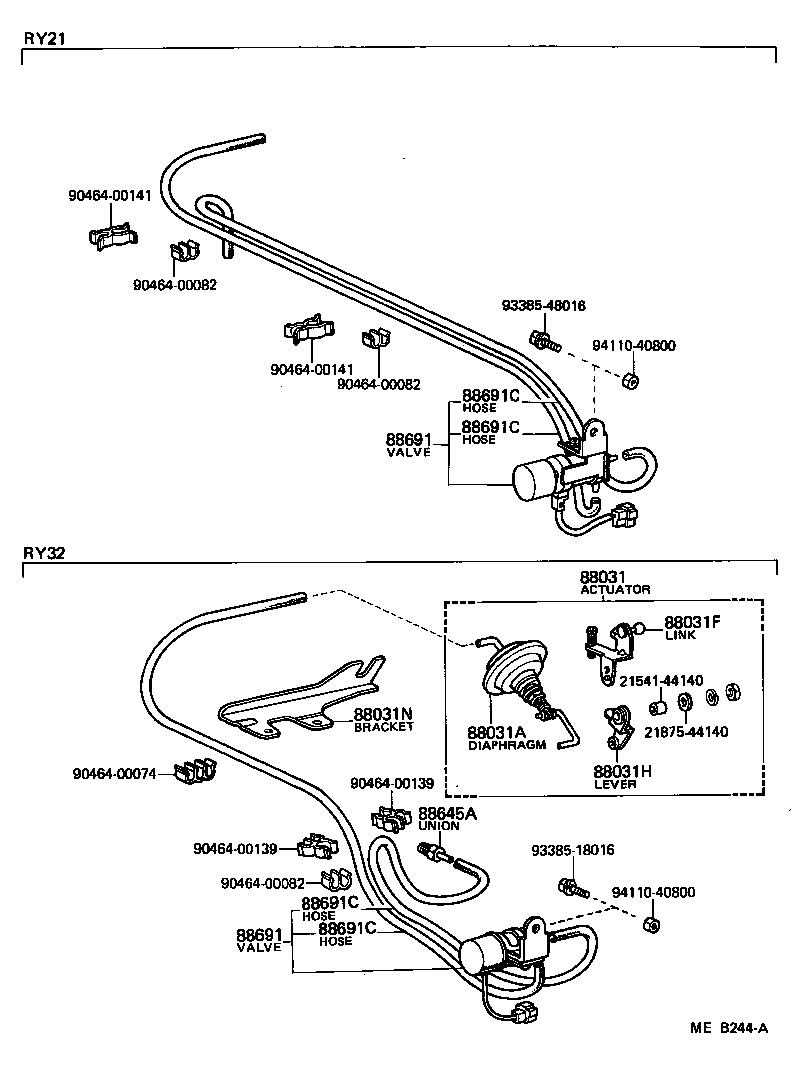

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88031 - ACTUATOR SET, IDLE-UP | ||||
| 88031-35060 |
RY32 |
1 | ||
| 88031A - DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR | ||||
| 21099-44010 |
RY3# |
1 | ||
| 88031F - LINK(FOR IDLE-UP ACTUATOR) | ||||
| 21406-44140 |
RY3# |
1 | ||
| 88031H - LEVER(FOR IDLE-UP ACTUATOR) | ||||
| 21404-44140 |
RY3# |
1 | ||
| 88031N - BRACKET, IDLE-UP ACTUATOR | ||||
| 88688-95012 |
RY32 |
1 | ||
| 88688-25010 |
RY3# |
1 | ||
| 88645A - UNION (FOR IDLE UP DEVICE) | ||||
| 90404-51093 |
RY32 |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-95010 |
RY21,32 |
1 | ||
| 88690-95011 |
LY2#,3# 12V |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-95010 |
RY21,32 |
1 | ||
| 88690-95011 |
LY2#,3# 12V |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-19960 |
RY21,32 *H,L=590,ﾏｰｸ=#*,*H,L=590,MARK=#* |
1 | ||
| 95411-10095 |
RY21,32 *H,L=650,ﾏｰｸ=#0 |
1 | ||
| 95411-19960 |
LY2#,3# *H,L=500,ﾏｰｸ=#*,L=500 |
1 | ||
| 90445-08163 |
LY2#,3# L=1200 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-19960 |
RY21,32 *H,L=590,ﾏｰｸ=#*,*H,L=590,MARK=#* |
1 | ||
| 95411-10095 |
RY21,32 *H,L=650,ﾏｰｸ=#0 |
1 | ||
| 95411-19960 |
LY2#,3# *H,L=500,ﾏｰｸ=#*,L=500 |
1 | ||
| 90445-08163 |
LY2#,3# L=1200 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-19960 |
RY21,32 *H,L=590,ﾏｰｸ=#*,*H,L=590,MARK=#* |
1 | ||
| 95411-10095 |
RY21,32 *H,L=650,ﾏｰｸ=#0 |
1 | ||
| 95411-19960 |
LY2#,3# *H,L=500,ﾏｰｸ=#*,L=500 |
1 | ||
| 90445-08163 |
LY2#,3# L=1200 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-19960 |
RY21,32 *H,L=590,ﾏｰｸ=#*,*H,L=590,MARK=#* |
1 | ||
| 95411-10095 |
RY21,32 *H,L=650,ﾏｰｸ=#0 |
1 | ||
| 95411-19960 |
LY2#,3# *H,L=500,ﾏｰｸ=#*,L=500 |
1 | ||
| 90445-08163 |
LY2#,3# L=1200 |
1 | ||
| Common parts | ||||
| 21541-44140 | ||||
| 21875-44140 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00139 | ||||
| 90464-00141 | ||||
| 93385-18016 | ||||
| 93385-48016 | ||||
| 94110-40800 | ||||
