RY31V-JDTF (1979)
Toyota Toyoace
(7903-7909)5R ; (7903-8002)12R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-41011 |
12R,5R..RY20,31 12V 0.8KW |
1 | ||
| 28011-41020 |
5R..RY31 12V 1.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-40060 |
5R..RY31 12V 1.0KW |
1 | ||
| 28100-36070 |
5R..RY31 12V 0.8KW |
1 | ||
| 28100-40061 |
5R..RY31 12V 1.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-40061 |
5R..RY31 12V 1.0KW |
1 | ||
| 28110-40045 |
5R..RY31 12V 0.8KW |
1 | ||
| 28111 - BUSH(FOR STARTER HOUSING) | ||||
| 28111-51011 |
12R,5R..RY20,31 12V 0.8KW,1.0KW |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-41011 |
12R,5R..RY20,31 12V 0.8KW,1.0KW |
1 | ||
| 28113-41011 |
5R..RY31 12V 1.0KW |
1 | ||
| 28114 - PIN, STARTER DRIVE LEVER SET | ||||
| 28114-41011 |
12R,5R..RY20,31 12V 0.8KW,1.0KW |
1 | ||
| 28114-41011 |
5R..RY31 12V 1.0KW |
1 | ||
| 28117 - RUBBER(FOR STARTER YOKE) | ||||
| 28117-41013 |
5R..RY31 12V 0.8KW |
1 | ||
| 28117-41020 |
5R..RY31 12V 1.0KW |
1 | ||
| 28118 - PLATE(FOR STARTER YOKE) | ||||
| 28118-41013 |
5R..RY31 12V 0.8KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-36040 |
12R,5R..RY20,31 12V 0.8KW |
1 | ||
| 28120-40061 |
5R..RY31 12V 1.0KW |
1 | ||
| 28121 - COIL, STARTER FIELD | ||||
| 28121-34070 |
5R..RY31 12V 1.0KW |
1 | ||
| 28121-41020 |
5R..RY31 12V 1.0KW |
1 | ||
| 28121-42020 |
5R..RY31 12V 1.0KW |
1 | ||
| 28121-36040 |
12R,5R..RY20,31 12V 0.8KW |
1 | ||
| 28123 - CORE, STARTER POLE | ||||
| 28123-40012 |
12R,5R..RY20,31 12V 0.8KW |
4 | ||
| 28123-41020 |
5R..RY31 12V 1.0KW |
4 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-40060 |
5R..RY31 12V 1.0KW |
1 | ||
| 28130-21011 |
12R,5R..RY20,31 12V 0.8KW |
1 | ||
| 28131 - BUSH, COMMUTATOR END FRAME | ||||
| 90099-10039 |
12R,5R..RY20,31 12V 0.8KW,1.0KW,U/S 0.3 |
1 | ||
| 90099-10039 |
5R..RY31 12V 1.0KW,U/S 0.3 |
1 | ||
| 28131-20010 |
12R,5R..RY20,31 12V 0.8KW,1.0KW,STD |
1 | ||
| 90099-10040 |
12R,5R..RY20,31 12V 0.8KW,1.0KW,U/S 0.5 |
1 | ||
| 28131-20010 |
5R..RY31 12V 1.0KW,STD |
1 | ||
| 90099-10040 |
5R..RY31 12V 1.0KW,U/S 0.5 |
1 | ||
| 28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING) | ||||
| 28166-41011 |
12R,5R..RY20,31 12V 0.8KW,1.0KW |
1 | ||
| 28166-41011 |
5R..RY31 12V 1.0KW |
1 | ||
| 28133 - COVER, BEARING(FOR END FRAME) | ||||
| 28132-41011 |
12R,5R..RY20,31 12V 0.8KW |
1 | ||
| 28132-40010 |
5R..RY31 12V 1.0KW |
1 | ||
| 28136 - PLATE, STARTER LOCK | ||||
| 28136-41011 |
12R,5R..RY20,31 12V 0.8KW |
1 | ||
| 28136-40010 |
5R..RY31 12V 1.0KW |
1 | ||
| 28138 - RUBBER(FOR STARTER BEARING COVER) | ||||
| 28138-41011 |
12R,5R..RY20,31 12V 0.8KW |
1 | ||
| 28138-40010 |
5R..RY31 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-41020 |
5R..RY31 12V 1.0KW |
1 | ||
| 28140-41012 |
12R,5R..RY20,31 12V 0.8KW |
1 | ||
| 28142 - BRUSH, STARTER | ||||
| 28142-25011 |
5R..RY31 12V 1.0KW |
2 | ||
| 28142-10011 |
5R..RY31 12V 1.0KW |
2 | ||
| 28142-21010 |
12R,5R..RY20,31 12V 0.8KW |
4 | ||
| 28142 - BRUSH, STARTER | ||||
| 28142-25011 |
5R..RY31 12V 1.0KW |
2 | ||
| 28142-10011 |
5R..RY31 12V 1.0KW |
2 | ||
| 28142-21010 |
12R,5R..RY20,31 12V 0.8KW |
4 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-40010 |
5R..RY31 12V 1.0KW |
4 | ||
| 28143-40010 |
12R,5R..RY20,31 12V 0.8KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-22011 |
5R..RY31 12V 0.8KW |
1 | ||
| 28150-33020 |
5R..RY31 12V 1.0KW |
1 | ||
| 28150-34070 |
5R..RY31 12V 0.8KW |
1 | ||
| 28150-34070 |
5R..RY31 12V 1.0KW |
1 | ||
| 28150-15011 |
5R..RY31 12V 0.8KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-40014 |
12R,5R..RY20,31 12V 0.8KW |
1 | ||
| 28160-41020 |
5R..RY31 12V 1.0KW |
1 | ||
| 28162 - SPRING, STARTER BRAKE | ||||
| 28162-41011 |
12R,5R..RY20,31 12V 0.8KW |
1 | ||
| 28162-41022 |
5R..RY31 12V 1.0KW |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-40011 |
12R,5R..RY20,31 12V 0.8KW,1.0KW |
1 | ||
| 28163A - RING, SNAP(FOR STARTER PINION STOP NUT) | ||||
| 90099-07047 |
12R,5R..RY20,31 12V 0.8KW,1.0KW |
1 | ||
| Common parts | ||||
| 90099-00102 | ||||
| 90099-00111 | ||||
| 90099-00879 | ||||
| 90099-00902 | ||||
| 90099-01090 | ||||
| 90099-02169 | ||||
| 90099-04884 | ||||
| 90099-05113 | ||||
| 90099-05122 | ||||
| 90099-05129 | ||||
| 90116-10019 | ||||
| 90116-10021 | ||||
| 90179-10125 | ||||
| 91612-41030 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94511-00500 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
| 94541-01000 | ||||

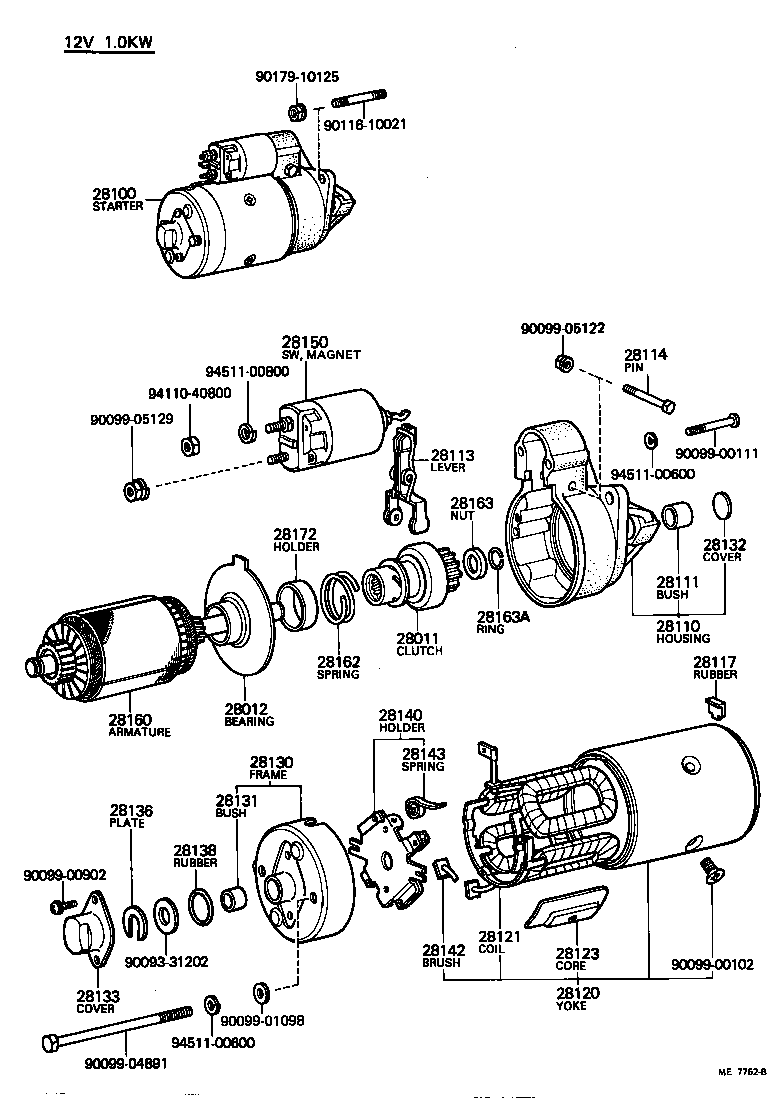

(7903-8201)5R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-41011 |
12R,5R..RY20,31 12V 0.8KW |
1 | ||
| 28011-41020 |
5R..RY31 12V 1.0KW |
1 | ||
| 28012 - BEARING SUB-ASSY, CENTER | ||||
| 28126-40061 |
5R..RY31 12V 1.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-40060 |
5R..RY31 12V 1.0KW |
1 | ||
| 28100-36070 |
5R..RY31 12V 0.8KW |
1 | ||
| 28100-40061 |
5R..RY31 12V 1.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-40061 |
5R..RY31 12V 1.0KW |
1 | ||
| 28110-40045 |
5R..RY31 12V 0.8KW |
1 | ||
| 28111 - BUSH(FOR STARTER HOUSING) | ||||
| 28111-51011 |
12R,5R..RY20,31 12V 0.8KW,1.0KW |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-41011 |
12R,5R..RY20,31 12V 0.8KW,1.0KW |
1 | ||
| 28113-41011 |
5R..RY31 12V 1.0KW |
1 | ||
| 28114 - PIN, STARTER DRIVE LEVER SET | ||||
| 28114-41011 |
12R,5R..RY20,31 12V 0.8KW,1.0KW |
1 | ||
| 28114-41011 |
5R..RY31 12V 1.0KW |
1 | ||
| 28117 - RUBBER(FOR STARTER YOKE) | ||||
| 28117-41013 |
5R..RY31 12V 0.8KW |
1 | ||
| 28117-41020 |
5R..RY31 12V 1.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-36040 |
12R,5R..RY20,31 12V 0.8KW |
1 | ||
| 28120-40061 |
5R..RY31 12V 1.0KW |
1 | ||
| 28121 - COIL, STARTER FIELD | ||||
| 28121-34070 |
5R..RY31 12V 1.0KW |
1 | ||
| 28121-41020 |
5R..RY31 12V 1.0KW |
1 | ||
| 28121-42020 |
5R..RY31 12V 1.0KW |
1 | ||
| 28121-36040 |
12R,5R..RY20,31 12V 0.8KW |
1 | ||
| 28123 - CORE, STARTER POLE | ||||
| 28123-40012 |
12R,5R..RY20,31 12V 0.8KW |
4 | ||
| 28123-41020 |
5R..RY31 12V 1.0KW |
4 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-40060 |
5R..RY31 12V 1.0KW |
1 | ||
| 28130-21011 |
12R,5R..RY20,31 12V 0.8KW |
1 | ||
| 28131 - BUSH, COMMUTATOR END FRAME | ||||
| 90099-10039 |
12R,5R..RY20,31 12V 0.8KW,1.0KW,U/S 0.3 |
1 | ||
| 90099-10039 |
5R..RY31 12V 1.0KW,U/S 0.3 |
1 | ||
| 28131-20010 |
12R,5R..RY20,31 12V 0.8KW,1.0KW,STD |
1 | ||
| 90099-10040 |
12R,5R..RY20,31 12V 0.8KW,1.0KW,U/S 0.5 |
1 | ||
| 28131-20010 |
5R..RY31 12V 1.0KW,STD |
1 | ||
| 90099-10040 |
5R..RY31 12V 1.0KW,U/S 0.5 |
1 | ||
| 28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING) | ||||
| 28166-41011 |
12R,5R..RY20,31 12V 0.8KW,1.0KW |
1 | ||
| 28166-41011 |
5R..RY31 12V 1.0KW |
1 | ||
| 28133 - COVER, BEARING(FOR END FRAME) | ||||
| 28132-41011 |
12R,5R..RY20,31 12V 0.8KW |
1 | ||
| 28132-40010 |
5R..RY31 12V 1.0KW |
1 | ||
| 28136 - PLATE, STARTER LOCK | ||||
| 28136-41011 |
12R,5R..RY20,31 12V 0.8KW |
1 | ||
| 28136-40010 |
5R..RY31 12V 1.0KW |
1 | ||
| 28138 - RUBBER(FOR STARTER BEARING COVER) | ||||
| 28138-41011 |
12R,5R..RY20,31 12V 0.8KW |
1 | ||
| 28138-40010 |
5R..RY31 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-41020 |
5R..RY31 12V 1.0KW |
1 | ||
| 28140-41012 |
12R,5R..RY20,31 12V 0.8KW |
1 | ||
| 28142 - BRUSH, STARTER | ||||
| 28142-25011 |
5R..RY31 12V 1.0KW |
2 | ||
| 28142-10011 |
5R..RY31 12V 1.0KW |
2 | ||
| 28142-21010 |
12R,5R..RY20,31 12V 0.8KW |
4 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-40010 |
5R..RY31 12V 1.0KW |
4 | ||
| 28143-40010 |
12R,5R..RY20,31 12V 0.8KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-22011 |
5R..RY31 12V 0.8KW |
1 | ||
| 28150-33020 |
5R..RY31 12V 1.0KW |
1 | ||
| 28150-34070 |
5R..RY31 12V 0.8KW |
1 | ||
| 28150-34070 |
5R..RY31 12V 1.0KW |
1 | ||
| 28150-15011 |
5R..RY31 12V 0.8KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-40014 |
12R,5R..RY20,31 12V 0.8KW |
1 | ||
| 28160-41020 |
5R..RY31 12V 1.0KW |
1 | ||
| 28162 - SPRING, STARTER BRAKE | ||||
| 28162-41011 |
12R,5R..RY20,31 12V 0.8KW |
1 | ||
| 28162-41022 |
5R..RY31 12V 1.0KW |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-40011 |
12R,5R..RY20,31 12V 0.8KW,1.0KW |
1 | ||
| 28163A - RING, SNAP(FOR STARTER PINION STOP NUT) | ||||
| 90099-07047 |
12R,5R..RY20,31 12V 0.8KW,1.0KW |
1 | ||
| 28172 - HOLDER, STARTER SPRING | ||||
| 28172-41021 |
5R..RY31 12V 1.0KW |
1 | ||
| Common parts | ||||
| 90093-31202 | ||||
| 90099-00102 | ||||
| 90099-00111 | ||||
| 90099-00902 | ||||
| 90099-01098 | ||||
| 90099-04891 | ||||
| 90099-05122 | ||||
| 90099-05129 | ||||
| 90116-10021 | ||||
| 90179-10125 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
(7909- )5R ; (8002- )12R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-41011 |
12R,5R..RY20,31 12V 0.8KW |
1 | ||
| 28011-41020 |
5R..RY31 12V 1.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-40060 |
5R..RY31 12V 1.0KW |
1 | ||
| 28100-36070 |
5R..RY31 12V 0.8KW |
1 | ||
| 28100-40061 |
5R..RY31 12V 1.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-40061 |
5R..RY31 12V 1.0KW |
1 | ||
| 28110-40045 |
5R..RY31 12V 0.8KW |
1 | ||
| 28111 - BUSH(FOR STARTER HOUSING) | ||||
| 28111-51011 |
12R,5R..RY20,31 12V 0.8KW,1.0KW |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-41011 |
12R,5R..RY20,31 12V 0.8KW,1.0KW |
1 | ||
| 28113-41011 |
5R..RY31 12V 1.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-36040 |
12R,5R..RY20,31 12V 0.8KW |
1 | ||
| 28120-40061 |
5R..RY31 12V 1.0KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-40060 |
5R..RY31 12V 1.0KW |
1 | ||
| 28130-21011 |
12R,5R..RY20,31 12V 0.8KW |
1 | ||
| 28131 - BUSH, COMMUTATOR END FRAME | ||||
| 90099-10039 |
12R,5R..RY20,31 12V 0.8KW,1.0KW,U/S 0.3 |
1 | ||
| 90099-10039 |
5R..RY31 12V 1.0KW,U/S 0.3 |
1 | ||
| 28131-20010 |
12R,5R..RY20,31 12V 0.8KW,1.0KW,STD |
1 | ||
| 90099-10040 |
12R,5R..RY20,31 12V 0.8KW,1.0KW,U/S 0.5 |
1 | ||
| 28131-20010 |
5R..RY31 12V 1.0KW,STD |
1 | ||
| 90099-10040 |
5R..RY31 12V 1.0KW,U/S 0.5 |
1 | ||
| 28133 - COVER, BEARING(FOR END FRAME) | ||||
| 28132-41011 |
12R,5R..RY20,31 12V 0.8KW |
1 | ||
| 28132-40010 |
5R..RY31 12V 1.0KW |
1 | ||
| 28136 - PLATE, STARTER LOCK | ||||
| 28136-41011 |
12R,5R..RY20,31 12V 0.8KW |
1 | ||
| 28136-40010 |
5R..RY31 12V 1.0KW |
1 | ||
| 28138 - RUBBER(FOR STARTER BEARING COVER) | ||||
| 28138-41011 |
12R,5R..RY20,31 12V 0.8KW |
1 | ||
| 28138-40010 |
5R..RY31 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-41020 |
5R..RY31 12V 1.0KW |
1 | ||
| 28140-41012 |
12R,5R..RY20,31 12V 0.8KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-22011 |
5R..RY31 12V 0.8KW |
1 | ||
| 28150-33020 |
5R..RY31 12V 1.0KW |
1 | ||
| 28150-34070 |
5R..RY31 12V 0.8KW |
1 | ||
| 28150-34070 |
5R..RY31 12V 1.0KW |
1 | ||
| 28150-15011 |
5R..RY31 12V 0.8KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-40014 |
12R,5R..RY20,31 12V 0.8KW |
1 | ||
| 28160-41020 |
5R..RY31 12V 1.0KW |
1 | ||
| 28162 - SPRING, STARTER BRAKE | ||||
| 28162-41011 |
12R,5R..RY20,31 12V 0.8KW |
1 | ||
| 28162-41022 |
5R..RY31 12V 1.0KW |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-40011 |
12R,5R..RY20,31 12V 0.8KW,1.0KW |
1 | ||
| 28163A - RING, SNAP(FOR STARTER PINION STOP NUT) | ||||
| 90099-07047 |
12R,5R..RY20,31 12V 0.8KW,1.0KW |
1 | ||
| Common parts | ||||
| 90099-00926 | ||||
| 90099-04921 | ||||
| 90099-05178 | ||||
| 90099-12405 | ||||
| 90116-10019 | ||||
| 90116-10021 | ||||
| 90179-08146 | ||||
| 90179-10125 | ||||
| 91612-41030 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94511-00800 | ||||
| 94541-01000 | ||||

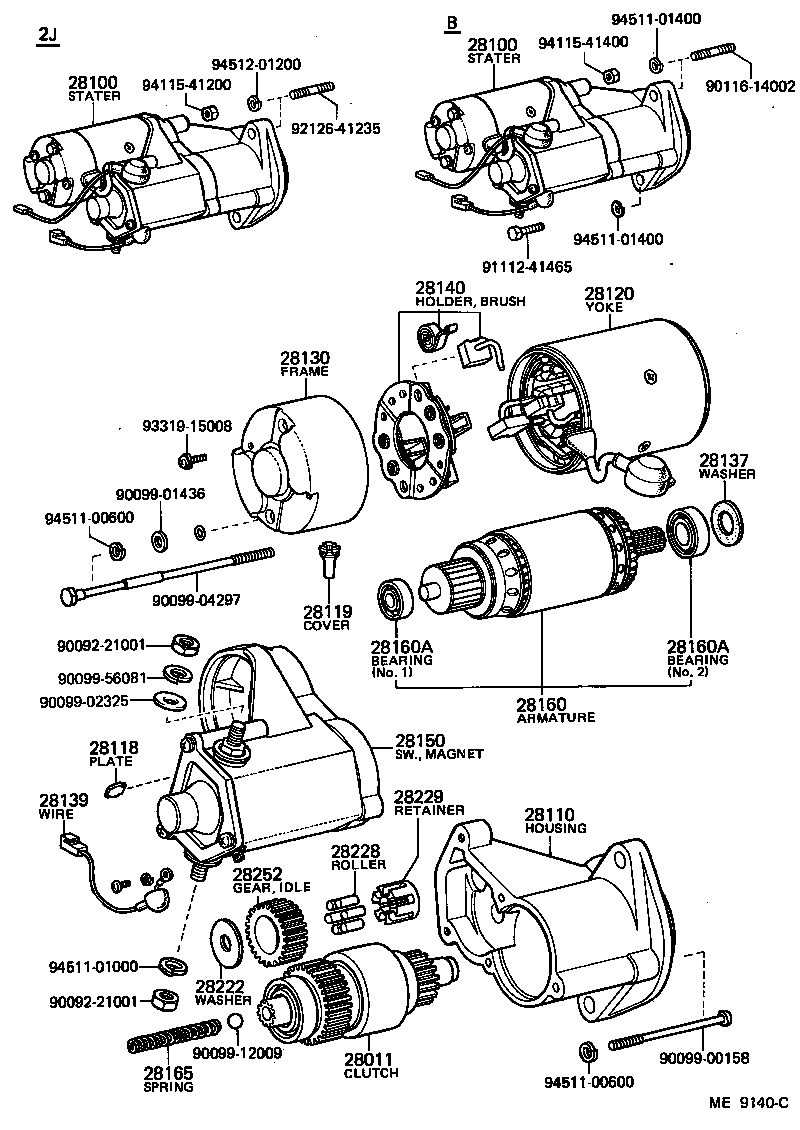

(7903- )B,2J
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-41011 |
12R,5R..RY20,31 12V 0.8KW |
1 | ||
| 28011-41020 |
5R..RY31 12V 1.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-40060 |
5R..RY31 12V 1.0KW |
1 | ||
| 28100-36070 |
5R..RY31 12V 0.8KW |
1 | ||
| 28100-40061 |
5R..RY31 12V 1.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-40060 |
5R..RY31 12V 1.0KW |
1 | ||
| 28100-36070 |
5R..RY31 12V 0.8KW |
1 | ||
| 28100-40061 |
5R..RY31 12V 1.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-40061 |
5R..RY31 12V 1.0KW |
1 | ||
| 28110-40045 |
5R..RY31 12V 0.8KW |
1 | ||
| 28118 - PLATE(FOR STARTER YOKE) | ||||
| 28118-41013 |
5R..RY31 12V 0.8KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-36040 |
12R,5R..RY20,31 12V 0.8KW |
1 | ||
| 28120-40061 |
5R..RY31 12V 1.0KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-40060 |
5R..RY31 12V 1.0KW |
1 | ||
| 28130-21011 |
12R,5R..RY20,31 12V 0.8KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-41020 |
5R..RY31 12V 1.0KW |
1 | ||
| 28140-41012 |
12R,5R..RY20,31 12V 0.8KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-22011 |
5R..RY31 12V 0.8KW |
1 | ||
| 28150-33020 |
5R..RY31 12V 1.0KW |
1 | ||
| 28150-34070 |
5R..RY31 12V 0.8KW |
1 | ||
| 28150-34070 |
5R..RY31 12V 1.0KW |
1 | ||
| 28150-15011 |
5R..RY31 12V 0.8KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-40014 |
12R,5R..RY20,31 12V 0.8KW |
1 | ||
| 28160-41020 |
5R..RY31 12V 1.0KW |
1 | ||
| Common parts | ||||
| 90092-21001 | ||||
| 90099-00158 | ||||
| 90099-01436 | ||||
| 90099-02325 | ||||
| 90099-04297 | ||||
| 90099-12009 | ||||
| 90099-56081 | ||||
| 90116-14002 | ||||
| 91112-41465 | ||||
| 92126-41235 | ||||
| 93319-15008 | ||||
| 94115-41200 | ||||
| 94115-41400 | ||||
| 94511-00600 | ||||
| 94511-01000 | ||||
| 94511-01400 | ||||
| 94512-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
