RY31V-JDT (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )RY3#

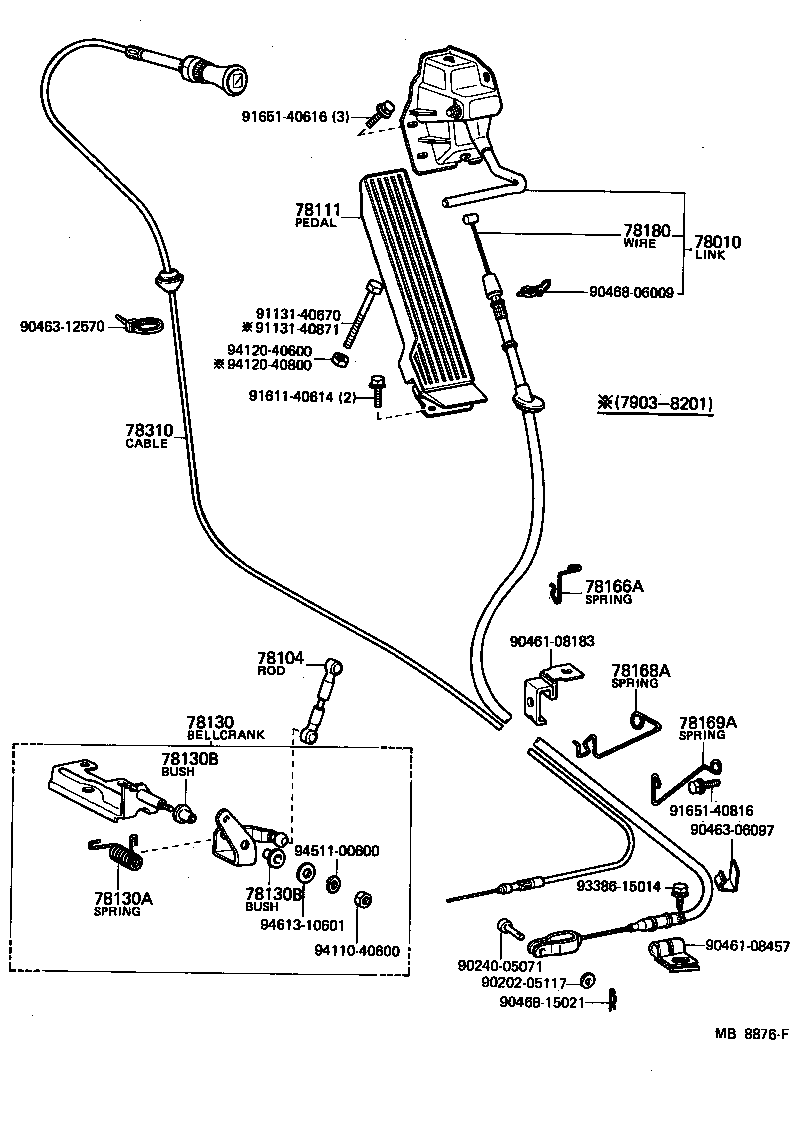

Click highlighted areas on diagram

diagram 78010 78104 78111 78130 78130A 78130B 78130B 78166A 78168A 78169A 78180 78310 9020205117 9024005071 9046108183 9046108457 9046306097 9046312570 9046806009 9046815021 9113140670 9113140871 9161140614 9165140616 9165140816 9338615014 9411040600 9412040600 9412040800 9451100600 9461310601
Part # Description Qty Price
78010 - LINK, ACCELERATOR
78180-95037

RY31

 1
78180-95043

RY31

 1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-20041

RY3#

 1
78111 - PEDAL, ACCELERATOR
78110-95014

BY3#,JY30,LY2#,3#,RY2#,3#

 1
78130 - BELLCRANK ASSY, ACCELERATOR
78130-95011

RY3#

 1
78130A - SPRING (FOR ACCELERATOR ROD RETURN)
90508-16027

RY3#

 1
78130B - BUSH, ACCELERATOR BELLCRANK
90386-08024

RY3#

 2
78130B - BUSH, ACCELERATOR BELLCRANK
90386-08024

RY3#

 2
78166A - SPRING, CLAMP, NO.1
78166-95010

JY30,LY2#,3#,RY2#,3#

 1
78168A - SPRING, CLAMP, NO.3
78168-95010

JY30,RY2#,3#

 1
78169A - SPRING, CLAMP, NO.4
78169-95014

RY2#,3#

 1
78180 - WIRE ASSY, ACCELERATOR
78150-95050

RY3#

 1
78310 - CABLE ASSY, CHOKE
78310-95027

RY31

 1
Common parts
90202-05117
90240-05071
90461-08183
90461-08457
90463-06097
90463-12570
90468-06009
90468-15021
91131-40670
91131-40871
91611-40614
91651-40616
91651-40816
93386-15014
94110-40600
94120-40600
94120-40800
94511-00600
94613-10601

(7903- )LY2#,3#

Click highlighted areas on diagram

diagram 78010 78100 78104 78111 78166A 78180 78191 78191D 78191D 78406A 78410 78410 78420A 9020210005 9038610138 9038610138 9046108426 9046108574 9046110357 9046806009 9050816010 9050818029 9050820016 9098901007 9113140670 9113140871 9161140614 9161140812 9161140812 9161140814 9161140814 9165140616 9165140816 9165540620 9165540820 9411040800 9412040600 9412040800 9414141000 9451101000 9461111001 9538102518
Part # Description Qty Price
78010 - LINK, ACCELERATOR
78180-95037

RY31

 1
78180-95043

RY31

 1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-20041

RY3#

 1
78111 - PEDAL, ACCELERATOR
78110-95014

BY3#,JY30,LY2#,3#,RY2#,3#

 1
78166A - SPRING, CLAMP, NO.1
78166-95010

JY30,LY2#,3#,RY2#,3#

 1
78180 - WIRE ASSY, ACCELERATOR
78150-95050

RY3#

 1
Common parts
90202-10005
90386-10138
90461-08426
90461-08574
90461-10357
90468-06009
90508-16010
90508-18029
90508-20016
90989-01007
91131-40670
91131-40871
91611-40614
91611-40812
91611-40814
91651-40616
91651-40816
91655-40620
91655-40820
94110-40800
94120-40600
94120-40800
94141-41000
94511-01000
94611-11001
95381-02518
