RY31V-JDT (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

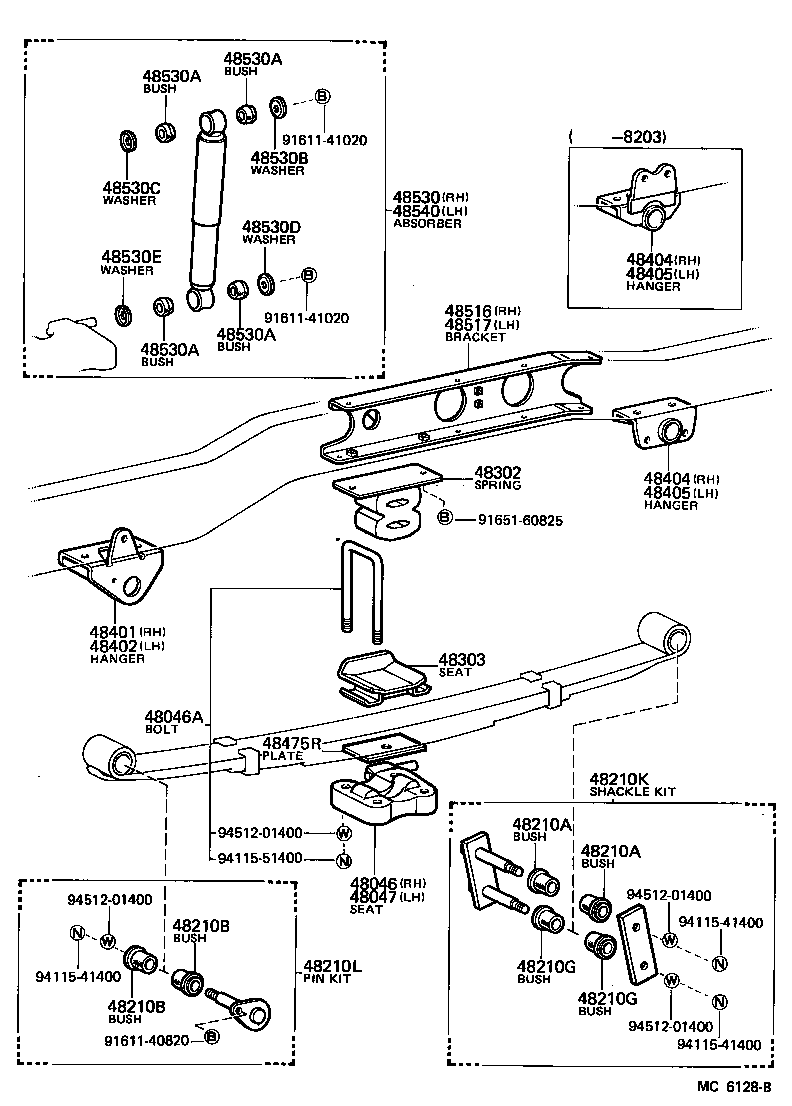

ILLUST NO. 1 OF 2(7903- )LY2#,3#,RY2#,3#..WT

Click highlighted areas on diagram

diagram 48046 48046A 48047 48210A 48210A 48210B 48210B 48210G 48210G 48210K 48210L 48302 48303 48401 48402 48404 48404 48405 48405 48475R 48516 48517 48530 48530A 48530A 48530A 48530A 48530B 48530C 48530D 48530E 48540 9161140820 9161141020 9161141020 9165160825 9411541400 9411541400 9411541400 9411551400 9451201400 9451201400 9451201400 9451201400
Part # Description Qty Price
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-25050

LY2#,3#,RY2#,3#

 1
48046A - BOLT, U(FOR REAR SPRING)
90118-14171

LY20,30,RY20,31..WT

L=153

 4
90118-14172

LY30..10T;LY20,RY2#..VP,VT;LY20,RY2#..WT..15T;LY30,RY3#..T2,VP,VPS,VT

長さ=162,L=162,W/DISTANCE PLATE

 2
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-25050

LY2#,3#,RY2#,3#

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18005

LY2#,3#,RY2#,3#

 4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18005

LY2#,3#,RY2#,3#

 4
48210B - BUSH(FOR REAR SPRING PIN)
90385-18005

LY2#,3#,RY2#,3#

 4
48210B - BUSH(FOR REAR SPRING PIN)
90385-18005

LY2#,3#,RY2#,3#

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-18005

LY2#,3#,RY2#,3#

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-18005

LY2#,3#,RY2#,3#

 4
48210K - SHACKLE KIT, REAR SPRING
04483-25020

LY20,30,RY20,31..WT

 2
04483-25021

LY20,30,RY20,31..WT

 2
48210L - PIN KIT, REAR SPRING
04482-25010

LY20,30,RY20,31

 2
48302 - SPRING SUB-ASSY, HOLLOW
48302-25040

LY2#,3#,RY2#,3#..WT

 2
48303 - SEAT SUB-ASSY, HOLLOW SPRING
48303-25040

LY2#,3#,RY2#,3#..WT

 2
48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH
48414-25050

LY2#,3#,RY2#,3#..WT

 1
48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH
48415-25020

LY2#,3#,RY2#,3#..WT

 1
48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH
48416-25050

LY20,30,RY20,31..WT

 1
48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH
48416-25050

LY20,30,RY20,31..WT

 1
48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH
48416-25050

LY20,30,RY20,31..WT

 1
48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH
48416-25050

LY20,30,RY20,31..WT

 1
48475R - PLATE, DISTANCE(FOR REAR)
48475-25010

LY2#,3#,RY2#,3#

 1
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48505-25030

LY2#,3#,RY2#,3#..WT

 1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48506-25030

LY2#,3#,RY2#,3#..WT

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-29605

LY30,RY31..T1,T2,T3,VP,VPS,VT

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

BY3#,JY30,LY2#,3#,RY2#,3#

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

BY3#,JY30,LY2#,3#,RY2#,3#

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

BY3#,JY30,LY2#,3#,RY2#,3#

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

BY3#,JY30,LY2#,3#,RY2#,3#

 8
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03007

LY20,30,RY20,31

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004

BY3#,JY30,LY2#,3#,RY2#,3#

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03007

LY20,30,RY20,31

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

BY3#,JY30,LY2#,3#,RY2#,3#

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-29605

LY30,RY31..T1,T2,T3,VP,VPS,VT

 1
Common parts
91611-40820
91611-41020
91651-60825
94115-41400
94115-51400
94512-01400

ILLUST NO. 2 OF 2(7903- )LY2#,3#,RY2#,3#..WT

Click highlighted areas on diagram

diagram 48210 48211 48212 48213 48214 48220 48241 48247 48252 9411041000 9411051000 9511100816 9511100818
Part # Description Qty Price

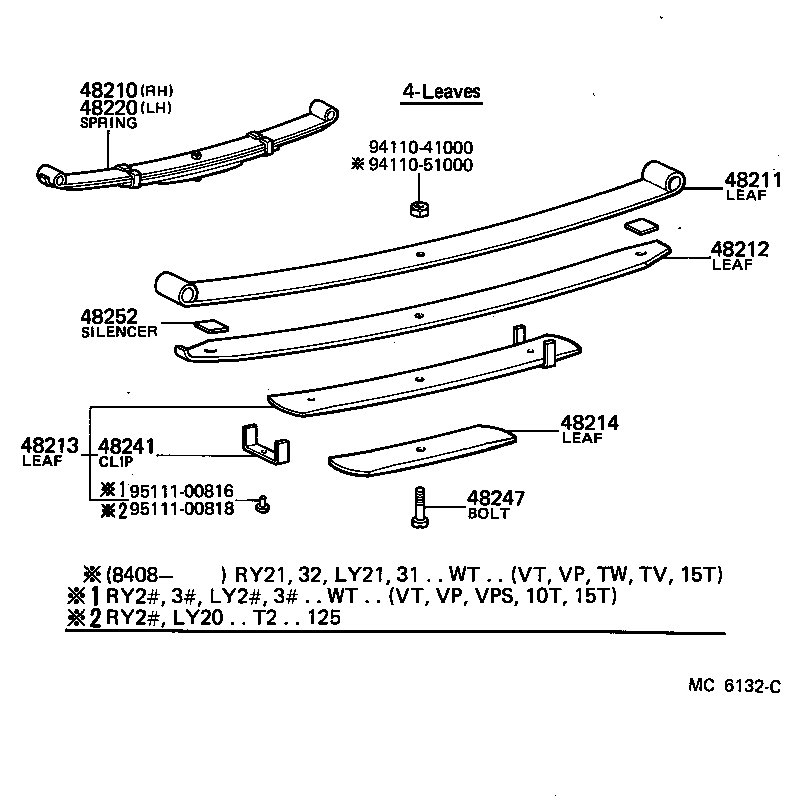

48210 - SPRING ASSY, REAR RH
48210-25170

LY30,RY31..WT;LY20,RY20..VP,VT;LY20,RY20..WT..15T

 1
48211 - LEAF, REAR SPRING, NO.1
48201-25170

LY30,RY31..WT;LY20,RY20..VP,VT;LY20,RY20..WT..15T

 2
48212 - LEAF, REAR SPRING, NO.2
48212-25170

LY30,RY31..WT;LY20,RY20..VP,VT;LY20,RY20..WT..15T

 2
48213 - LEAF, REAR SPRING, NO.3
48202-25170

LY30,RY31..WT;LY20,RY20..VP,VT;LY20,RY20..WT..15T

 2
48214 - LEAF, REAR SPRING, NO.4
48214-25170

LY30,RY31..WT;LY20,RY20..VP,VT;LY20,RY20..WT..15T

 2
48220 - SPRING ASSY, REAR LH
48210-25170

LY30,RY31..WT;LY20,RY20..VP,VT;LY20,RY20..WT..15T

 1
48241 - CLIP, REAR SPRING, NO.1
48241-25170

LY30,RY31..WT;LY20,RY20..VP,VT;LY20,RY20..WT..15T

 4
48247 - BOLT, REAR SPRING, CENTER
48247-25170

LY30,RY31..WT;LY20,RY20..VP,VT;LY20,RY20..WT..15T

 2
Common parts
94110-41000
94110-51000
95111-00816
95111-00818
