RY31V-JDT (1979)
Toyota Toyoace
(7903- )12R,5R

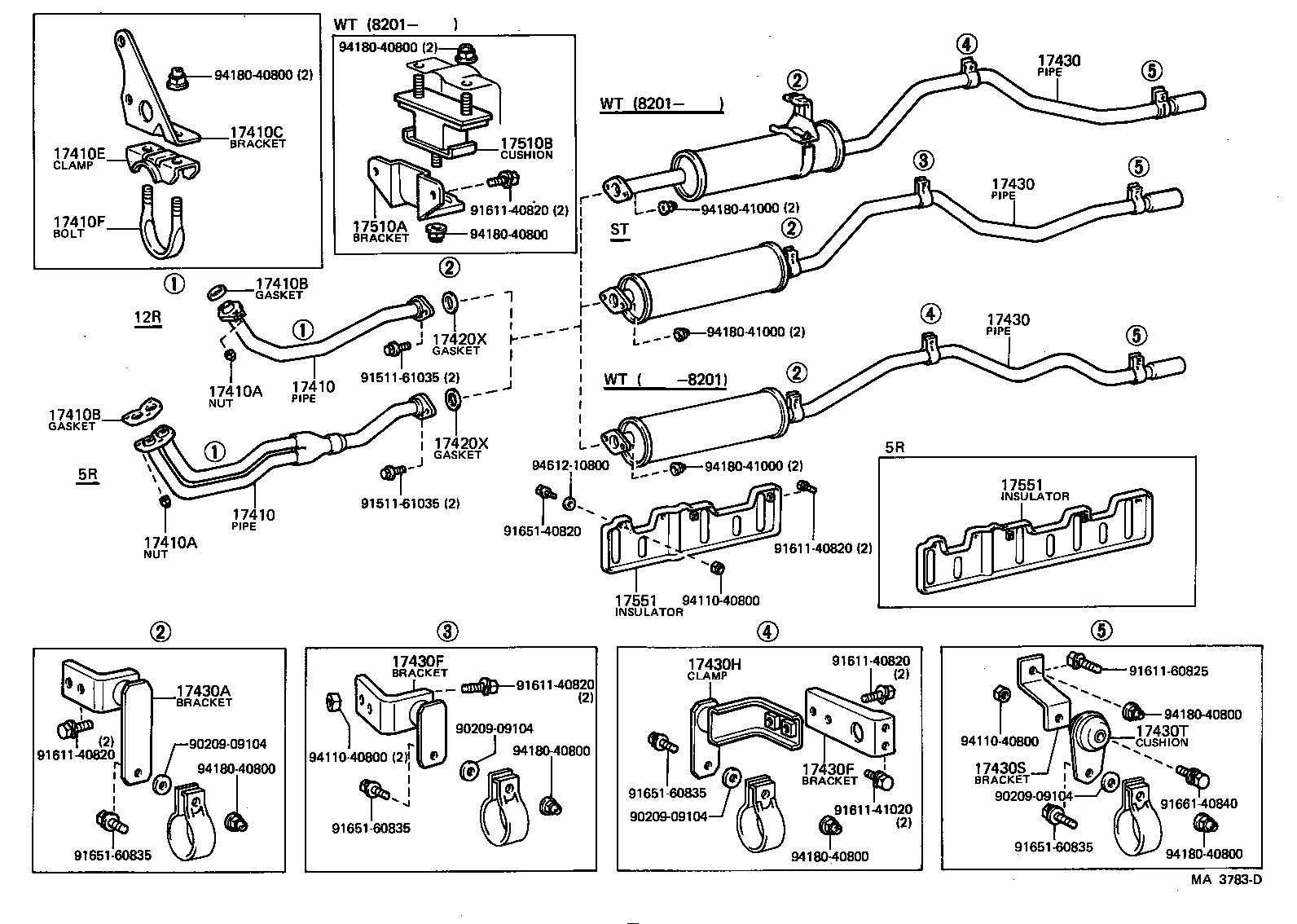

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-44110 |
5R..RY3# |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-44110 |
5R..RY3# |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10118 |
L,2L,5R..LY2#,3#,RY3# |
3 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10118 |
L,2L,5R..LY2#,3#,RY3# |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-41010 |
5R..RY3# |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-41010 |
5R..RY3# |
1 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-44070 |
12R,5R..RY2#,3# |
1 | ||
| 17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 90917-04005 |
5R..RY3# |
1 | ||
| 17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 90117-08013 |
5R..RY3# |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06004 |
L,12R,2L,5R..LY2#,3#,RY2#,3# |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06004 |
L,12R,2L,5R..LY2#,3#,RY2#,3# |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-31210 |
L,12R,5R..LY30,RY20,31..WT |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-31210 |
L,12R,5R..LY30,RY20,31..WT |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-31210 |
L,12R,5R..LY30,RY20,31..WT |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17561-31100 |
L,12R,5R..LY30,RY20,31 |
1 | ||
| 17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17572-31040 |
L,12R,2L,5R..LY2#,3#,RY2#,3#..WT |
1 | ||
| 17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17572-31040 |
L,12R,2L,5R..LY2#,3#,RY2#,3#..WT |
1 | ||
| 17430H - CLAMP NO.1, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17563-31080 |
L,12R,2L,5R..LY2#,3#,RY2#,3#..WT |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17573-44020 |
L,12R,2L,5R..LY2#,3#,RY2#,3# |
1 | ||
| 17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90917-08004 |
L,12R,5R..LY20,30,RY20,31 |
1 | ||
| 17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1 | ||||
| 17551-25030 |
5R..RY3# |
1 | ||
| 17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1 | ||||
| 17551-25030 |
5R..RY3# |
1 | ||
| Common parts | ||||
| 90209-09104 | ||||
| 91511-61035 | ||||
| 91611-40820 | ||||
| 91611-41020 | ||||
| 91611-60825 | ||||
| 91651-40820 | ||||
| 91651-60835 | ||||
| 91661-40840 | ||||
| 94110-40800 | ||||
| 94180-40800 | ||||
| 94180-41000 | ||||
| 94612-10800 | ||||
(8009- )B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-44110 |
5R..RY3# |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10118 |
L,2L,5R..LY2#,3#,RY3# |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-41010 |
5R..RY3# |
1 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-44070 |
12R,5R..RY2#,3# |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06004 |
L,12R,2L,5R..LY2#,3#,RY2#,3# |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-31210 |
L,12R,5R..LY30,RY20,31..WT |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-31210 |
L,12R,5R..LY30,RY20,31..WT |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-31210 |
L,12R,5R..LY30,RY20,31..WT |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17561-31100 |
L,12R,5R..LY30,RY20,31 |
1 | ||
| 17430H - CLAMP NO.1, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17563-31080 |
L,12R,2L,5R..LY2#,3#,RY2#,3#..WT |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17573-44020 |
L,12R,2L,5R..LY2#,3#,RY2#,3# |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17573-44020 |
L,12R,2L,5R..LY2#,3#,RY2#,3# |
1 | ||
| Common parts | ||||
| 91611-40820 | ||||
| 91611-60835 | ||||
| 94110-40800 | ||||
| 94180-40800 | ||||
