RY31-JDP (1979)
Toyota Toyoace
Production
Mar 1979
-
Jan 1982
Engine
5R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7903- )TW

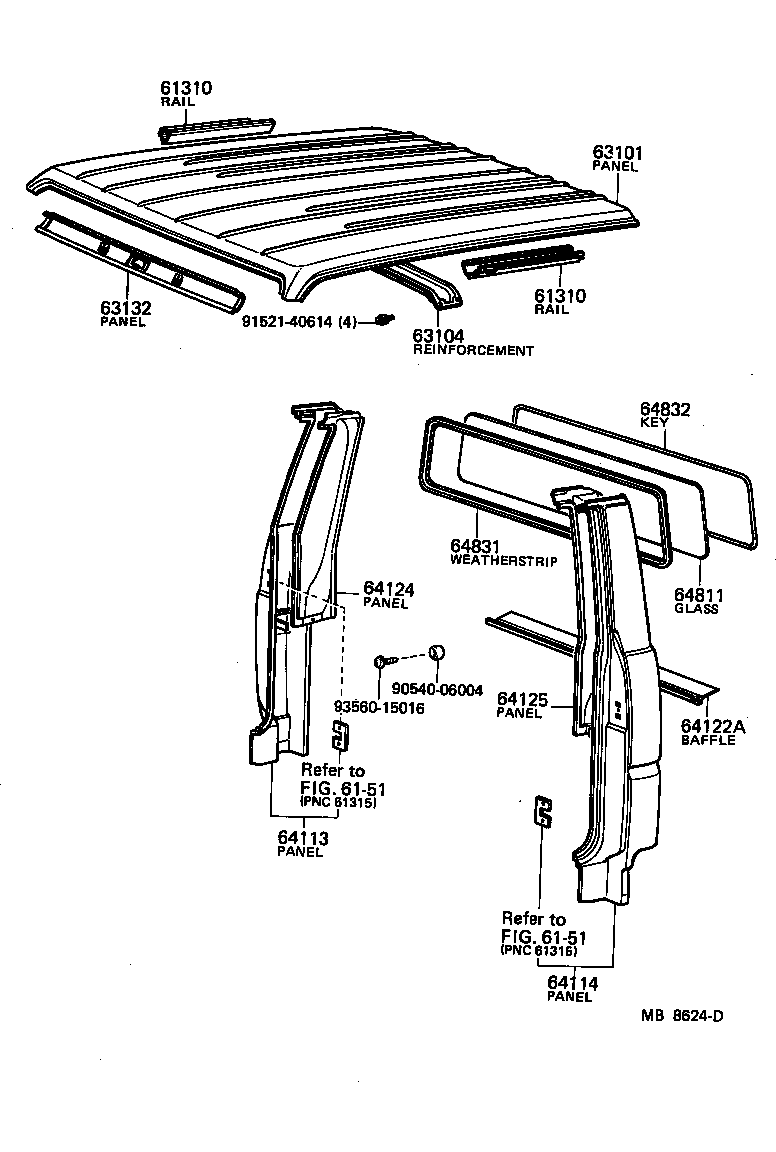

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61310 - RAIL ASSY, ROOF SIDE, NO.2 | ||||
| 61310-95011 |
LY20,30,RY20,31..TW RH |
1 | ||
| 61320-95011 |
LY20,30,RY20,31..TW LH |
1 | ||
| 61310 - RAIL ASSY, ROOF SIDE, NO.2 | ||||
| 61310-95011 |
LY20,30,RY20,31..TW RH |
1 | ||
| 61320-95011 |
LY20,30,RY20,31..TW LH |
1 | ||
| 63101 - PANEL SUB-ASSY, ROOF | ||||
| 63111-95015 |
LY20,3#,RY2#,3#..TW |
1 | ||
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63143-95011 |
LY20,3#,RY2#,3#..TW |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63103-95011 |
BY30,JY30,LY20,30,RY20,31 |
1 | ||
| 63103-95012 |
JY30,LY20,30,RY20,31..ST W/(VISOR=DRIVER SIDE ONLY) |
1 | ||
| 64113 - PANEL, BACK CORNER, OUTER RH | ||||
| 64103-95013 |
LY20,30,RY20,31..TW1 |
1 | ||
| 64114 - PANEL, BACK CORNER, OUTER LH | ||||
| 64104-95013 |
LY20,3#,RY2#,3#..TW |
1 | ||
| 64122A - BAFFLE, DUST REAR BODY | ||||
| 64122-95017 |
LY20,30,RY20,31..TW |
1 | ||
| 64124 - PANEL, BACK CORNER, INSIDE, RH | ||||
| 64107-95015 |
LY20,3#,RY2#,3#..TW |
1 | ||
| 64125 - PANEL, BACK CORNER, INSIDE, LH | ||||
| 64108-95017 |
LY20,3#,RY2#,3#..TW W/RR HEATER |
1 | ||
| 64108-95016 |
LY20,3#,RY2#,3#..TW |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-95016 |
LY20,3#,RY2#,3#..TW |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64831-95016 |
LY20,3#,RY2#,3#..TW |
1 | ||
| 64832 - KEY, BACK WINDOW WEATHERSTRIP | ||||
| 64832-95013 |
LY20,3#,RY2#,3#..TW |
1 | ||
| Common parts | ||||
| 90540-06004 | ||||
| 91521-40614 | ||||
| 93560-15016 | ||||
| Linked diagrams | ||||
| 6151 | ||||
