RY31-JDLT (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

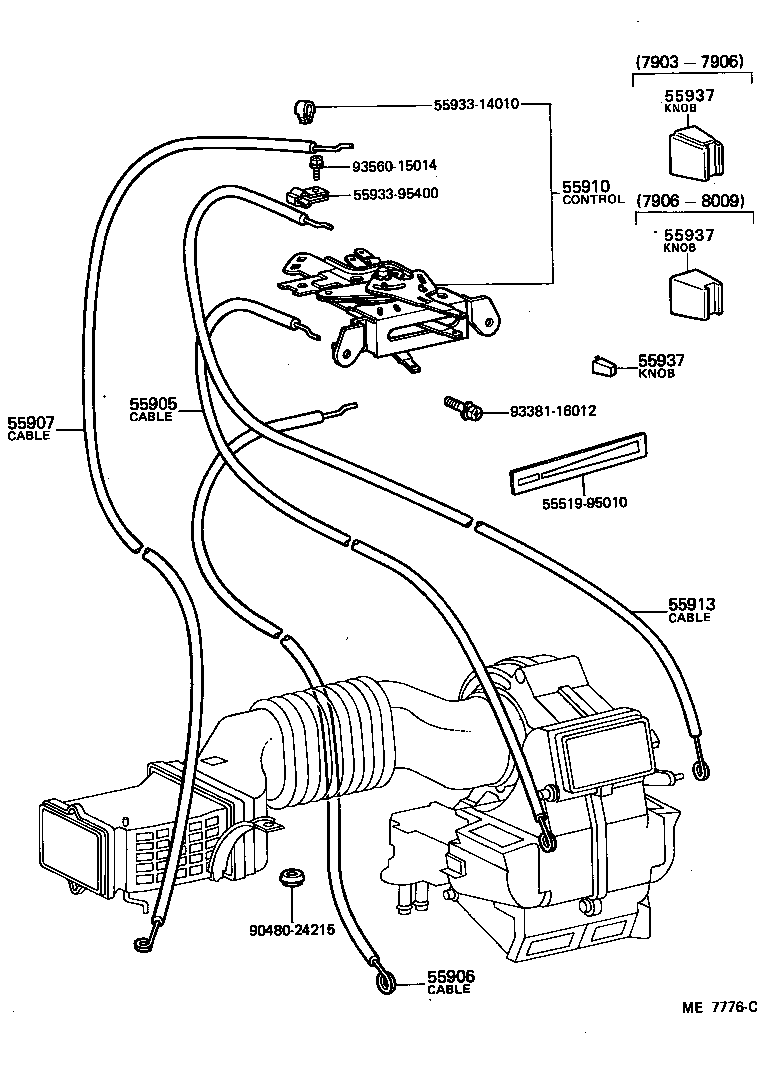

ILLUST NO. 1 OF 2(7903- )

Click highlighted areas on diagram

diagram 5551995010 55905 55906 55907 55910 55913 5593314010 5593395400 55937 55937 55937 9048024215 9338116012 9356015014
Part # Description Qty Price
55905 - CABLE SUB-ASSY, DEFROST CONTROL
55906-95012

BY3#,JY30,LY2#,3#,RY2#,3#

 1
55906 - CABLE SUB-ASSY, HEATER CONTROL
55907-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
55907 - CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY
55908-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-95011

JY30,LY20,30,RY20,31

 1
55913 - CABLE SUB-ASSY, BOOST VENT CONTROL
55909-95011

BY3#,JY30,LY2#,3#,RY2#,3#

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-20140

JY30,LY20,30,RY20,31

 3
55905-20120

JY30,LY20,30,RY20,31

 3
55937 - KNOB, HEATER CONTROL LEVER
55905-20140

JY30,LY20,30,RY20,31

 3
55905-20120

JY30,LY20,30,RY20,31

 3
55937 - KNOB, HEATER CONTROL LEVER
55905-20140

JY30,LY20,30,RY20,31

 3
55905-20120

JY30,LY20,30,RY20,31

 3
Common parts
55519-95010
55933-14010
55933-95400
90480-24215
93381-16012
93560-15014

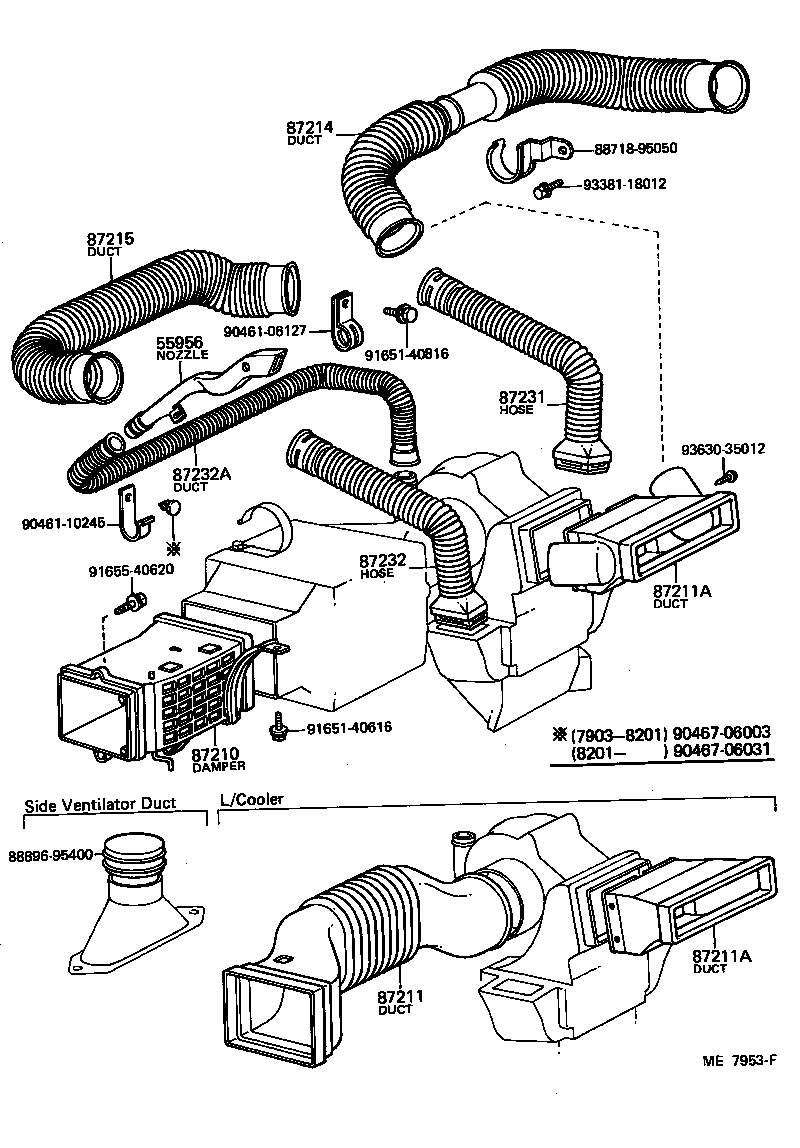

ILLUST NO. 2 OF 2(7903- )

Click highlighted areas on diagram

diagram 55956 87210 87211 87211A 87211A 87214 87215 87231 87232 87232A 8871895050 8889695400 9046106127 9046110245 9046706003 9046706031 9165140616 9165140816 9165540620 9338118012 9363035012
Part # Description Qty Price
55956 - NOZZLE, SIDE DEFROSTER
87234-95010

BY30,JY30,LY20,30,RY20,31

 1
87210 - DAMPER ASSY, AIR
87210-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
87211 - DUCT, AIR, NO.1
87211-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
87211A - DUCT, AIR, NO.2
87201-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
88566-95010

BY3#,JY30,LY2#,3#,RY2#,3#

W/COOLER

 1
87211A - DUCT, AIR, NO.2
87201-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
88566-95010

BY3#,JY30,LY2#,3#,RY2#,3#

W/COOLER

 1
87214 - DUCT, AIR, SIDE NO.1 RH
88566-95020

BY30,JY30,LY20,30,RY20,31

W/COOLER

 1
87215 - DUCT, AIR, SIDE NO.1 LH
88566-95030

BY3#,JY30,LY2#,3#,RY2#,3#

W/COOLER

 1
87231 - HOSE, HEATER DEFROSTER, RH
87231-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
87232 - HOSE, HEATER DEFROSTER, LH
87231-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
87232A - DUCT, HEATER DEFROSTER, SIDE NO.1 LH
87232-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
Common parts
88718-95050
88896-95400
90461-06127
90461-10245
90467-06003
90467-06031
91651-40616
91651-40816
91655-40620
93381-18012
93630-35012
