RY31-JDGT (1979)
Toyota Toyoace
Production
Mar 1979
-
Jan 1982
Engine
5R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7903- )12R,5R

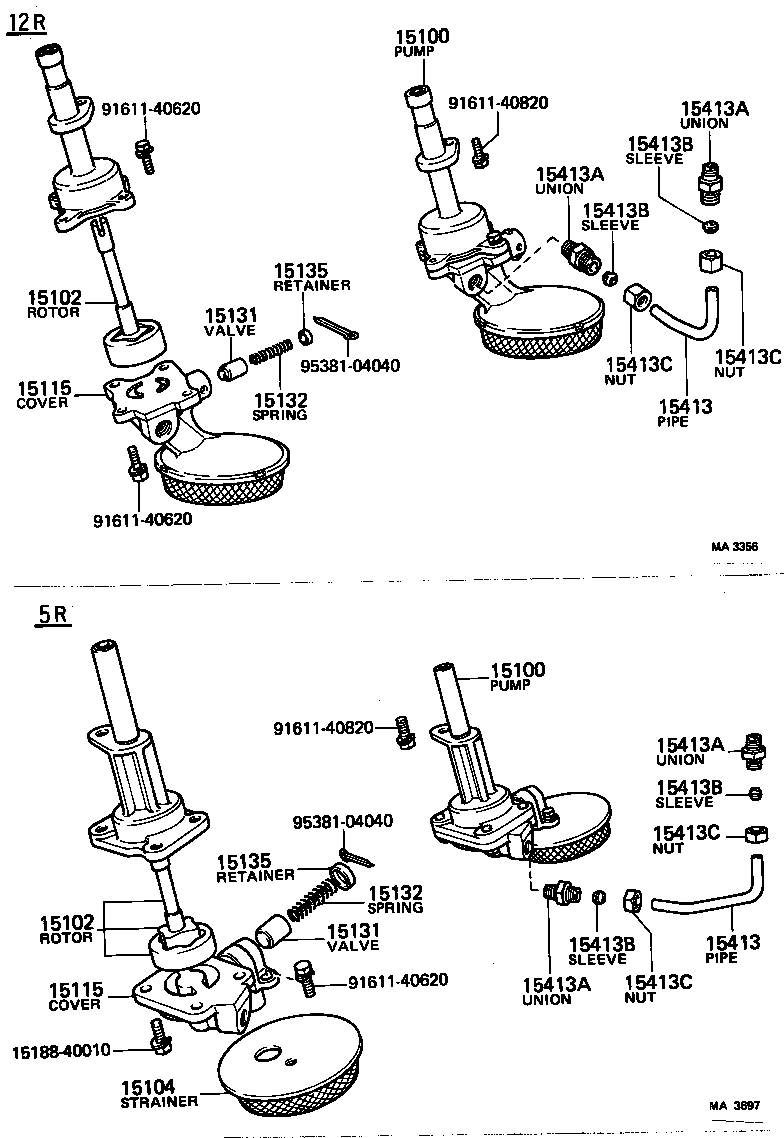

Click highlighted areas on diagram
MA3356,MA3697
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15100 - PUMP ASSY, OIL | ||||
| 15100-44030 |
5R..RY3# |
1 | ||
| 15100 - PUMP ASSY, OIL | ||||
| 15100-44030 |
5R..RY3# |
1 | ||
| 15102 - ROTOR SET, OIL PUMP | ||||
| 15102-44030 |
5R..RY3# |
1 | ||
| 15102 - ROTOR SET, OIL PUMP | ||||
| 15102-44030 |
5R..RY3# |
1 | ||
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15104-44011 |
5R..RY3# |
1 | ||
| 15115 - COVER, OIL PUMP | ||||
| 15012-44030 |
5R..RY3# |
1 | ||
| 15115 - COVER, OIL PUMP | ||||
| 15012-44030 |
5R..RY3# |
1 | ||
| 15131 - VALVE, OIL PUMP RELIEF | ||||
| 15131-24010 |
12R,5R..RY2#,3# |
1 | ||
| 15131 - VALVE, OIL PUMP RELIEF | ||||
| 15131-24010 |
12R,5R..RY2#,3# |
1 | ||
| 15132 - SPRING, OIL PUMP RELIEF VALVE | ||||
| 15132-40010 |
12R,5R..RY2#,3# |
1 | ||
| 15132 - SPRING, OIL PUMP RELIEF VALVE | ||||
| 15132-40010 |
12R,5R..RY2#,3# |
1 | ||
| 15135 - RETAINER, OIL PUMP RELIEF VALVE | ||||
| 15135-77010 |
5R..RY3# |
1 | ||
| 15135 - RETAINER, OIL PUMP RELIEF VALVE | ||||
| 15135-77010 |
5R..RY3# |
1 | ||
| 15413 - PIPE, OIL PUMP OUTLET | ||||
| 15413-40010 |
5R..RY3# |
1 | ||
| 15413 - PIPE, OIL PUMP OUTLET | ||||
| 15413-40010 |
5R..RY3# |
1 | ||
| 15413A - UNION(FOR OIL PUMP OUTLET PIPE) | ||||
| 90404-16008 |
12R,5R..RY2#,3# |
2 | ||
| 15413A - UNION(FOR OIL PUMP OUTLET PIPE) | ||||
| 90404-16008 |
12R,5R..RY2#,3# |
2 | ||
| 15413A - UNION(FOR OIL PUMP OUTLET PIPE) | ||||
| 90404-16008 |
12R,5R..RY2#,3# |
2 | ||
| 15413A - UNION(FOR OIL PUMP OUTLET PIPE) | ||||
| 90404-16008 |
12R,5R..RY2#,3# |
2 | ||
| 15413B - SLEEVE, BALL(FOR OIL PUMP OUTLET PIPE) | ||||
| 90410-11005 |
12R,5R..RY2#,3# |
2 | ||
| 15413B - SLEEVE, BALL(FOR OIL PUMP OUTLET PIPE) | ||||
| 90410-11005 |
12R,5R..RY2#,3# |
2 | ||
| 15413B - SLEEVE, BALL(FOR OIL PUMP OUTLET PIPE) | ||||
| 90410-11005 |
12R,5R..RY2#,3# |
2 | ||
| 15413B - SLEEVE, BALL(FOR OIL PUMP OUTLET PIPE) | ||||
| 90410-11005 |
12R,5R..RY2#,3# |
2 | ||
| 15413C - NUT, UNION(FOR OIL PUMP OUTLET PIPE) | ||||
| 90402-16042 |
12R,5R..RY2#,3# |
2 | ||
| 15413C - NUT, UNION(FOR OIL PUMP OUTLET PIPE) | ||||
| 90402-16042 |
12R,5R..RY2#,3# |
2 | ||
| 15413C - NUT, UNION(FOR OIL PUMP OUTLET PIPE) | ||||
| 90402-16042 |
12R,5R..RY2#,3# |
2 | ||
| 15413C - NUT, UNION(FOR OIL PUMP OUTLET PIPE) | ||||
| 90402-16042 |
12R,5R..RY2#,3# |
2 | ||
| Common parts | ||||
| 15188-40010 | ||||
| 91611-40620 | ||||
| 91611-40820 | ||||
| 95381-04040 | ||||
(8009- )B
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15104-44011 |
5R..RY3# |
1 | ||
| 15115 - COVER, OIL PUMP | ||||
| 15012-44030 |
5R..RY3# |
1 | ||
| 15131 - VALVE, OIL PUMP RELIEF | ||||
| 15131-24010 |
12R,5R..RY2#,3# |
1 | ||
| 15132 - SPRING, OIL PUMP RELIEF VALVE | ||||
| 15132-40010 |
12R,5R..RY2#,3# |
1 | ||
| Common parts | ||||
| 90179-08088 | ||||
| 91661-60816 | ||||
| 92122-60832 | ||||
| 93220-16012 | ||||
