RY31-JDD (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8201)LY20,30 ; (7903-8201)RY20,31..T2,T3

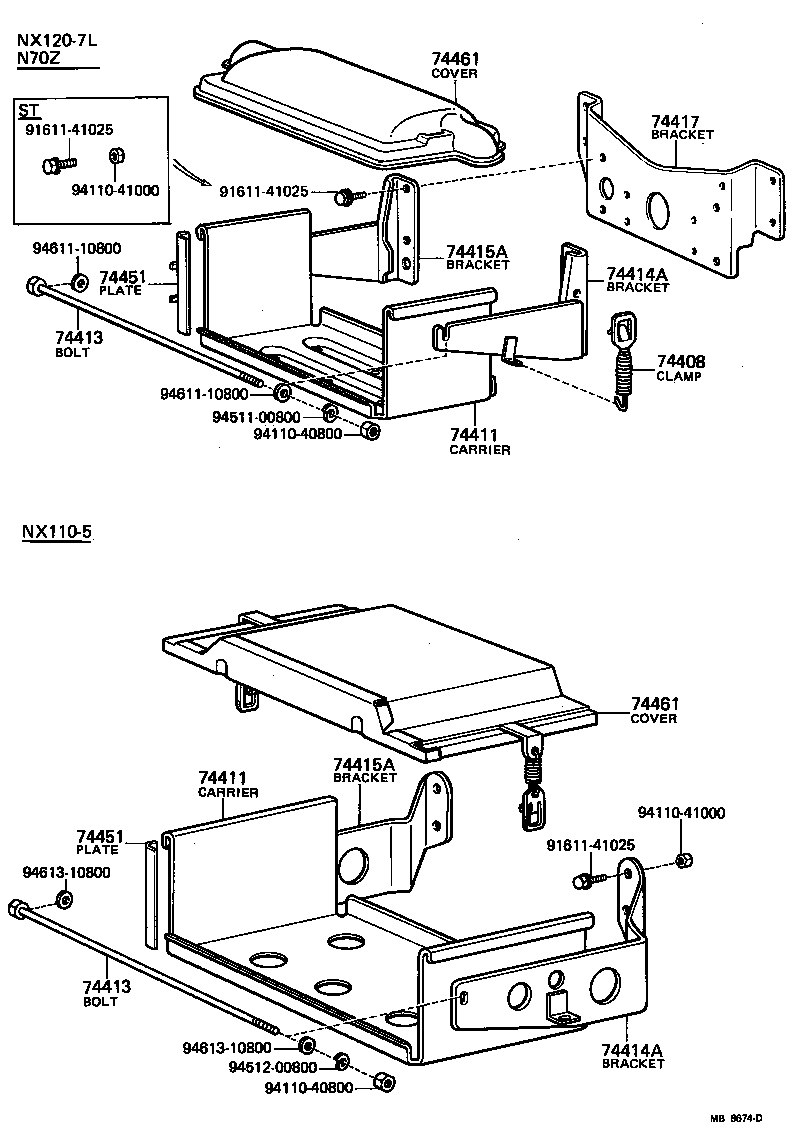

Click highlighted areas on diagram

diagram 74408 74411 74411 74413 74413 74414A 74414A 74415A 74415A 74417 74451 74451 74461 74461 9161141025 9161141025 9161141025 9411040800 9411040800 9411041000 9411041000 9451100800 9451200800 9461110800 9461110800 9461310800 9461310800
Part # Description Qty Price
74408 - CLAMP SUB-ASSY, BATTERY COVER
74408-55020

RY31..T2,T3

12V,N70Z

 2
74411 - CARRIER, BATTERY
74411-25020

RY31

12V,N50Z

 1
74421-36010

RY20,31..T2,T3

12V,N70Z

 1
74421-25010

RY2#,3#

12V,NS40ZAL

 1
74411 - CARRIER, BATTERY
74411-25020

RY31

12V,N50Z

 1
74421-36010

RY20,31..T2,T3

12V,N70Z

 1
74421-25010

RY2#,3#

12V,NS40ZAL

 1
74413 - BOLT, BATTERY CLAMP
74451-25020

RY20,31

12V,NS40ZAL,N50 & N50Z

 2
90101-08132

RY20,31..T2,T3

12V,N70Z

 1
74413 - BOLT, BATTERY CLAMP
74451-25020

RY20,31

12V,NS40ZAL,N50 & N50Z

 2
90101-08132

RY20,31..T2,T3

12V,N70Z

 1
74414A - BRACKET, BATTERY, NO.1
74401-36011

RY20,31..T3

12V,N70Z

 1
74411-25011

RY2#,3#

12V,NS40ZAL & N50

 1
74414A - BRACKET, BATTERY, NO.1
74401-36011

RY20,31..T3

12V,N70Z

 1
74411-25011

RY2#,3#

12V,NS40ZAL & N50

 1
74415A - BRACKET, BATTERY, NO.2
74402-36011

RY20,31..T3

12V,N70Z

 1
74412-25011

RY2#,3#

12V,NS40ZAL & N50

 1
74415A - BRACKET, BATTERY, NO.2
74402-36011

RY20,31..T3

12V,N70Z

 1
74412-25011

RY2#,3#

12V,NS40ZAL & N50

 1
74451 - PLATE, BATTERY CARRIER SUPPORT
74451-36040

RY20,31..T2,T3

12V,N70Z

 2
74451 - PLATE, BATTERY CARRIER SUPPORT
74451-36040

RY20,31..T2,T3

12V,N70Z

 2
74461 - COVER, BATTERY
74461-36010

RY20,31..T2,T3

12V,N70Z

 1
74461-36011

RY20,31..T2,T3

12V,N70Z

 1
74461 - COVER, BATTERY
74461-36010

RY20,31..T2,T3

12V,N70Z

 1
74461-36011

RY20,31..T2,T3

12V,N70Z

 1
Common parts
91611-41025
94110-40800
94110-41000
94511-00800
94512-00800
94611-10800
94613-10800

(7903- )RY2#,3#

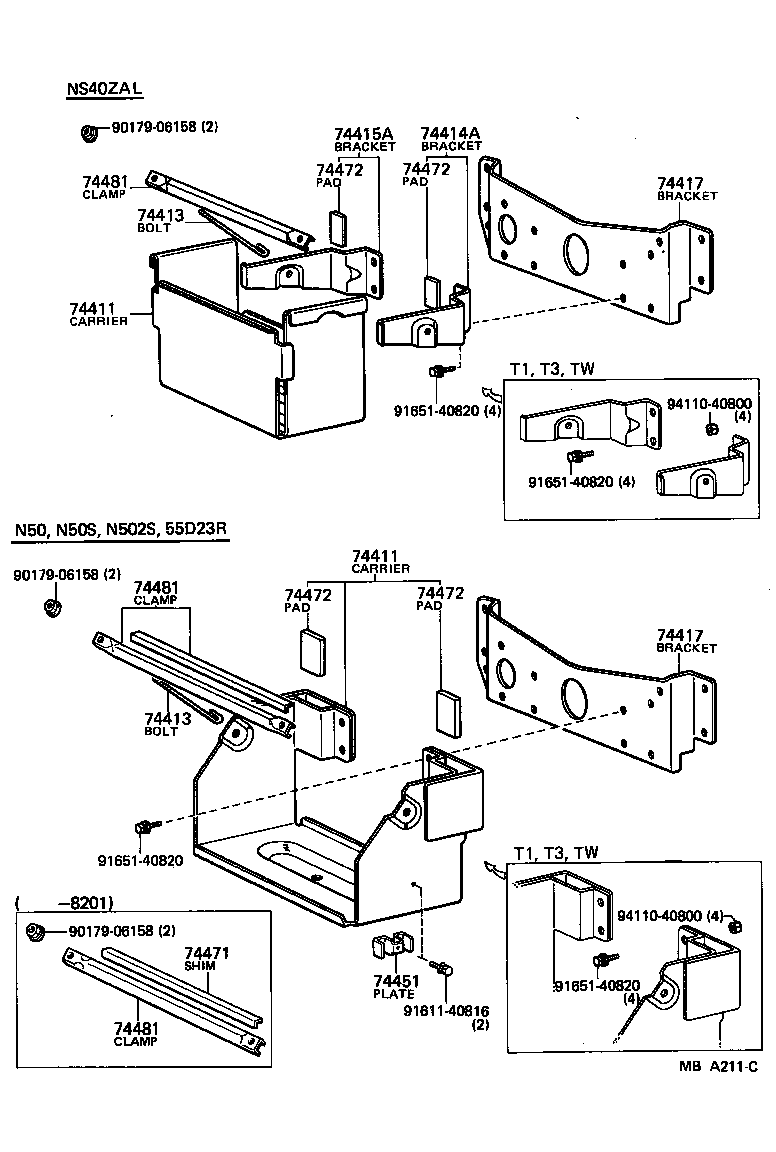

Click highlighted areas on diagram

diagram 74411 74411 74413 74413 74414A 74415A 74417 74417 74451 74471 74472 74472 74472 74472 74481 74481 74481 9017906158 9017906158 9017906158 9161140816 9165140820 9165140820 9165140820 9165140820 9411040800 9411040800
Part # Description Qty Price
74411 - CARRIER, BATTERY
74411-25020

RY31

12V,N50Z

 1
74421-36010

RY20,31..T2,T3

12V,N70Z

 1
74421-25010

RY2#,3#

12V,NS40ZAL

 1
74411 - CARRIER, BATTERY
74411-25020

RY31

12V,N50Z

 1
74421-36010

RY20,31..T2,T3

12V,N70Z

 1
74421-25010

RY2#,3#

12V,NS40ZAL

 1
74413 - BOLT, BATTERY CLAMP
74451-25020

RY20,31

12V,NS40ZAL,N50 & N50Z

 2
90101-08132

RY20,31..T2,T3

12V,N70Z

 1
74413 - BOLT, BATTERY CLAMP
74451-25020

RY20,31

12V,NS40ZAL,N50 & N50Z

 2
90101-08132

RY20,31..T2,T3

12V,N70Z

 1
74414A - BRACKET, BATTERY, NO.1
74401-36011

RY20,31..T3

12V,N70Z

 1
74411-25011

RY2#,3#

12V,NS40ZAL & N50

 1
74415A - BRACKET, BATTERY, NO.2
74402-36011

RY20,31..T3

12V,N70Z

 1
74412-25011

RY2#,3#

12V,NS40ZAL & N50

 1
74451 - PLATE, BATTERY CARRIER SUPPORT
74451-36040

RY20,31..T2,T3

12V,N70Z

 2
74471 - SHIM, BATTERY SET ANGLE
74471-35010

RY20,31

12V,N50 & N50Z

 1
74472 - PAD, BATTERY SIDE
74472-25020

RY20,31

12V,N50 & N50Z

 2
74472-25010

RY2#,3#

12V,NS40ZAL

 2
74472 - PAD, BATTERY SIDE
74472-25020

RY20,31

12V,N50 & N50Z

 2
74472-25010

RY2#,3#

12V,NS40ZAL

 2
74472 - PAD, BATTERY SIDE
74472-25020

RY20,31

12V,N50 & N50Z

 2
74472-25010

RY2#,3#

12V,NS40ZAL

 2
74472 - PAD, BATTERY SIDE
74472-25020

RY20,31

12V,N50 & N50Z

 2
74472-25010

RY2#,3#

12V,NS40ZAL

 2
74481 - CLAMP, BATTERY HOLD DOWN
74413-36010

RY20,31

12V,N50Z

 1
74453-25020

RY2#,3#

12V,NS40ZAL

 1
74481 - CLAMP, BATTERY HOLD DOWN
74413-36010

RY20,31

12V,N50Z

 1
74453-25020

RY2#,3#

12V,NS40ZAL

 1
74481 - CLAMP, BATTERY HOLD DOWN
74413-36010

RY20,31

12V,N50Z

 1
74453-25020

RY2#,3#

12V,NS40ZAL

 1
Common parts
90179-06158
91611-40816
91651-40820
94110-40800
