RY31-JDD (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

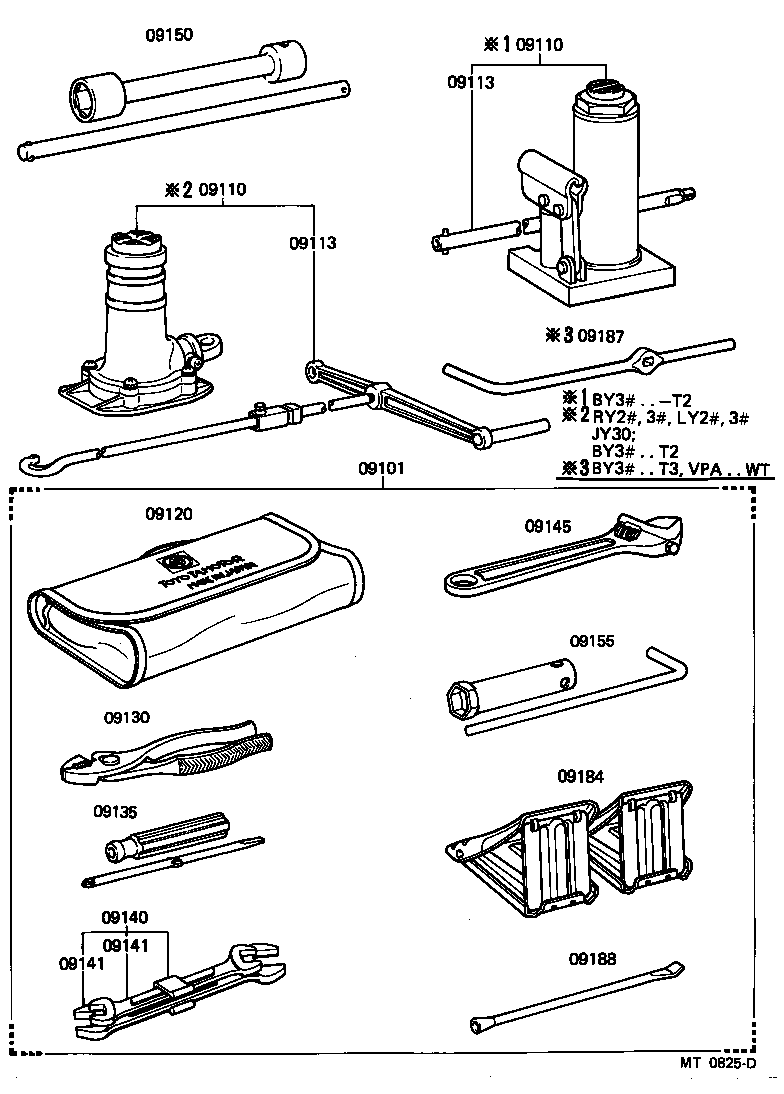

Click highlighted areas on diagram

diagram 09101 09110 09110 09113 09113 09120 09130 09135 09140 09141 09141 09145 09150 09155 09184 09187 09188
Part # Description Qty Price
09101 - TOOL SET, STANDARD W/O JACK
09102-25010

RY2#,3#

 1
09110 - JACK ASSY
09110-25040

LY20,30,RY2#,3#

 1
09110 - JACK ASSY
09110-25040

LY20,30,RY2#,3#

 1
09113 - HANDLE, JACK
09113-25030

LY20,30,RY2#,3#

 1
09113 - HANDLE, JACK
09113-25030

LY20,30,RY2#,3#

 1
09120 - BAG, TOOL
09120-36020

BY3#,JY30,LY2#,3#,RY2#,3#

 1
09130 - PLIERS
09130-00010

BY30,JY30,LY20,30,RY2#,3#

 1
09135 - DRIVER, SCREW
99915-10700

BY3#,JY30,LY2#,3#,RY2#,3#

 1
09140 - SPANNER SET
09140-27010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
09141 - SPANNER
99914-11417

BY3#,JY30,LY2#,3#,RY2#,3#

14 X 17,14X17

 1
99914-11012

BY3#,JY30,LY2#,3#,RY2#,3#

10 X 12,10X12

 1
09141 - SPANNER
99914-11417

BY3#,JY30,LY2#,3#,RY2#,3#

14 X 17,14X17

 1
99914-11012

BY3#,JY30,LY2#,3#,RY2#,3#

10 X 12,10X12

 1
09145 - WRENCH, MONKEY
99911-10200

BY3#,JY30,LY2#,3#,RY2#,3#

 1
09150 - WRENCH, HUB NUT BOX
09150-25010

LY2#,3#,RY2#,3#

 1
09155 - WRENCH, SPARK PLUG
09155-44010

RY2#,3#

 1
09184 - STOPPER, WHEEL
09184-00031

BY3#,JY30,LY2#,3#,RY2#,3#

 2
09188 - WRENCH, VALVE CAP
09188-00020

BY3#,JY30,LY2#,3#,RY2#,3#

 1
