RY31-JDB3 (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

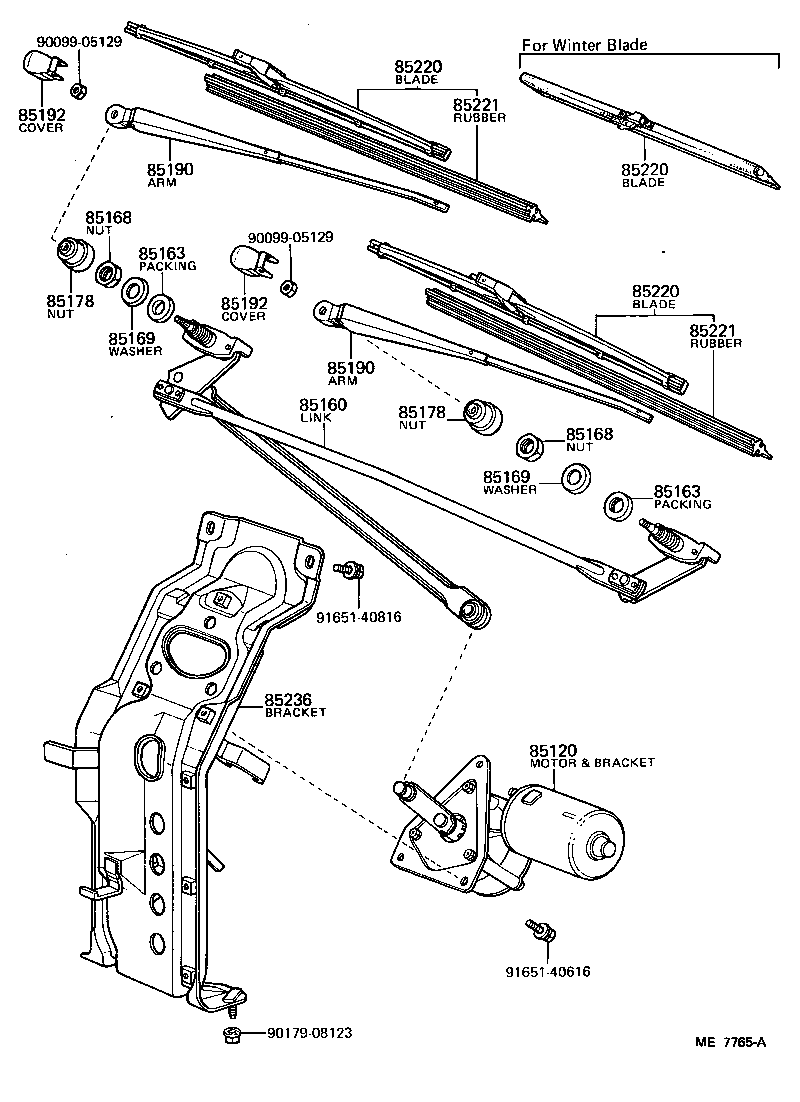

Click highlighted areas on diagram

diagram 85120 85160 85163 85163 85168 85168 85169 85169 85178 85178 85190 85190 85192 85192 85220 85220 85220 85221 85221 85236 9009905129 9009905129 9017908123 9165140616 9165140816
Part # Description Qty Price
85120 - MOTOR AND BRACKET ASSY, WINDSHIELD WIPER
85120-95011

JY30,LY20,30,RY20,31

12V

 1
85120-95014

RY20,31

12V,COLD SPEC

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-95014

BY3#,JY30,LY2#,3#,RY2#,3#

 1
85163 - PACKING, WINDSHIELD WIPER PIVOT
85185-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 2
85163 - PACKING, WINDSHIELD WIPER PIVOT
85185-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 2
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
85168-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 2
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
85168-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 2
85169 - WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
85169-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 2
85169 - WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
85169-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
85135-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
85135-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-95013

BY3#,JY30,LY2#,3#,RY2#,3#

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-95013

BY3#,JY30,LY2#,3#,RY2#,3#

 2
85192 - COVER, WINDSHIELD WIPER ARM
85195-95401

BY3#,JY30,LY2#,3#,RY2#,3#

 2
85192 - COVER, WINDSHIELD WIPER ARM
85195-95401

BY3#,JY30,LY2#,3#,RY2#,3#

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-30110

LY30..ST;LY30..T2,VP,VPS,VT;BY30,JY30,LY20,RY20,31

WINTER BLADE

 2
85220-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-30110

LY30..ST;LY30..T2,VP,VPS,VT;BY30,JY30,LY20,RY20,31

WINTER BLADE

 2
85220-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-30110

LY30..ST;LY30..T2,VP,VPS,VT;BY30,JY30,LY20,RY20,31

WINTER BLADE

 2
85220-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 2
85221 - BLADE, WINDSHIELD WIPER
85221-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 2
85221 - BLADE, WINDSHIELD WIPER
85221-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 2
85236 - BRACKET, WINDSHIELD WIPER
85109-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
Common parts
90099-05129
90179-08123
91651-40616
91651-40816
