RY31-JDB (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

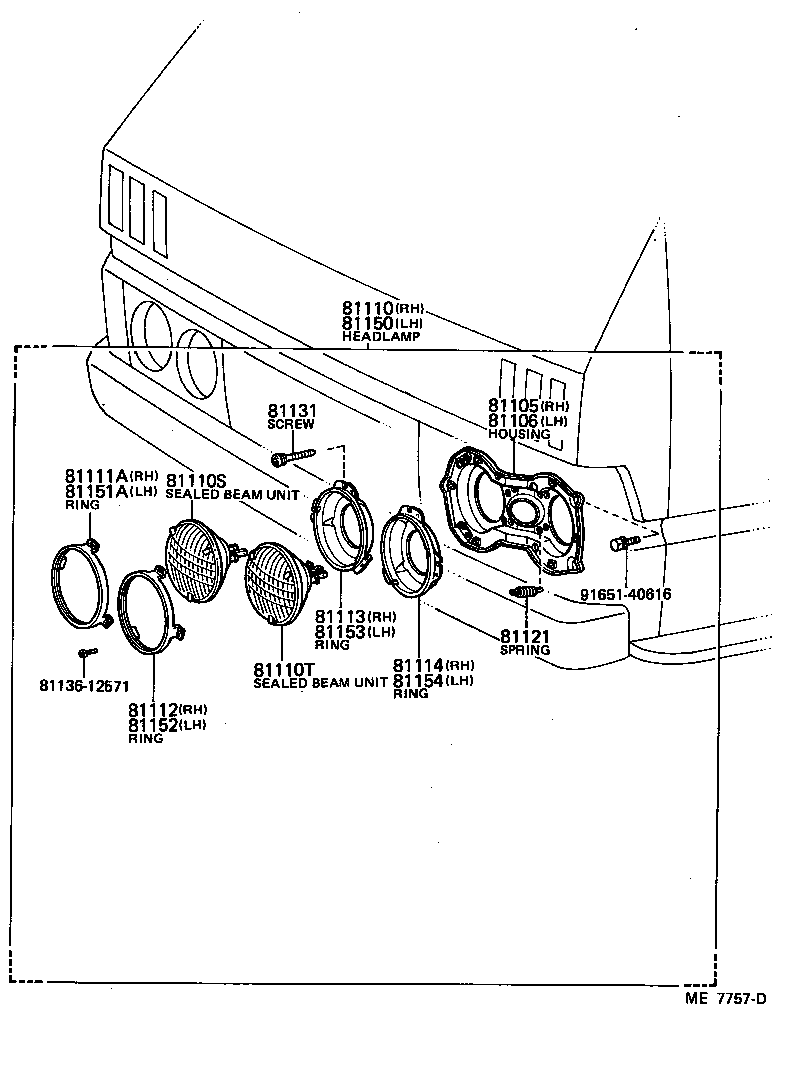

Click highlighted areas on diagram

diagram 81105 81106 81110 81110S 81110T 81111A 81112 81113 81114 81121 81131 8113612571 81150 81151A 81152 81153 81154 9165140616
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
81110 - HEADLAMP ASSY, RH
81110-29885

JY30,LY2#,3#,RY2#,3#

12V

 1
81110S - SEALED BEAM UNIT, NO.1
90981-02011

JY30,LY2#,3#,RY2#,3#

12V 37.5W,*WB,12V 37.5W

 2
81110T - SEALED BEAM UNIT, NO.2
90981-02012

JY30,LY2#,3#,RY2#,3#

12V 37.5/50W,*WB,12V 37.5/50W

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-20280

BY3#,JY30,LY2#,3#,RY2#,3#

 1
81112 - RING, SEALED BEAM RETAINING, NO.2 RH
81111-20280

BY3#,JY30,LY2#,3#,RY2#,3#

 1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81153-30150

BY30,JY30,LY20,30,RY2#,3#

 1
81114 - RING, SEALED BEAM MOUNTING, NO.2 RH
81114-30170

BY30,JY30,LY20,30,RY2#,3#

 1
81121 - SPRING, HEADLAMP TENSION
81121-20100

BY3#,JY30,LY2#,3#,RY2#,3#

 4
81131 - SCREW, HEADLAMP ADJUSTING
81131-20043

BY3#,JY30,LY2#,3#,RY2#,3#

 8
81150 - HEADLAMP ASSY, LH
81150-29885

JY30,LY2#,3#,RY2#,3#

12V

 1
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-20280

BY3#,JY30,LY2#,3#,RY2#,3#

 1
81152 - RING, SEALED BEAM RETAINING, NO.2 LH
81111-20280

BY3#,JY30,LY2#,3#,RY2#,3#

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81113-30170

BY30,JY30,LY20,30,RY2#,3#

 1
81154 - RING, SEALED BEAM MOUNTING, NO.2 LH
81154-30150

BY30,JY30,LY20,30,RY2#,3#

 1
Common parts
81136-12571
91651-40616
