RY31-JDB (1979)
Toyota Toyoace
Production
Mar 1979
-
Jan 1982
Engine
5R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7903- )

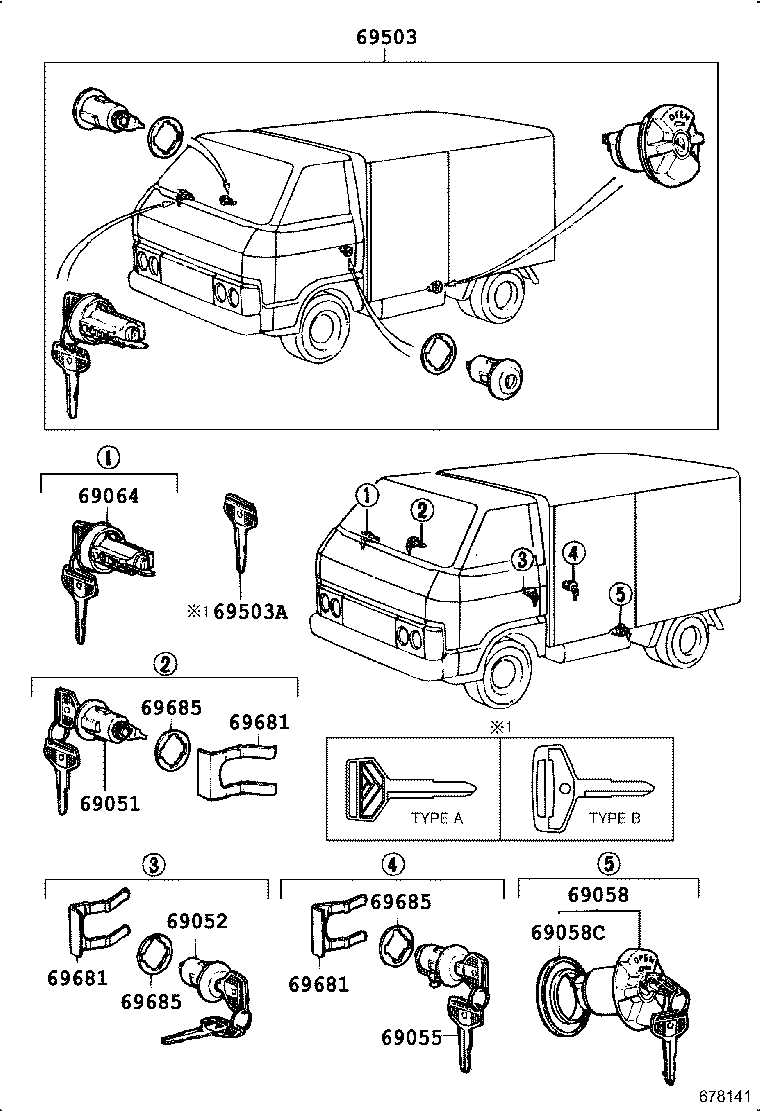

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-95012 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-95012 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 69058 - CYLINDER & KEY SET, FUEL FILLER LID | ||||
| 69058-95400 |
RY2#,3# |
1 | ||
| 69058C - GASKET, FUEL FILLER LID CYLINDER | ||||
| 77316-12031 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-95402 |
RY20,31 |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-95010 |
RY20,31 |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00066 |
RY20,31 ﾏｽﾀｰｷｰ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE | ||||
| 69681-95402 |
BY30,JY30,LY20,30,RY20,31 FR DOOR |
2 | ||
| 69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE | ||||
| 69681-95402 |
BY30,JY30,LY20,30,RY20,31 FR DOOR |
2 | ||
| 69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE | ||||
| 69681-95402 |
BY30,JY30,LY20,30,RY20,31 FR DOOR |
2 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69685-95400 |
BY30,JY30,LY20,RY20,31 FR DOOR |
2 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69685-95400 |
BY30,JY30,LY20,RY20,31 FR DOOR |
2 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69685-95400 |
BY30,JY30,LY20,RY20,31 FR DOOR |
2 | ||
