RY31-JDB (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

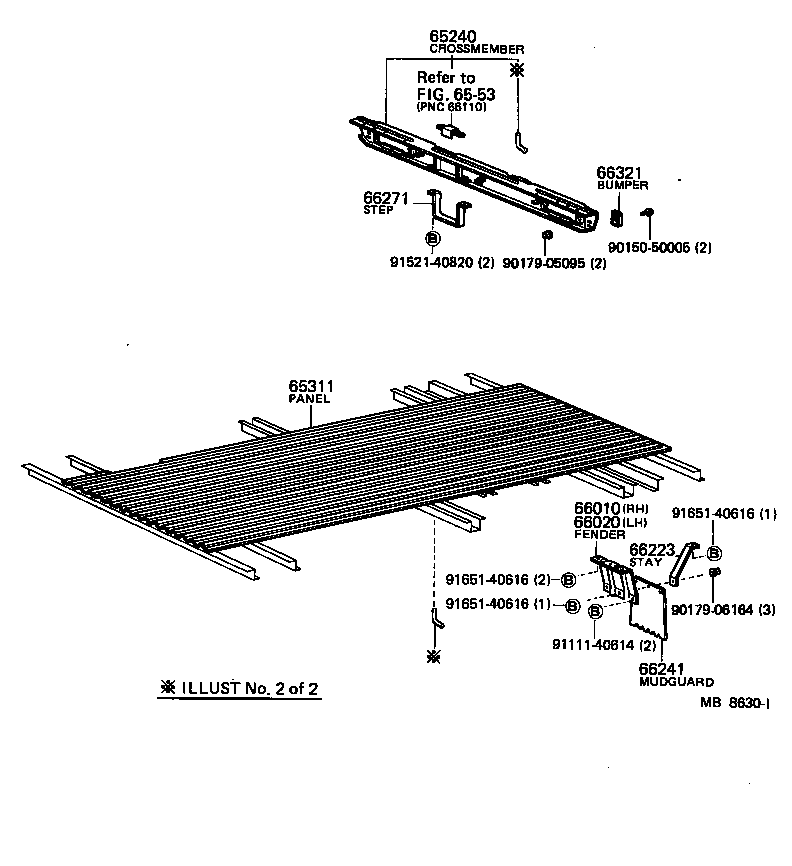

ILLUST NO. 1 OF 2(7903- )TR

Click highlighted areas on diagram

diagram 65240 65311 6553 66010 66020 66223 66241 66271 66321 9015050005 9017905095 9017906164 9111140614 9152140820 9165140616 9165140616 9165140616
Part # Description Qty Price
65240 - CROSSMEMBER, REAR BODY FLOOR, TAIL
65240-95030

LY20,30,RY20,31..T3..TS

 1
65240-95034

LY20,30,RY20,31..T3..TS..CBU

 1
66010 - FENDER ASSY, REAR BODY, REAR RH
66233-95401

JY30,LY20,30,RY2#,3#..T3..TS..CBU

 1
66020 - FENDER ASSY, REAR BODY, REAR LH
66234-95401

JY30,LY20,30,RY2#,3#..T3..TS..CBU

 1
66241 - MUDGUARD, REAR
66241-95600

JY30,LY20,30,RY2#,3#..TS..ST..CBU

 2
66271 - STEP, REAR BODY
66271-95018

LY2#,3#,RY2#,3#..T3..TS..CBU

 1
66321 - BUMPER, GATE RUBBER
66331-95010

LY20,30,RY20,31..(T2,T3)..TS

SIDE FR

 2
66321-95015

LY20,30,RY20,31..(T2,T3)..TS

SIDE RR & TAIL

 4
66331-95011

BY30,JY30,LY20,30,RY20,31..(T2,T3)..TS

TAIL

 2
66321-95015

JY30,LY20,30,RY20,31..(T2,T3)..TS

SIDE RR & TAIL

 4
66331-95010

JY30,LY20,30,RY20,31..(T2,T3)..TS

SIDE FR

 2
Common parts
90150-50005
90179-05095
90179-06164
91111-40614
91521-40820
91651-40616
Linked diagrams
6553

(7903- )T3..TS

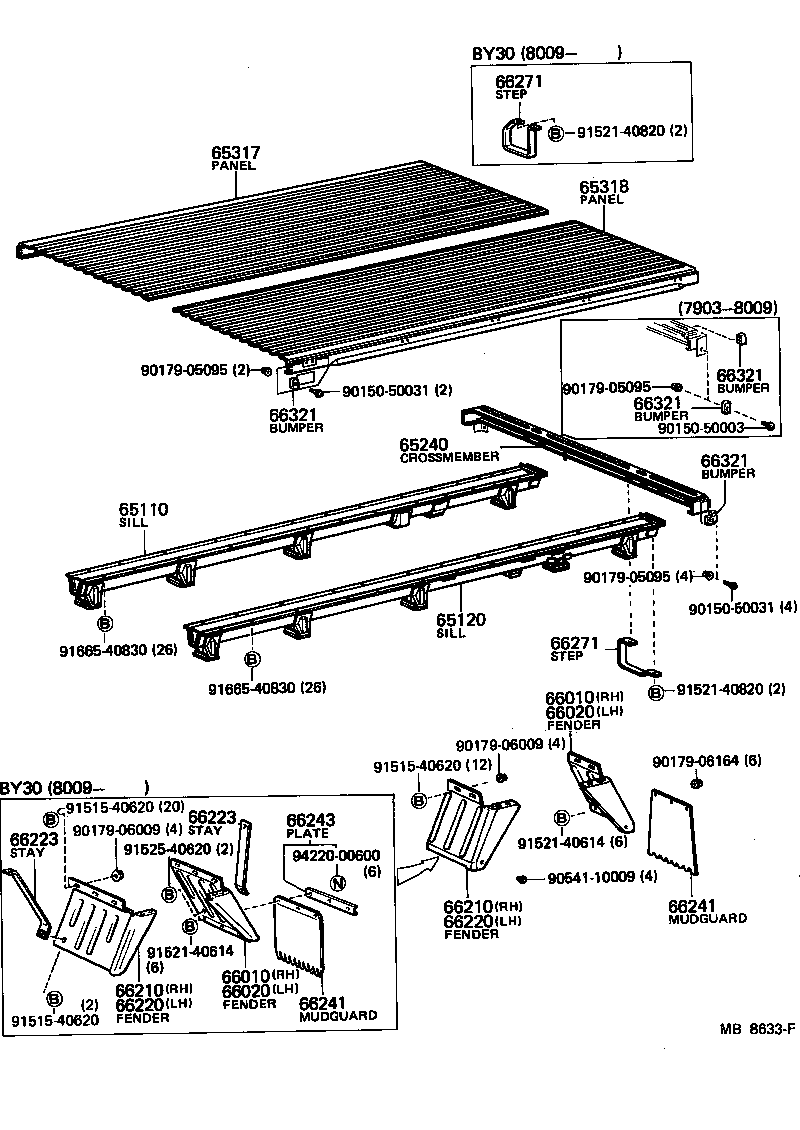

Click highlighted areas on diagram

diagram 65110 65120 65240 65317 65318 66010 66010 66020 66020 66210 66210 66220 66220 66223 66223 66241 66241 66243 66271 66271 66321 66321 66321 66321 9015050003 9015050031 9015050031 9017905095 9017905095 9017905095 9017906009 9017906009 9017906164 9054110009 9151540620 9151540620 9151540620 9152140614 9152140614 9152140820 9152140820 9152540620 9166540830 9166540830 9422000600
Part # Description Qty Price
65110 - SILL ASSY, MAIN, RH
65110-95017

LY3#,RY3#..T3..TS..CBU

 1
65120 - SILL ASSY, MAIN, LH
65120-95017

LY3#,RY3#..T3..TS..CBU

 1
65240 - CROSSMEMBER, REAR BODY FLOOR, TAIL
65240-95030

LY20,30,RY20,31..T3..TS

 1
65240-95034

LY20,30,RY20,31..T3..TS..CBU

 1
65317 - PANEL, FLOOR SIDE, RH
65317-95020

LY30,RY31..T3..TS

 1
65317-95026

JY30,RY31..T3..TS

DOUBLE WALL DECK

 1
65318 - PANEL, FLOOR SIDE, LH
65318-95025

JY30,RY31..T3..TS

DOUBLE WALL DECK

 1
65318-95019

LY30,RY31..T3..TS

 1
66010 - FENDER ASSY, REAR BODY, REAR RH
66233-95401

JY30,LY20,30,RY2#,3#..T3..TS..CBU

 1
66010 - FENDER ASSY, REAR BODY, REAR RH
66233-95401

JY30,LY20,30,RY2#,3#..T3..TS..CBU

 1
66020 - FENDER ASSY, REAR BODY, REAR LH
66234-95401

JY30,LY20,30,RY2#,3#..T3..TS..CBU

 1
66020 - FENDER ASSY, REAR BODY, REAR LH
66234-95401

JY30,LY20,30,RY2#,3#..T3..TS..CBU

 1
66210 - FENDER ASSY, REAR BODY, FRONT RH
66231-95012

JY30,LY20,30,RY2#,3#..T3..TS..CBU

 1
66210 - FENDER ASSY, REAR BODY, FRONT RH
66231-95012

JY30,LY20,30,RY2#,3#..T3..TS..CBU

 1
66220 - FENDER ASSY, REAR BODY, FRONT LH
66232-95012

JY30,LY20,30,RY2#,3#..T3..TS..CBU

 1
66220 - FENDER ASSY, REAR BODY, FRONT LH
66232-95012

JY30,LY20,30,RY2#,3#..T3..TS..CBU

 1
66241 - MUDGUARD, REAR
66241-95600

JY30,LY20,30,RY2#,3#..TS..ST..CBU

 2
66241 - MUDGUARD, REAR
66241-95600

JY30,LY20,30,RY2#,3#..TS..ST..CBU

 2
66271 - STEP, REAR BODY
66271-95018

LY2#,3#,RY2#,3#..T3..TS..CBU

 1
66271 - STEP, REAR BODY
66271-95018

LY2#,3#,RY2#,3#..T3..TS..CBU

 1
66321 - BUMPER, GATE RUBBER
66331-95010

LY20,30,RY20,31..(T2,T3)..TS

SIDE FR

 2
66321-95015

LY20,30,RY20,31..(T2,T3)..TS

SIDE RR & TAIL

 4
66331-95011

BY30,JY30,LY20,30,RY20,31..(T2,T3)..TS

TAIL

 2
66321-95015

JY30,LY20,30,RY20,31..(T2,T3)..TS

SIDE RR & TAIL

 4
66331-95010

JY30,LY20,30,RY20,31..(T2,T3)..TS

SIDE FR

 2
66321 - BUMPER, GATE RUBBER
66331-95010

LY20,30,RY20,31..(T2,T3)..TS

SIDE FR

 2
66321-95015

LY20,30,RY20,31..(T2,T3)..TS

SIDE RR & TAIL

 4
66331-95011

BY30,JY30,LY20,30,RY20,31..(T2,T3)..TS

TAIL

 2
66321-95015

JY30,LY20,30,RY20,31..(T2,T3)..TS

SIDE RR & TAIL

 4
66331-95010

JY30,LY20,30,RY20,31..(T2,T3)..TS

SIDE FR

 2
66321 - BUMPER, GATE RUBBER
66331-95010

LY20,30,RY20,31..(T2,T3)..TS

SIDE FR

 2
66321-95015

LY20,30,RY20,31..(T2,T3)..TS

SIDE RR & TAIL

 4
66331-95011

BY30,JY30,LY20,30,RY20,31..(T2,T3)..TS

TAIL

 2
66321-95015

JY30,LY20,30,RY20,31..(T2,T3)..TS

SIDE RR & TAIL

 4
66331-95010

JY30,LY20,30,RY20,31..(T2,T3)..TS

SIDE FR

 2
66321 - BUMPER, GATE RUBBER
66331-95010

LY20,30,RY20,31..(T2,T3)..TS

SIDE FR

 2
66321-95015

LY20,30,RY20,31..(T2,T3)..TS

SIDE RR & TAIL

 4
66331-95011

BY30,JY30,LY20,30,RY20,31..(T2,T3)..TS

TAIL

 2
66321-95015

JY30,LY20,30,RY20,31..(T2,T3)..TS

SIDE RR & TAIL

 4
66331-95010

JY30,LY20,30,RY20,31..(T2,T3)..TS

SIDE FR

 2
Common parts
90150-50003
90150-50031
90179-05095
90179-06009
90179-06164
90541-10009
91515-40620
91521-40614
91521-40820
91525-40620
91665-40830
94220-00600
