RY21-JDPH (1982)
Toyota Toyoace
Production
Jan 1982
-
Jul 1985
Engine
12R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )12R

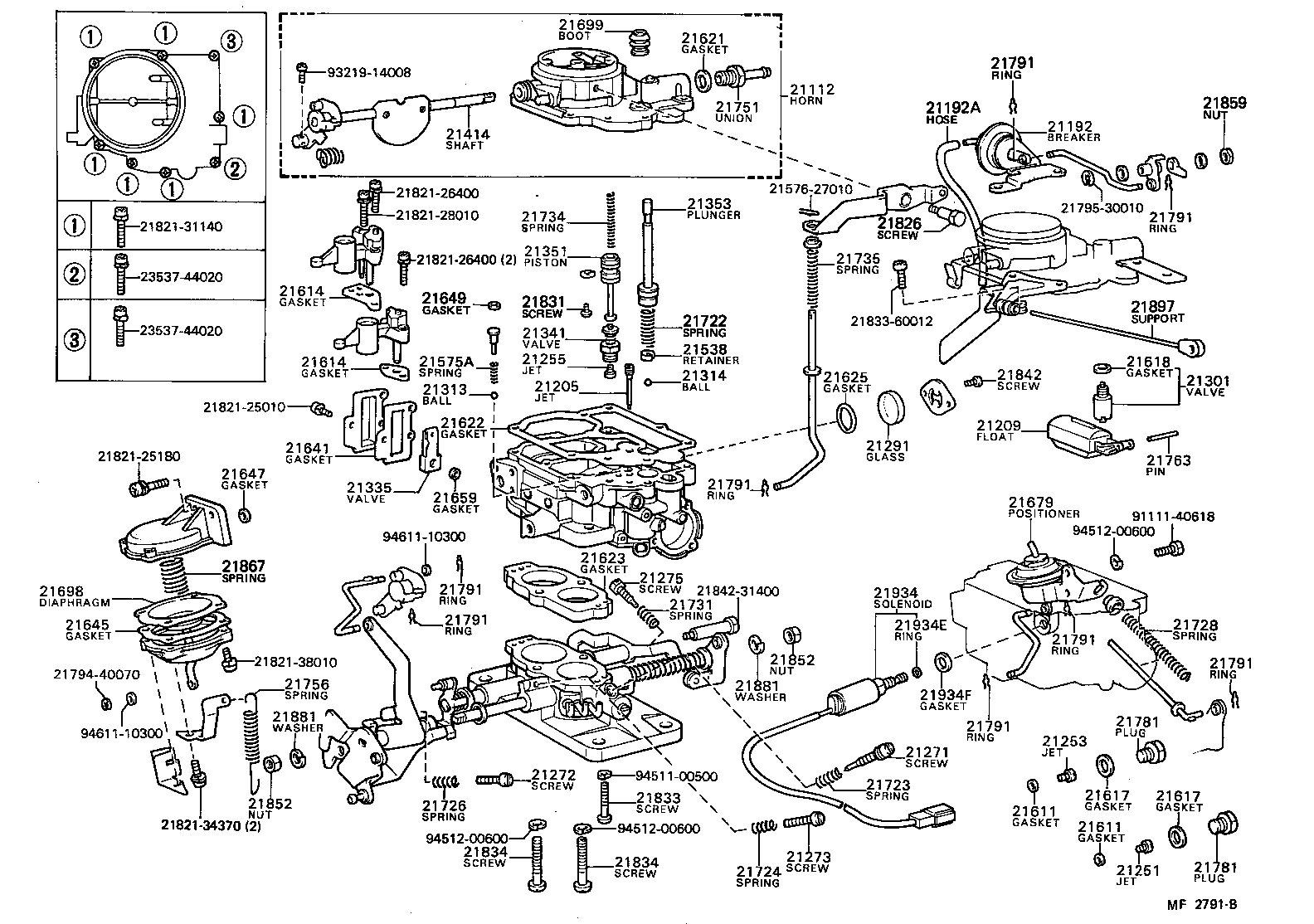

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21112 - HORN, AIR | ||||
| 21112-31570 |
12R..RY21 |
1 | ||
| 21192 - BREAKER | ||||
| 21192-31570 |
12R..RY21 |
1 | ||
| 21192A - HOSE, NO.1(FOR BREAKER) | ||||
| 21234-37020 |
12R..RY21 |
1 | ||
| 21205 - JET SUB-ASSY, SLOW | ||||
| 21205-15010 |
12R..RY2# ID=0.44 |
1 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-33080 |
12R..RY2# |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 90999-41097 |
12R..RY21 ID=0.97 |
1 | ||
| 21253 - JET, 2ND MAIN | ||||
| 90999-42162 |
12R..RY2# ID=1.62 |
1 | ||
| 90999-42165 |
12R..RY21 ID=1.65 |
1 | ||
| 21255 - JET, POWER | ||||
| 90999-43047 |
12R..RY21 ID=0.47 |
1 | ||
| 21271 - SCREW, IDLE ADJUSTING | ||||
| 21271-31590 |
12R..RY21 |
1 | ||
| 21271-26371 |
12R..RY21 |
1 | ||
| 21272 - SCREW, 1ST IDLE ADJUSTING | ||||
| 21273-30052 |
12R..RY2# |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21844-33010 |
12R..RY2# |
1 | ||
| 21275 - SCREW, ADJUSTING | ||||
| 21842-31280 |
12R..RY21 |
1 | ||
| 21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT) | ||||
| 21313-11020 |
12R..RY2# |
1 | ||
| 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) | ||||
| 21314-11020 |
12R..RY2# |
1 | ||
| 21341 - VALVE, POWER | ||||
| 21304-30010 |
12R..RY2# |
1 | ||
| 21351 - PISTON, POWER | ||||
| 21351-33080 |
12R..RY2# |
1 | ||
| 21353 - PLUNGER, PUMP | ||||
| 21353-33010 |
12R..RY2# |
1 | ||
| 21414 - SHAFT, CHOKE | ||||
| 21054-31570 |
12R..RY21 |
1 | ||
| 21538 - RETAINER, BALL CHECK | ||||
| 21538-31010 |
12R..RY2# |
1 | ||
| 21575A - SPRING(FOR STOPPER, B) | ||||
| 21864-26020 |
12R..RY2# |
1 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
12R..RY2# |
2 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
12R..RY2# |
2 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-33010 |
12R..RY2# 1ST |
1 | ||
| 21614-33080 |
12R..RY2# 2ND |
1 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-33010 |
12R..RY2# 1ST |
1 | ||
| 21614-33080 |
12R..RY2# 2ND |
1 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
12R..RY2# |
2 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
12R..RY2# |
2 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
12R..RY2# |
1 | ||
| 21622 - GASKET, AIR HORN | ||||
| 21622-26510 |
12R..RY2# |
1 | ||
| 21623 - GASKET, BODY FLANGE | ||||
| 21623-31400 |
12R..RY2# |
1 | ||
| 21625 - GASKET, LEVEL GAGE | ||||
| 21655-60200 |
12R..RY2# |
1 | ||
| 21641 - GASKET(FOR THERMOSTATIC VALVE COVER) | ||||
| 21641-23012 |
12R..RY2# |
1 | ||
| 21645 - GASKET, DIAPHRAGM, CAP | ||||
| 21645-33080 |
12R..RY2# |
1 | ||
| 21647 - GASKET, DIAPHRAGM HOUSING CAP | ||||
| 21649-33080 |
12R..RY2# |
1 | ||
| 21649 - GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER) | ||||
| 21641-33011 |
12R..RY2# |
1 | ||
| 21659 - RING, O(FOR THERMOSTATIC VALVE) | ||||
| 21641-24030 |
12R..RY2# |
1 | ||
| 21679 - POSITIONER | ||||
| 21679-31570 |
12R..RY21 |
1 | ||
| 21699 - BOOT(FOR PUMP PLUNGER) | ||||
| 21699-28150 |
12R..RY21 |
1 | ||
| 21722 - SPRING, PUMP DAMPING | ||||
| 21722-22010 |
12R..RY2# |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-21030 |
12R..RY2# |
1 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21726-40010 |
12R..RY2# |
1 | ||
| 21726 - SPRING, 1ST IDLE ADJUSTING | ||||
| 21723-21030 |
12R..RY2# |
1 | ||
| 21728 - SPRING, THROTTLE VALVE RETURN | ||||
| 21864-31400 |
12R..RY2# |
1 | ||
| 21731 - SPRING, DASH POT OR POSITIONER ADJUSTING | ||||
| 21726-40010 |
12R..RY21 |
1 | ||
| 21734 - SPRING, POWER PISTON | ||||
| 21734-22050 |
12R..RY2# |
1 | ||
| 21735 - SPRING, PUMP ARM | ||||
| 21735-21032 |
12R..RY2# |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 21751-24290 |
12R..RY2# |
1 | ||
| 21756 - SPRING, BACK(FOR THROTTLE SHAFT) | ||||
| 21756-31400 |
12R..RY2# |
1 | ||
| 21763 - PIN, FLOAT LEVER | ||||
| 21763-26350 |
12R..RY2# |
1 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-15230 |
12R..RY21 |
2 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-15230 |
12R..RY21 |
2 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
12R..RY2# |
6 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
12R..RY2# |
6 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
12R..RY2# |
6 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
12R..RY2# |
6 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
12R..RY2# |
6 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
12R..RY2# |
6 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
12R..RY2# |
6 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
12R..RY2# |
6 | ||
| 21826 - SCREW, PUMP ARM SET | ||||
| 21826-31012 |
12R..RY2# |
1 | ||
| 21831 - SCREW, POWER PISTON STOP | ||||
| 21821-15060 |
12R..RY21 |
1 | ||
| 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) | ||||
| 21824-31400 |
12R..RY2# |
2 | ||
| 21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET) | ||||
| 21842-33010 |
12R..RY2# |
2 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
12R..RY2# |
2 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
12R..RY2# |
2 | ||
| 21859 - NUT, CHOKE SHAFT SET | ||||
| 21859-21030 |
12R..RY2# |
1 | ||
| 21867 - SPRING, DIAPHRAGM | ||||
| 21867-31280 |
12R..RY2# |
1 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
12R..RY2# |
2 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
12R..RY2# |
2 | ||
| 21897 - SUPPORT, FRONT(FOR CHOKE SHAFT) | ||||
| 21897-31300 |
12R..RY21 |
1 | ||
| 21934E - RING, O(FOR SOLENOID VALVE) | ||||
| 21655-44101 |
12R..RY2# |
1 | ||
| 21934F - GASKET | ||||
| 21617-10010 |
12R..RY2# |
1 | ||
| Common parts | ||||
| 21576-27010 | ||||
| 21794-40070 | ||||
| 21795-30010 | ||||
| 21821-25010 | ||||
| 21821-25180 | ||||
| 21821-26400 | ||||
| 21821-28010 | ||||
| 21821-31140 | ||||
| 21821-34370 | ||||
| 21821-38010 | ||||
| 21833-60012 | ||||
| 21842-31400 | ||||
| 23537-44020 | ||||
| 91111-40618 | ||||
| 93219-14008 | ||||
| 94511-00500 | ||||
| 94512-00600 | ||||
| 94611-10300 | ||||
