RY21-JDLT (1982)

Toyota Toyoace

Production Jan 1982 - Jul 1985
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )12R

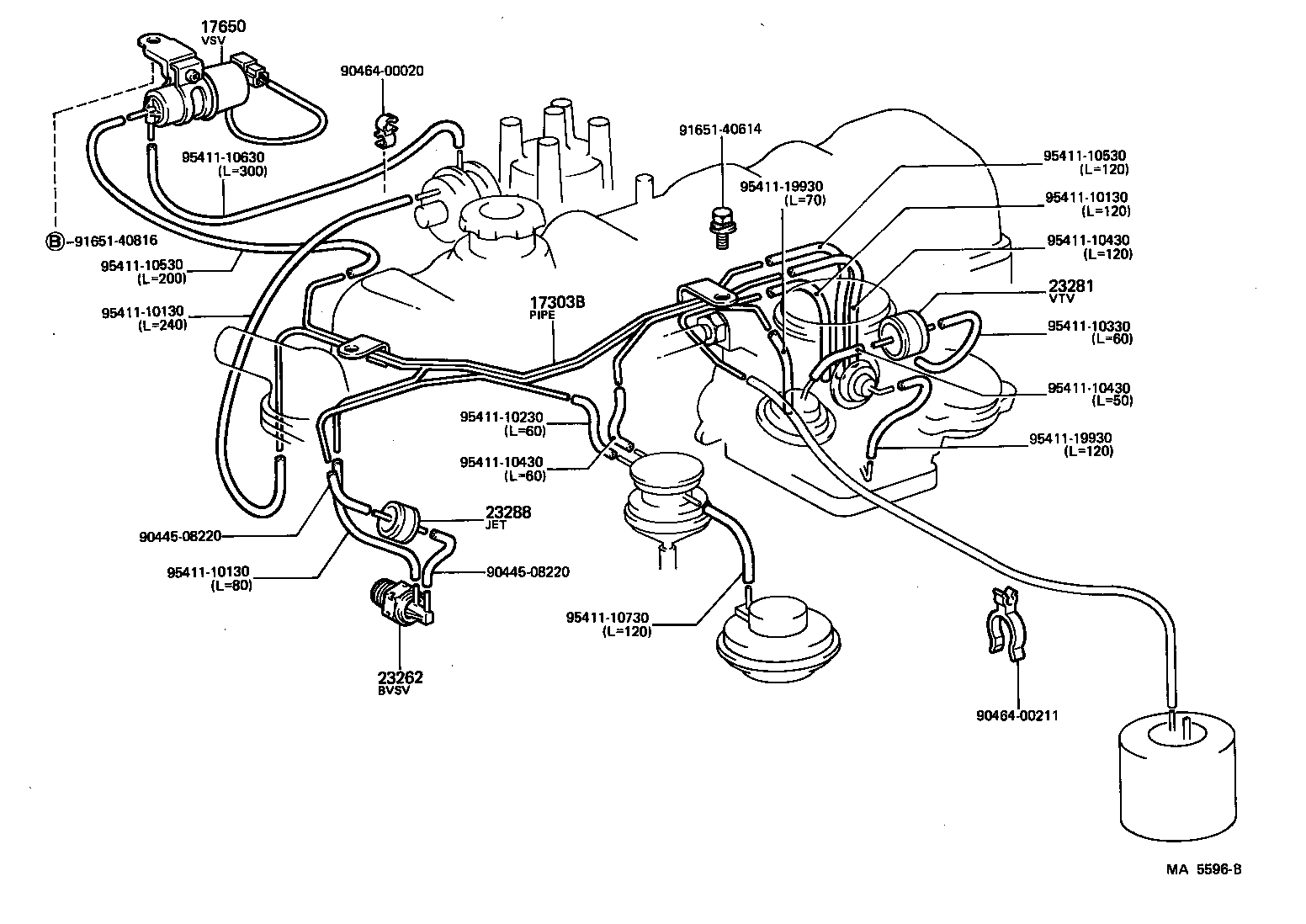

Click highlighted areas on diagram

diagram 17303B 17650 23262 23281 23288 9044508220 9044508220 9046400020 9046400211 9165140614 9165140816 9541110130 9541110130 9541110130 9541110230 9541110330 9541110430 9541110430 9541110430 9541110530 9541110530 9541110630 9541110730 9541119930 9541119930
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-31030

12R..RY21

 1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-25010

12R..RY2#

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05041

12R..RY21

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01042

12R..RY21

 1
23288 - JET, NO.1
90925-04004

12R..RY21

 1
Common parts
90445-08220
90464-00020
90464-00211
91651-40614
91651-40816
95411-10130
95411-10230
95411-10330
95411-10430
95411-10530
95411-10630
95411-10730
95411-19930
