RY21-JDLHT3 (1982)
Toyota Toyoace
(7903-8308)L

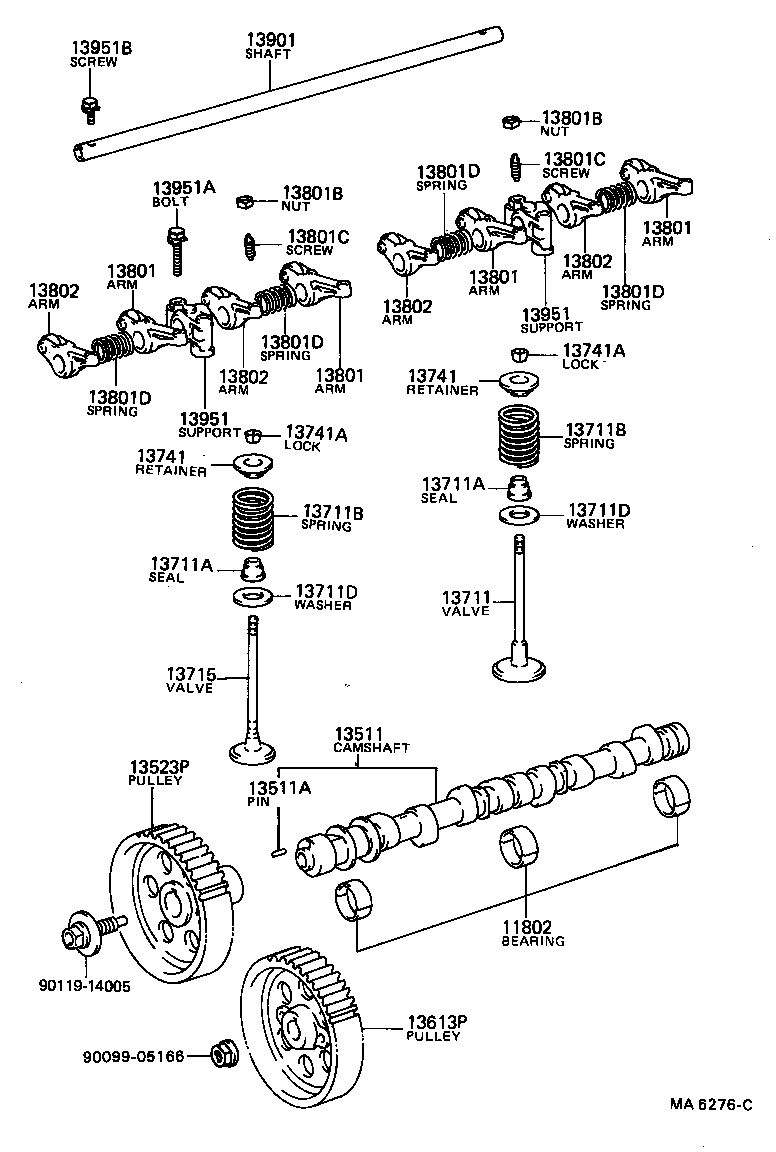

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11802 - BEARING SET, CAMSHAFT | ||||
| 11802-54010 |
L,2L..LY2#,3# STD,STD |
1 | ||
| 11803-54010 |
L,2L..LY2#,3# U/S 0.125,U/S 0.125 |
1 | ||
| 11802-31010 |
12R..RY2# STD |
1 | ||
| 11804-54010 |
L,2L..LY2#,3# U/S 0.25,U/S 0.250 |
1 | ||
| 11804-31010 |
12R..RY2# U/S 0.25 |
1 | ||
| 11805-31010 |
12R..RY2# U/S 0.50 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13511-31020 |
12R..RY2# |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13511-31020 |
12R..RY2# |
1 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90250-05121 |
L,2L..LY2#,3# 長さ=15,外径=5 |
1 | ||
| 13523A - KEY, WOODRUFF(FOR TIMING GEAR) | ||||
| 95161-10519 |
12R,5R..RY2#,3# |
1 | ||
| 13523B - WASHER, PLATE(FOR TIMING GEAR) | ||||
| 90201-08120 |
12R..RY2# |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-54020 |
L,2L..LY2#,3# N=42 |
1 | ||
| 13613P - PULLEY, INJECTION PUMP DRIVE | ||||
| 13613-54020 |
L,2L..LY2#,3# N=42 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-31050 |
12R..RY2# |
4 | ||
| 13711-54010 |
L,2L..LY2#,3# |
4 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02033 |
12R..RY2# |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02033 |
12R..RY2# |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-44002 |
L,2L..LY2#,3# WD=4.35,CW=6.25 |
8 | ||
| 90501-45005 |
12R..RY2# WD=4.5,CW=6.25 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-44002 |
L,2L..LY2#,3# WD=4.35,CW=6.25 |
8 | ||
| 90501-45005 |
12R..RY2# WD=4.5,CW=6.25 |
8 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-15387 |
12R..RY2# |
8 | ||
| 90201-20579 |
L,2L..LY2#,3# |
8 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-15387 |
12R..RY2# |
8 | ||
| 90201-20579 |
L,2L..LY2#,3# |
8 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-31070 |
12R..RY2# |
4 | ||
| 13715-54010 |
L,2L..LY2#,3# |
4 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-54010 |
L,2L..LY2#,3# |
8 | ||
| 13741-25012 |
12R..RY2# |
8 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-54010 |
L,2L..LY2#,3# |
8 | ||
| 13741-25012 |
12R..RY2# |
8 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03014 |
12R..RY2# |
16 | ||
| 90913-03016 |
L,2L..LY2#,3# |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03014 |
12R..RY2# |
16 | ||
| 90913-03016 |
L,2L..LY2#,3# |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-31022 |
12R..RY2# |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-31022 |
12R..RY2# |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-31022 |
12R..RY2# |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-31022 |
12R..RY2# |
4 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90170-08210 |
L,2L..LY2#,3# |
8 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90170-08210 |
L,2L..LY2#,3# |
8 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90913-05013 |
12R,5R..RY2#,3# |
8 | ||
| 90913-05020 |
12R,5R..RY21,32 |
8 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90913-05013 |
12R,5R..RY2#,3# |
8 | ||
| 90913-05020 |
12R,5R..RY21,32 |
8 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
12R,5R..RY2#,3# FR & RR,WD=1.6,CW=7.5 |
2 | ||
| 90501-16098 |
12R,5R..RY2#,3# CTR,WD=1.6,CW=9 |
1 | ||
| 90501-16163 |
L,2L..LY2#,3# WD=1.6,CW=7.5 |
4 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
12R,5R..RY2#,3# FR & RR,WD=1.6,CW=7.5 |
2 | ||
| 90501-16098 |
12R,5R..RY2#,3# CTR,WD=1.6,CW=9 |
1 | ||
| 90501-16163 |
L,2L..LY2#,3# WD=1.6,CW=7.5 |
4 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
12R,5R..RY2#,3# FR & RR,WD=1.6,CW=7.5 |
2 | ||
| 90501-16098 |
12R,5R..RY2#,3# CTR,WD=1.6,CW=9 |
1 | ||
| 90501-16163 |
L,2L..LY2#,3# WD=1.6,CW=7.5 |
4 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
12R,5R..RY2#,3# FR & RR,WD=1.6,CW=7.5 |
2 | ||
| 90501-16098 |
12R,5R..RY2#,3# CTR,WD=1.6,CW=9 |
1 | ||
| 90501-16163 |
L,2L..LY2#,3# WD=1.6,CW=7.5 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-31022 |
12R..RY2# |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-31022 |
12R..RY2# |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-31022 |
12R..RY2# |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-31022 |
12R..RY2# |
4 | ||
| 13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13901-31020 |
12R..RY2# |
1 | ||
| 13901-54010 |
L,2L..LY2#,3# |
1 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-31020 |
12R..RY2# |
1 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-31020 |
12R..RY2# |
1 | ||
| 13951A - BOLT(FOR ROCKER SUPPORT SET) | ||||
| 90119-08191 |
L,2L..LY2#,3# *8-1.25PX55-30 |
4 | ||
| 90910-01010 |
12R..RY2# *8-1.25PX69.5-16 |
4 | ||
| 13951B - SCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK) | ||||
| 90151-40010 |
12R..RY2# |
1 | ||
| 91611-60620 |
L,2L..LY2#,3# |
2 | ||
| Common parts | ||||
| 90099-05166 | ||||
| 90119-14005 | ||||
| 91511-61435 | ||||
(8308- )L,2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11802 - BEARING SET, CAMSHAFT | ||||
| 11802-54010 |
L,2L..LY2#,3# STD,STD |
1 | ||
| 11803-54010 |
L,2L..LY2#,3# U/S 0.125,U/S 0.125 |
1 | ||
| 11802-31010 |
12R..RY2# STD |
1 | ||
| 11804-54010 |
L,2L..LY2#,3# U/S 0.25,U/S 0.250 |
1 | ||
| 11804-31010 |
12R..RY2# U/S 0.25 |
1 | ||
| 11805-31010 |
12R..RY2# U/S 0.50 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13511-31020 |
12R..RY2# |
1 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90250-05121 |
L,2L..LY2#,3# 長さ=15,外径=5 |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-54020 |
L,2L..LY2#,3# N=42 |
1 | ||
| 13613P - PULLEY, INJECTION PUMP DRIVE | ||||
| 13613-54020 |
L,2L..LY2#,3# N=42 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-31050 |
12R..RY2# |
4 | ||
| 13711-54010 |
L,2L..LY2#,3# |
4 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02033 |
12R..RY2# |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02033 |
12R..RY2# |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-44002 |
L,2L..LY2#,3# WD=4.35,CW=6.25 |
8 | ||
| 90501-45005 |
12R..RY2# WD=4.5,CW=6.25 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-44002 |
L,2L..LY2#,3# WD=4.35,CW=6.25 |
8 | ||
| 90501-45005 |
12R..RY2# WD=4.5,CW=6.25 |
8 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-15387 |
12R..RY2# |
8 | ||
| 90201-20579 |
L,2L..LY2#,3# |
8 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-15387 |
12R..RY2# |
8 | ||
| 90201-20579 |
L,2L..LY2#,3# |
8 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-31070 |
12R..RY2# |
4 | ||
| 13715-54010 |
L,2L..LY2#,3# |
4 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-54010 |
L,2L..LY2#,3# |
8 | ||
| 13741-25012 |
12R..RY2# |
8 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-54010 |
L,2L..LY2#,3# |
8 | ||
| 13741-25012 |
12R..RY2# |
8 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03014 |
12R..RY2# |
16 | ||
| 90913-03016 |
L,2L..LY2#,3# |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03014 |
12R..RY2# |
16 | ||
| 90913-03016 |
L,2L..LY2#,3# |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-31022 |
12R..RY2# |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-31022 |
12R..RY2# |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-31022 |
12R..RY2# |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-31022 |
12R..RY2# |
4 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90170-08210 |
L,2L..LY2#,3# |
8 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90170-08210 |
L,2L..LY2#,3# |
8 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90913-05013 |
12R,5R..RY2#,3# |
8 | ||
| 90913-05020 |
12R,5R..RY21,32 |
8 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90913-05013 |
12R,5R..RY2#,3# |
8 | ||
| 90913-05020 |
12R,5R..RY21,32 |
8 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
12R,5R..RY2#,3# FR & RR,WD=1.6,CW=7.5 |
2 | ||
| 90501-16098 |
12R,5R..RY2#,3# CTR,WD=1.6,CW=9 |
1 | ||
| 90501-16163 |
L,2L..LY2#,3# WD=1.6,CW=7.5 |
4 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
12R,5R..RY2#,3# FR & RR,WD=1.6,CW=7.5 |
2 | ||
| 90501-16098 |
12R,5R..RY2#,3# CTR,WD=1.6,CW=9 |
1 | ||
| 90501-16163 |
L,2L..LY2#,3# WD=1.6,CW=7.5 |
4 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
12R,5R..RY2#,3# FR & RR,WD=1.6,CW=7.5 |
2 | ||
| 90501-16098 |
12R,5R..RY2#,3# CTR,WD=1.6,CW=9 |
1 | ||
| 90501-16163 |
L,2L..LY2#,3# WD=1.6,CW=7.5 |
4 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
12R,5R..RY2#,3# FR & RR,WD=1.6,CW=7.5 |
2 | ||
| 90501-16098 |
12R,5R..RY2#,3# CTR,WD=1.6,CW=9 |
1 | ||
| 90501-16163 |
L,2L..LY2#,3# WD=1.6,CW=7.5 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-31022 |
12R..RY2# |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-31022 |
12R..RY2# |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-31022 |
12R..RY2# |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-31022 |
12R..RY2# |
4 | ||
| 13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13901-31020 |
12R..RY2# |
1 | ||
| 13901-54010 |
L,2L..LY2#,3# |
1 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-31020 |
12R..RY2# |
1 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-31020 |
12R..RY2# |
1 | ||
| 13951A - BOLT(FOR ROCKER SUPPORT SET) | ||||
| 90119-08191 |
L,2L..LY2#,3# *8-1.25PX55-30 |
4 | ||
| 90910-01010 |
12R..RY2# *8-1.25PX69.5-16 |
4 | ||
| 13951B - SCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK) | ||||
| 90151-40010 |
12R..RY2# |
1 | ||
| 91611-60620 |
L,2L..LY2#,3# |
2 | ||
| Common parts | ||||
| 90099-05166 | ||||
| 90119-14005 | ||||
