RY21-JDLHT (1982)

Toyota Toyoace

Production Jan 1982 - Jul 1985
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

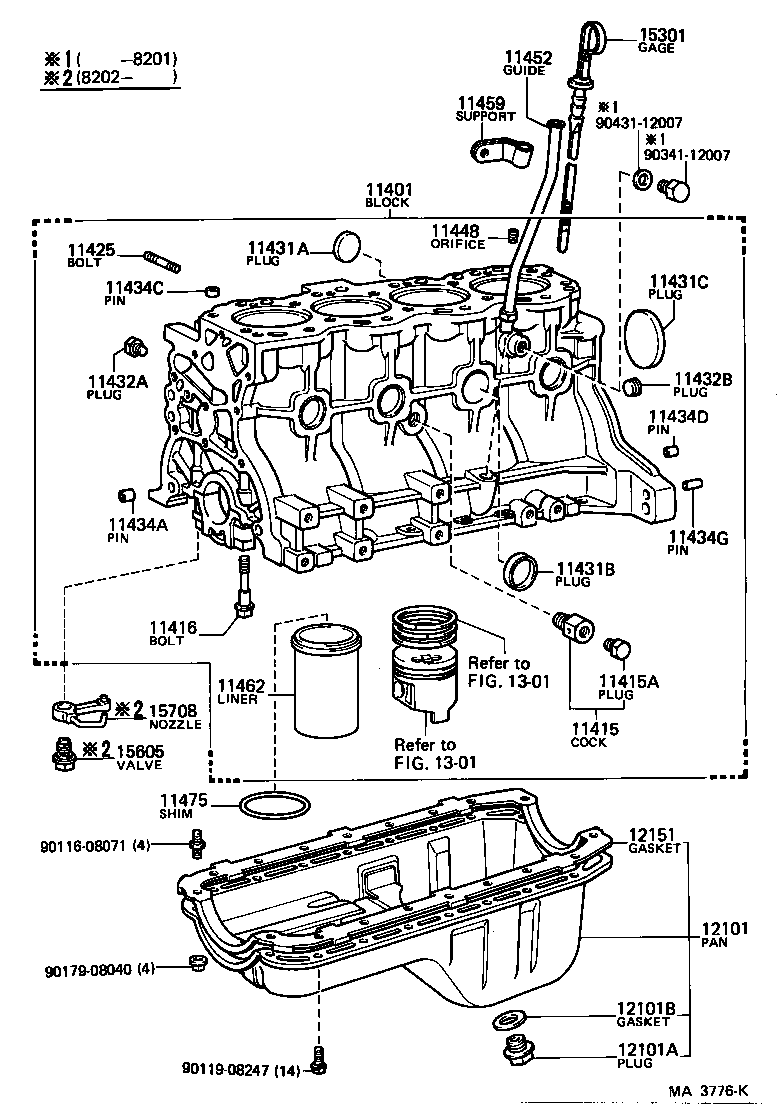

(7903-8304)L

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11425 11431A 11431B 11431C 11432A 11432B 11434A 11434C 11434D 11434G 11448 11452 11459 11462 11475 12101 12101A 12101B 12151 1301 1301 15301 15605 15708 9011608071 9011908247 9017908040 9034112007 9043112007
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-39127

12R..RY2#

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09070

12R..RY21

 1
96431-53828

12R,5R..RY21,32

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96431-23814

12R,5R..RY2#,3#

 1
96432-23814

12R,5R..RY21,32

 1
90910-09072

12R..RY21

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02064

12R..RY2#

*12-1.25PX62-21

 6
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-45000

12R..RY2#

OD=50

 3
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-43000

12R..RY2#

OD=30

 1
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-51025

12R,5R..RY2#,3#

 2
90345-51006

12R,5R..RY21,32

 2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-10192

12R..RY2#

長さ=22,外径=10,L=22,OD=10

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-31020

12R..RY2#

 1
12101 - PAN SUB-ASSY, OIL
12101-39245

12R..RY2#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

12R,5R..RY2#,3#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

12R,5R..RY21,32

 1
90430-18244

12R,5R..RY2#,3#

 1
12151 - GASKET, OIL PAN
12151-30010

12R..RY2#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-31050

12R..RY2#

 1
Common parts
90116-08071
90119-08247
90179-08040
90341-12007
90431-12007
Linked diagrams
1301

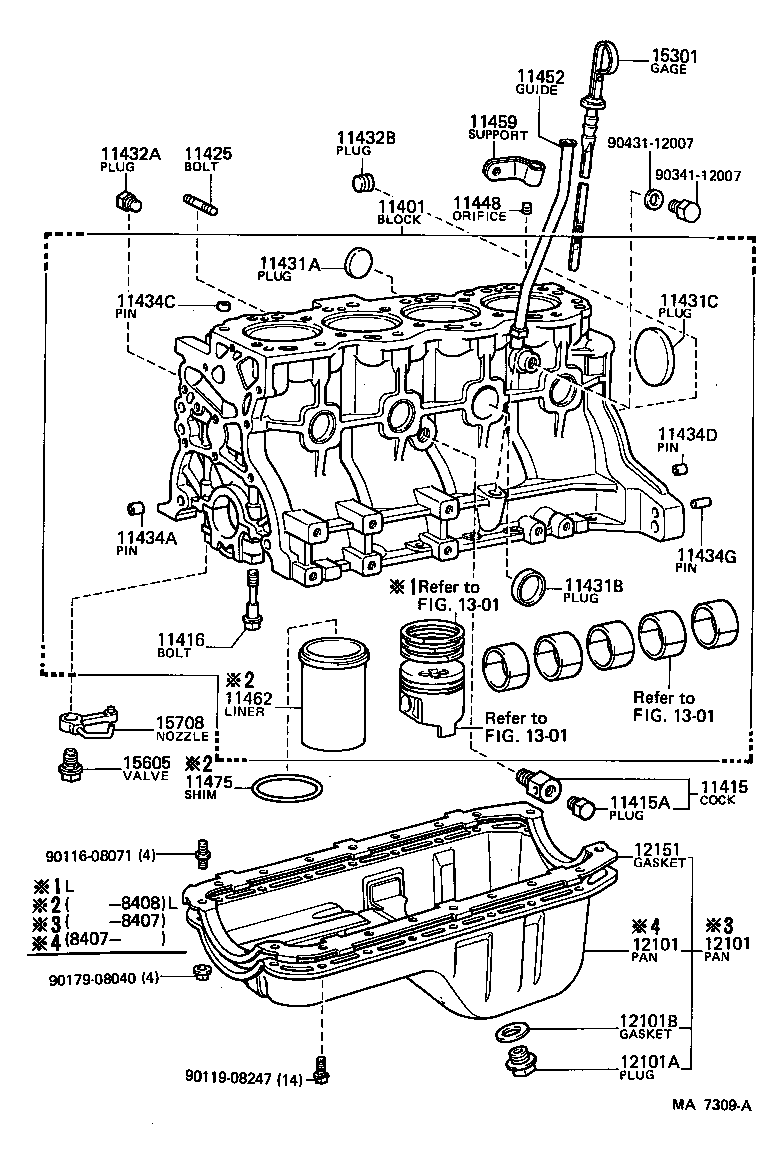

(8304- )L,2L

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11425 11431A 11431B 11431C 11432A 11432B 11434A 11434C 11434D 11434G 11448 11452 11459 11462 11475 12101 12101 12101A 12101B 12151 1301 1301 1301 15301 15605 15708 9011608071 9011908247 9017908040 9034112007 9043112007
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-39127

12R..RY2#

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09070

12R..RY21

 1
96431-53828

12R,5R..RY21,32

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96431-23814

12R,5R..RY2#,3#

 1
96432-23814

12R,5R..RY21,32

 1
90910-09072

12R..RY21

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02064

12R..RY2#

*12-1.25PX62-21

 6
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-45000

12R..RY2#

OD=50

 3
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-43000

12R..RY2#

OD=30

 1
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-51025

12R,5R..RY2#,3#

 2
90345-51006

12R,5R..RY21,32

 2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-10192

12R..RY2#

長さ=22,外径=10,L=22,OD=10

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-31020

12R..RY2#

 1
12101 - PAN SUB-ASSY, OIL
12101-39245

12R..RY2#

 1
12101 - PAN SUB-ASSY, OIL
12101-39245

12R..RY2#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

12R,5R..RY2#,3#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

12R,5R..RY21,32

 1
90430-18244

12R,5R..RY2#,3#

 1
12151 - GASKET, OIL PAN
12151-30010

12R..RY2#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-31050

12R..RY2#

 1
Common parts
90116-08071
90119-08247
90179-08040
90341-12007
90431-12007
Linked diagrams
1301
